GW-17
GLASS/WINDOW/MIRROR
Front Door Glass

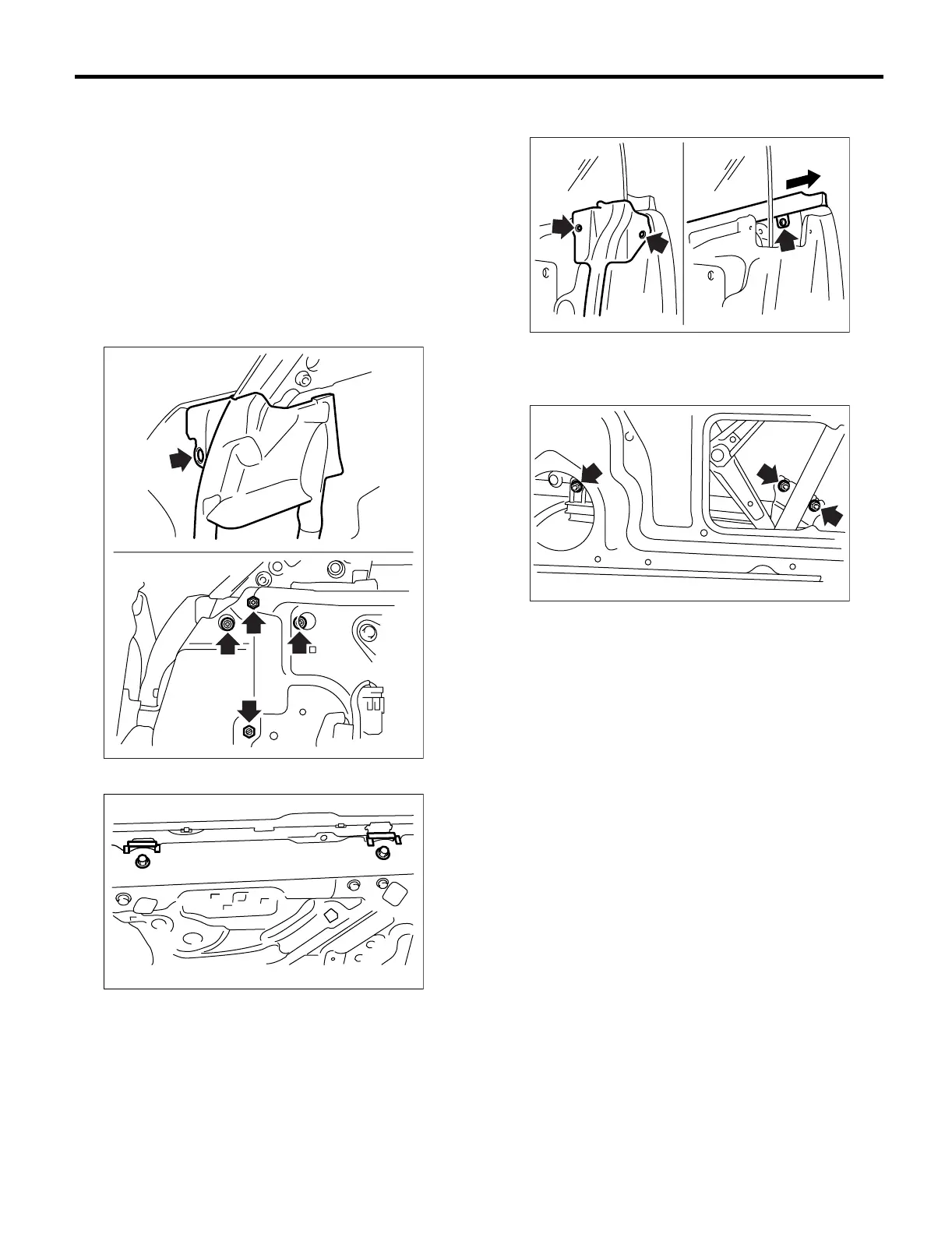

9. Front Door Glass
A: REMOVAL
1) Remove the front door trim. <Ref. to EI-35, RE-
MOVAL, Front Door Trim.>
2) Remove the front speaker. <Ref. to ET-6, RE-
MOVAL, Front Speaker.>
3) Remove the sealing cover. <Ref. to EB-13, RE-
MOVAL, Front Sealing Cover.>
4) Remove the outer mirror assembly. <Ref. to GW-
12, REMOVAL, Outer Mirror Assembly.>
5) Remove the front end of door weather strip and
gusset.
6) Remove the stabilizers.
7) Remove the rear end of door weather strip and
weather strip outer.
8) Operate the power window switch to move the
glass to position shown in the figure, and then re-
move the three nuts from service holes.
9) Take out the door glass.
NOTE:
• Do not turn the regulator in closing direction after
removal of the glass. Otherwise gear may be disen-
gaged.
• Avoid impact and damage to the glass.
GW-00013
GW-00014
GW-00015
GW-00017
To Next Page
