GW-18
GLASS/WINDOW/MIRROR
Front Door Glass
B: INSTALLATION
1) Install in the reverse order of removal.
CAUTION:
Make sure that the glass stay is placed securely
in sash.
2) Adjust the front door glass. <Ref. to GW-18, AD-
JUSTMENT, Front Door Glass.>
Tightening torque:
Refer to COMPONENT in General Descrip-
tion. <Ref. to GW-3, FRONT DOOR GLASS,
COMPONENT, General Description.> <Ref. to
GW-2, FIXED GLASS, COMPONENT, General
Description.>

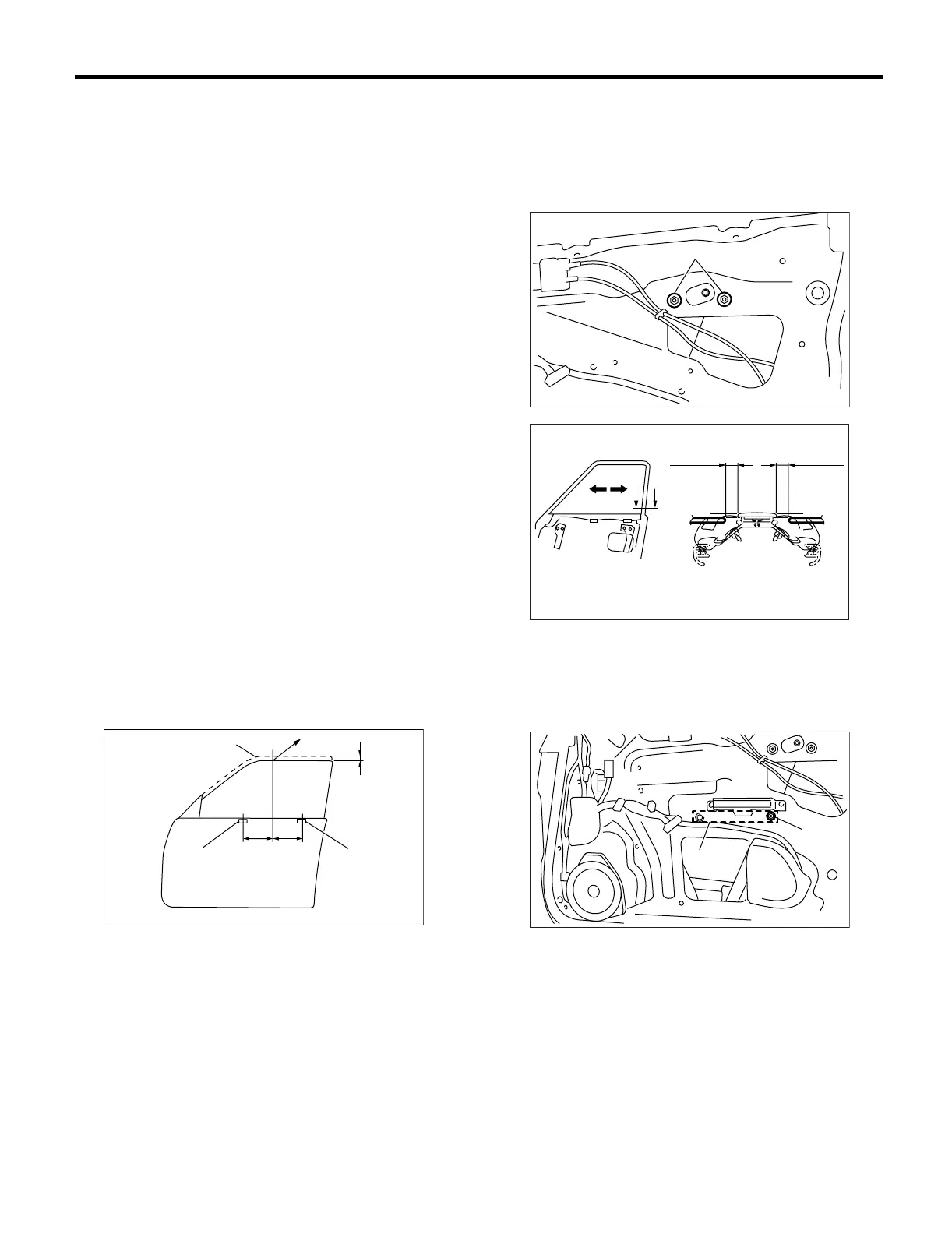

C: ADJUSTMENT
NOTE:
Before adjustment, ensure that all adjusting bolts of
stabilizer, upper stopper and sash are loose and
door glass is raised so that it is in contact with
weather strip.
1) Temporarily tighten one adjusting bolt on one side
of rear sash at the midpoint of slotted hole in the in-
ner panel.
2) Temporarily tighten the regulator B-channel in a
position at the top of slotted hole.
3) Lower the door glass 10 to 15 mm (0.39 to 0.59
in) from fully closed position. While applying out-
ward pressure of 45.0±5 N (4.6±0.5 kg, 11.0±1.1
lb) (F) to upper edge of glass above midpoint of two
outer stabilizers, press the inner stabilizer at pres-
sure of 25±5 N (2.5±0.5 kg, 5.5±1.1 lb) to the glass,
then secure it.
4) For adjustment of clearance between front glass
and center pillar cover, loosen the nuts (A), and
move the rear sash back and forward until clear-
ance becomes the value shown. (Clearance be-
tween upper side and lower side is within 1.5 mm
(0.059 in).)
5) For adjustment of upper and lower ends of cen-
ter pillar, loosen the adjusting nut (A) of B-channel
(B).
(1) Full close
(2) Stabilizer
(3) 10 — 15 mm (0.39 — 0.59 in)
(1) F
(2)
A = A
AA
(2)
(3)
GW-00063
(1) 12±1 mm (0.472±0.039 in)
GW-00019
(A)
AA
A-A
(1)
(1)
GW-00064
GW-00021
(A)
(B)
