Front Door Latch Assembly
6. Front Door Latch Assembly
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the front door trim. <Ref. to EI-35, RE-
MOVAL, Front Door Trim.>
3) Remove the sealing cover. <Ref. to EB-13, RE-
MOVAL, Front Sealing Cover.>
4) Remove the front inner remote. <Ref. to SL-22,
REMOVAL, Front Inner Remote.>

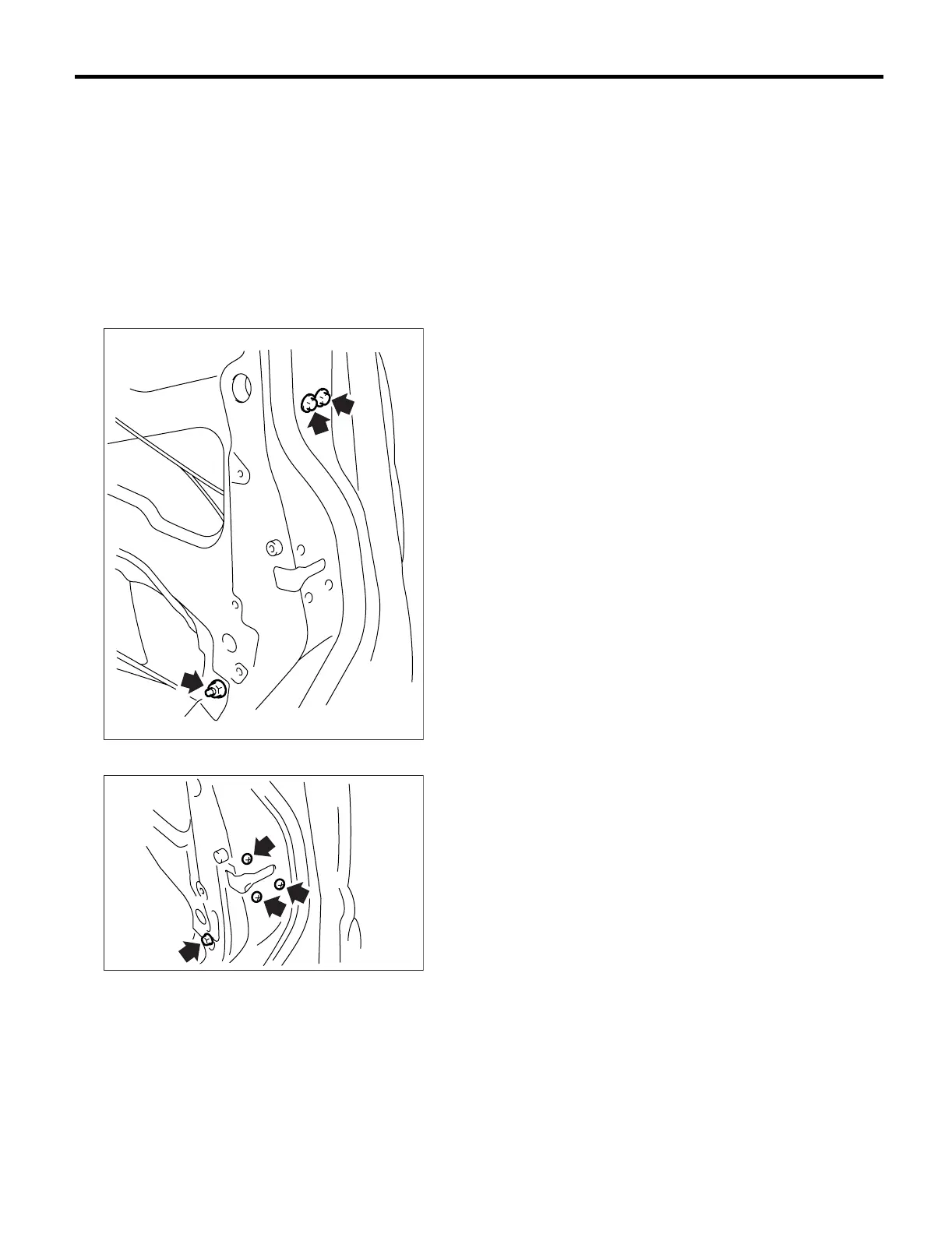

5) Remove two bolts and nut, and then remove the
guide rail.
6) Remove the three screws and bolt.
7) Remove the front door latch assembly, and then
disconnect the connector.
B: INSTALLATION
Install in the reverse order of removal.
NOTE:
Make sure the lock works properly after installation.
C: INSPECTION
1) Make sure the cable is not deformed.
2) Make sure the lever, rod and cable work smooth-
ly.
