LI-28
LIGHTING SYSTEM
Side Turn Signal Light
24.Side Turn Signal Light
A: REMOVAL
1) Disconnect the ground cable from battery.

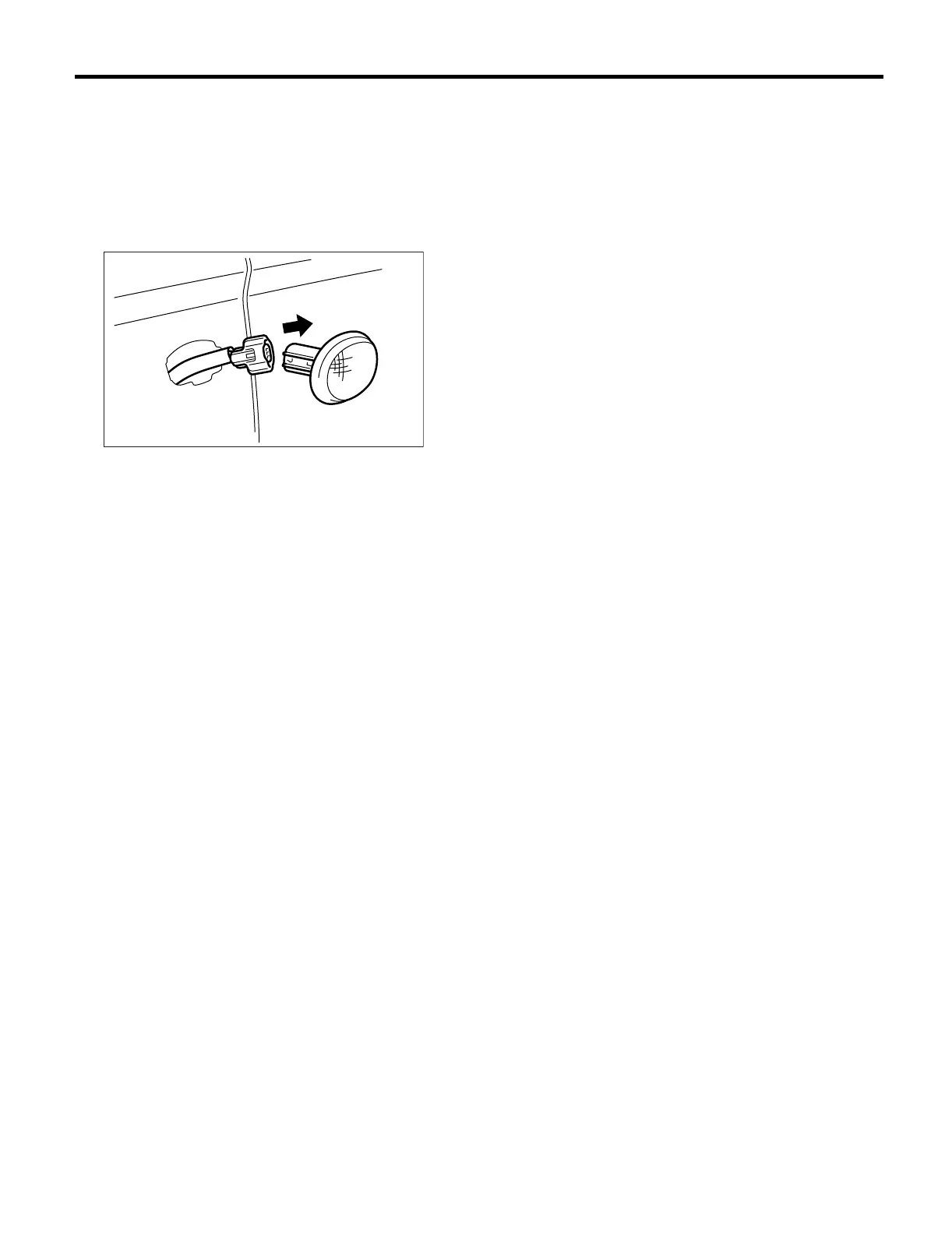

2) Pull out the light from body while pushing it in di-
rection of vehicle front.
3) Disconnect the harness connector and remove
the light.
B: INSTALLATION
Install in the reverse order of removal.
C: INSPECTION
1) Check the bulb for blow out using tester.
2) If NG, replace the side turn signal light assembly
with a new one.
LI-00067
