Subaru Forester 2004 - Combination Meter Assembly

IDI-10
INSTRUMENTATION/DRIVER INFO
Combination Meter Assembly
3. Combination Meter Assem-
bly
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Set the tilt steering at lowest position.
3) Remove the screws and detach meter visor.
4) Remove the screws of combination meter and pull
out the meter toward you.
5) Disconnect the connector in the upper area of
combination meter to remove meter.
CAUTION:
• Be careful not to damage the meter or instru-
ment panel.
• Pay particular attention to avoid damaging
the meter glass.
B: INSTALLATION
Install in the reverse order of removal.
CAUTION:
• Make sure that electrical connector is connected
securely.
• Make sure that each meter operates normally.

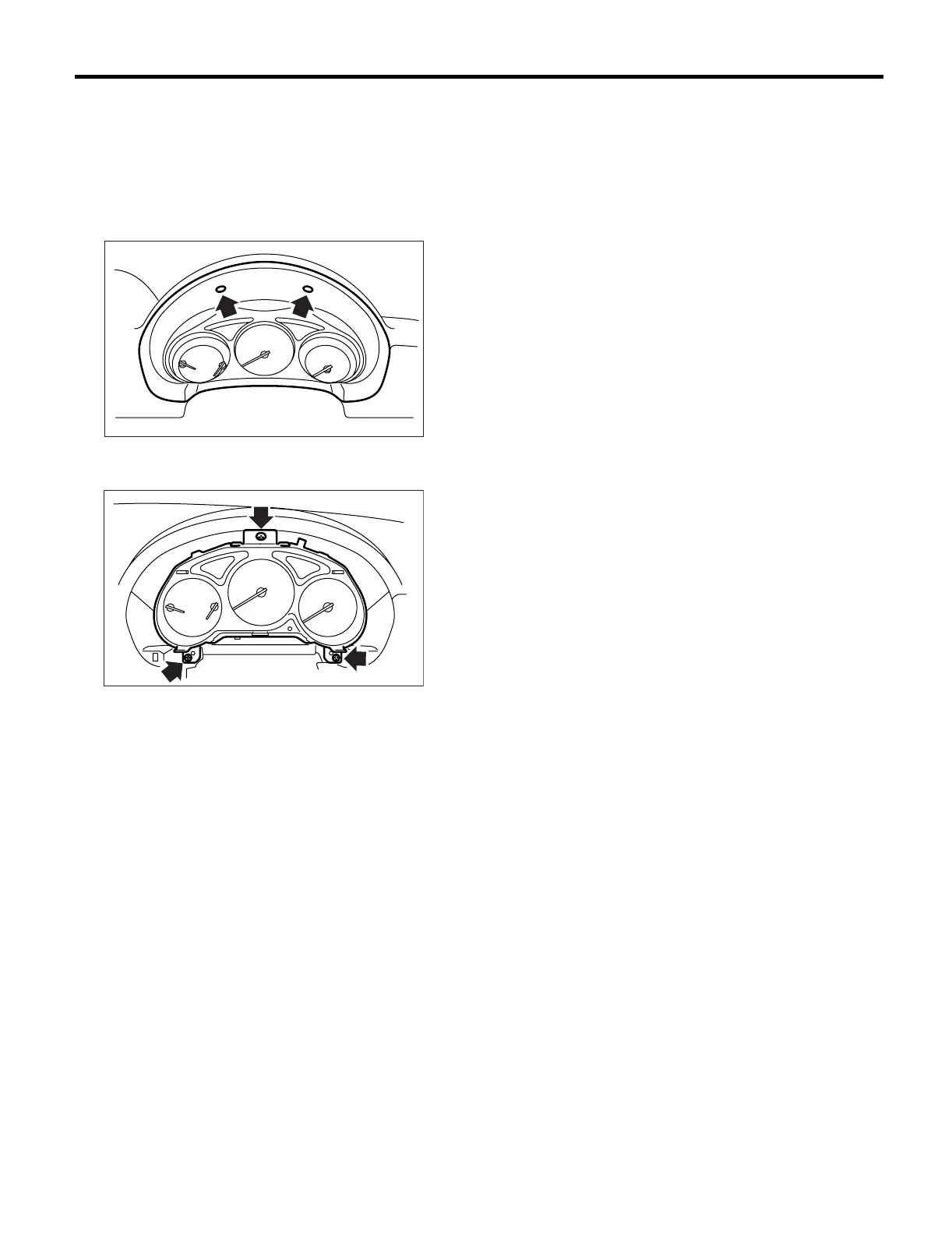

IDI00001
IDI00002
