EXTERIOR/INTERIOR TRIM
Front Grille
2. Front Grille
A: REMOVAL
1) Open the front hood.
2) Remove the two upper clips of front grille side.
Slide the front grille side to vehicle outside, then re-
move the four lower hooks (A) to remove front grille
side.

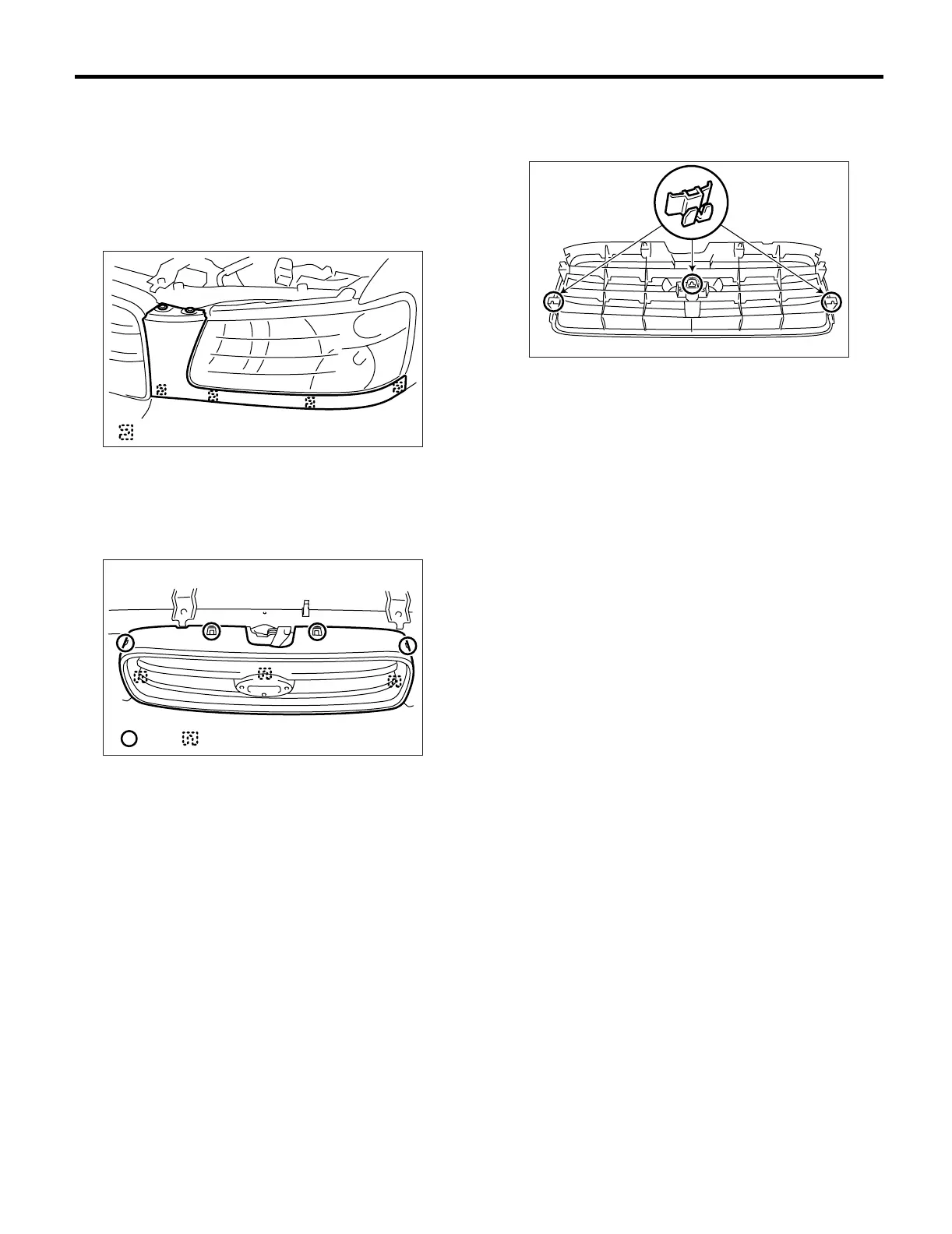

3) Remove the four upper clips (A) of front grille,
then pull the front grille up and remove the three
hooks (B) to remove front grille.
B: INSTALLATION
1) Remove the three hooks remained on body dur-
ing removal, then install them to front grille.
NOTE:
Make sure that the clip direction is correct.
2) Install the front grille to body.
3) Install the front grille side.
(A) Hook
(A) Clip
(B) Hook
EI-00019
: (A)
EI-00020
: (A) : (B)
EI-00021
