EI-39
EXTERIOR/INTERIOR TRIM
Console Box
15.Console Box

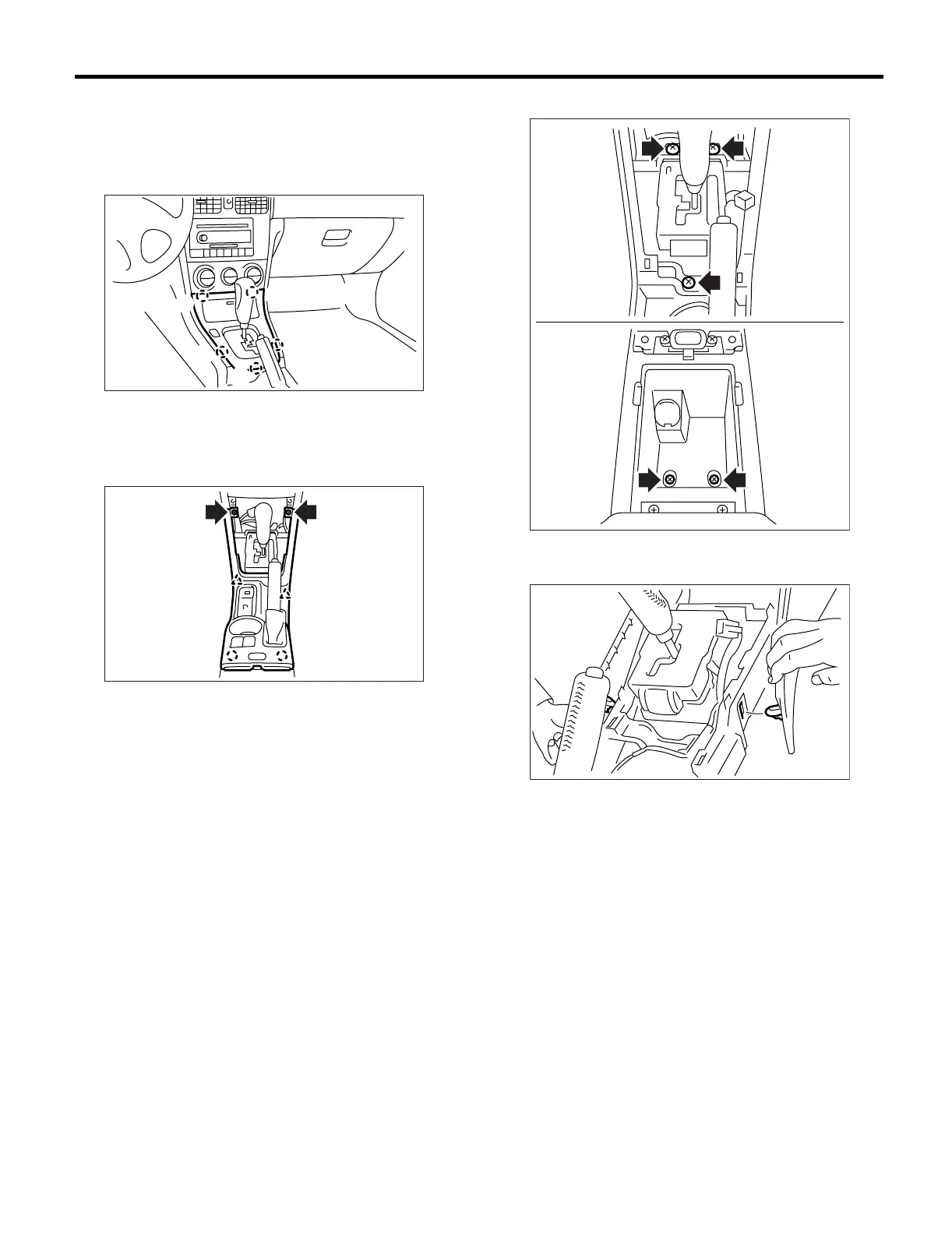

A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the console front cover.
3) Remove the shift knob (MT model).
4) Loosen the screws to remove console cover.
5) Loosen the screws.
6) Remove the hook pawl of console side panel to
remove console box.
B: INSTALLATION
Install in the reverse order of removal.
(A) Hook pawl
(A) Hook pawl
(B) Clip
(A)
(A)
EI-00726
(A)
(A)
(A)
EI-00060
(A) (A)
(B)
(B)
EI-00061
EI-00062
