Subaru Forester 2004 - General Description

AB-2
AIRBAG SYSTEM
General Description
1. General Description
A: COMPONENT

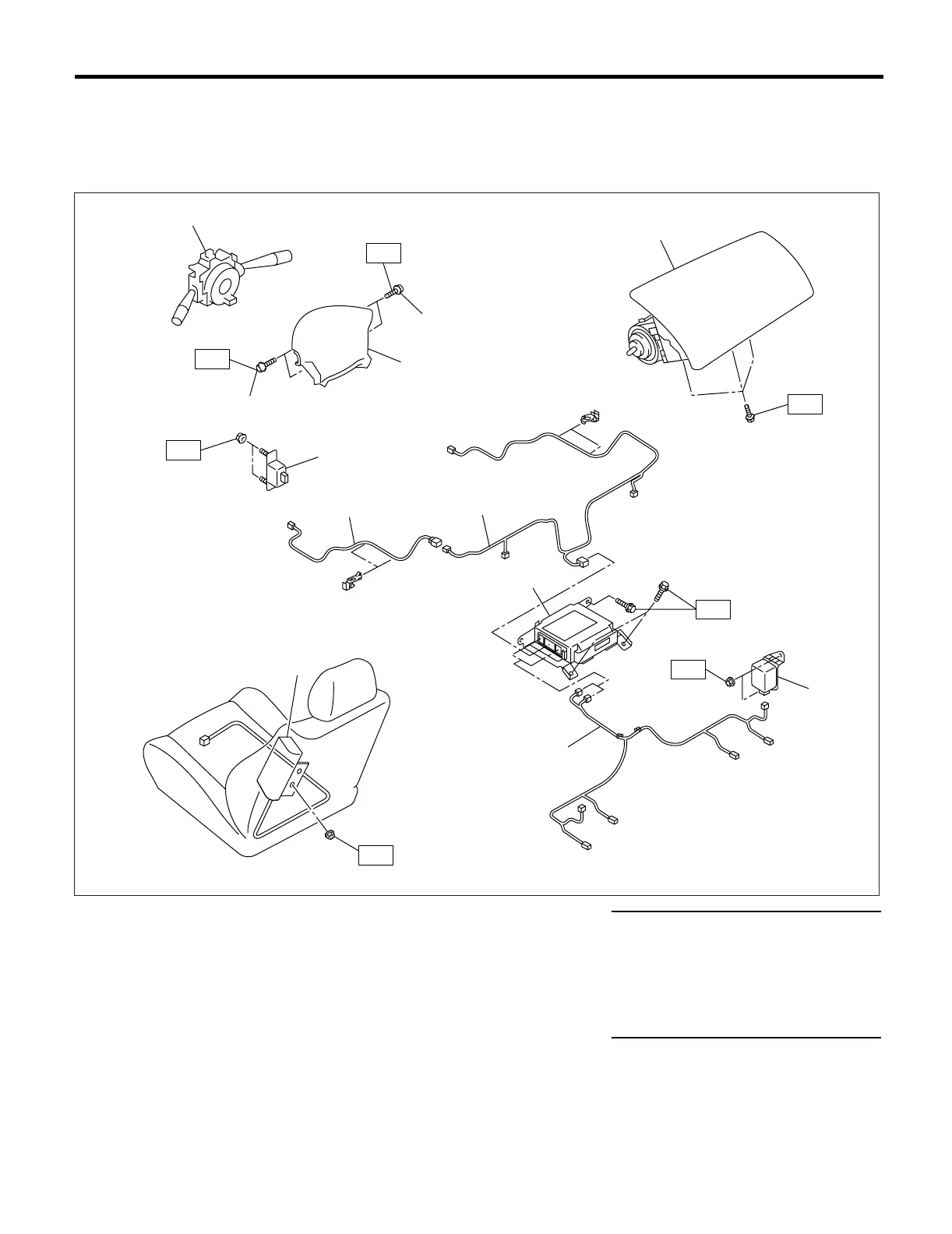

1. SRS AIRBAG
(1) Combination switch ASSY with roll
connector
(5) Airbag control module Tightening torque: N·m (kgf-m, ft-lb)
(6) Side airbag sensor T1: 5.9 (0.59, 4.4)
(2)
TORX
®
bolt T30
(7) Wiring harness rear
T2: 7.4 (0.75, 5.4)
(3) Airbag module ASSY (Driver’s
side)
(8) Side airbag module T3: 10 (1.0, 7.2)
(9) Wiring harness CTR T4: 20 (2.0, 14.5)
(4) Airbag module ASSY (Passen-
ger’s side)
(10) Wiring harness front T5: 25 (2.5, 18.1)
(11) Front sub sensor
AB-00685
T3
T2
T5
T3
T4
(2)
(4)
(3)
(1)
(2)
(10)
(11)
(9)
(7)
(6)
(5)
(8)
T2
T1
