LI-29
LIGHTING SYSTEM
Spot Map Light
25.Spot Map Light
A: REMOVAL
1) Disconnect the ground cable from battery.

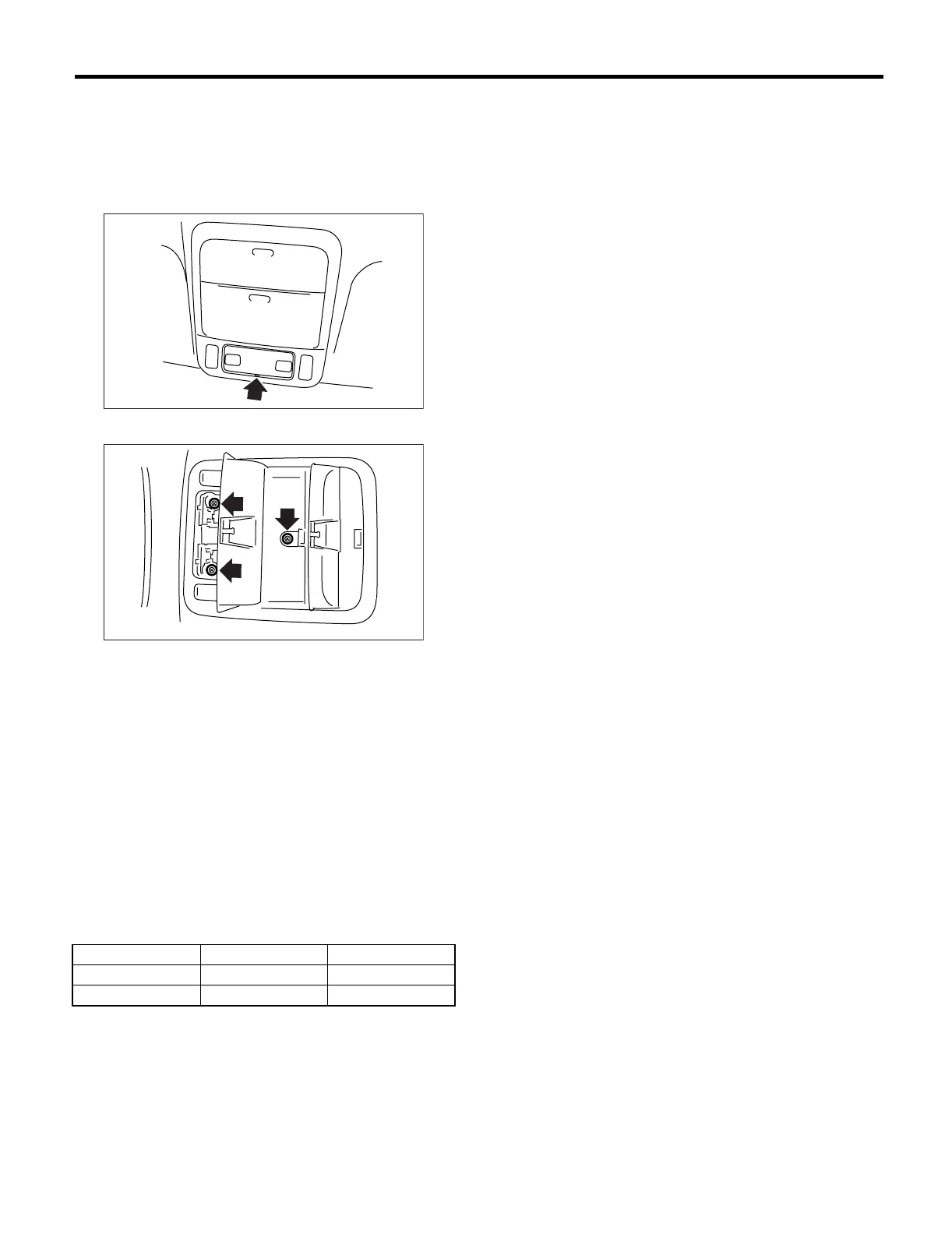

2) Insert a flat tip screwdriver to the slot of lens, and
then pry the lens to remove.
3) Remove the spot map light installation screws.
4) Disconnect the harness connectors and remove
the spot map light.
B: INSTALLATION
Install in the reverse order of removal.
C: INSPECTION
1. SPOT MAP LIGHT BULB
1) Visually check the bulb for blow out.
2) Check the bulb specification. <Ref. to LI-2, SPEC-
IFICATION, General Description.>
3) If NG, replace the bulb with a new one.
2. SPOT MAP LIGHT SWITCH
Measure the spot map light switch resistance.
Switch position Terminal No. Standard
OFF — More than 1 MΩ
ON 1 and 2 18±5.4 Ω
LI-00038
LI-00039
