AB-27
AIRBAG SYSTEM (DIAGNOSTIC)
Airbag Connector

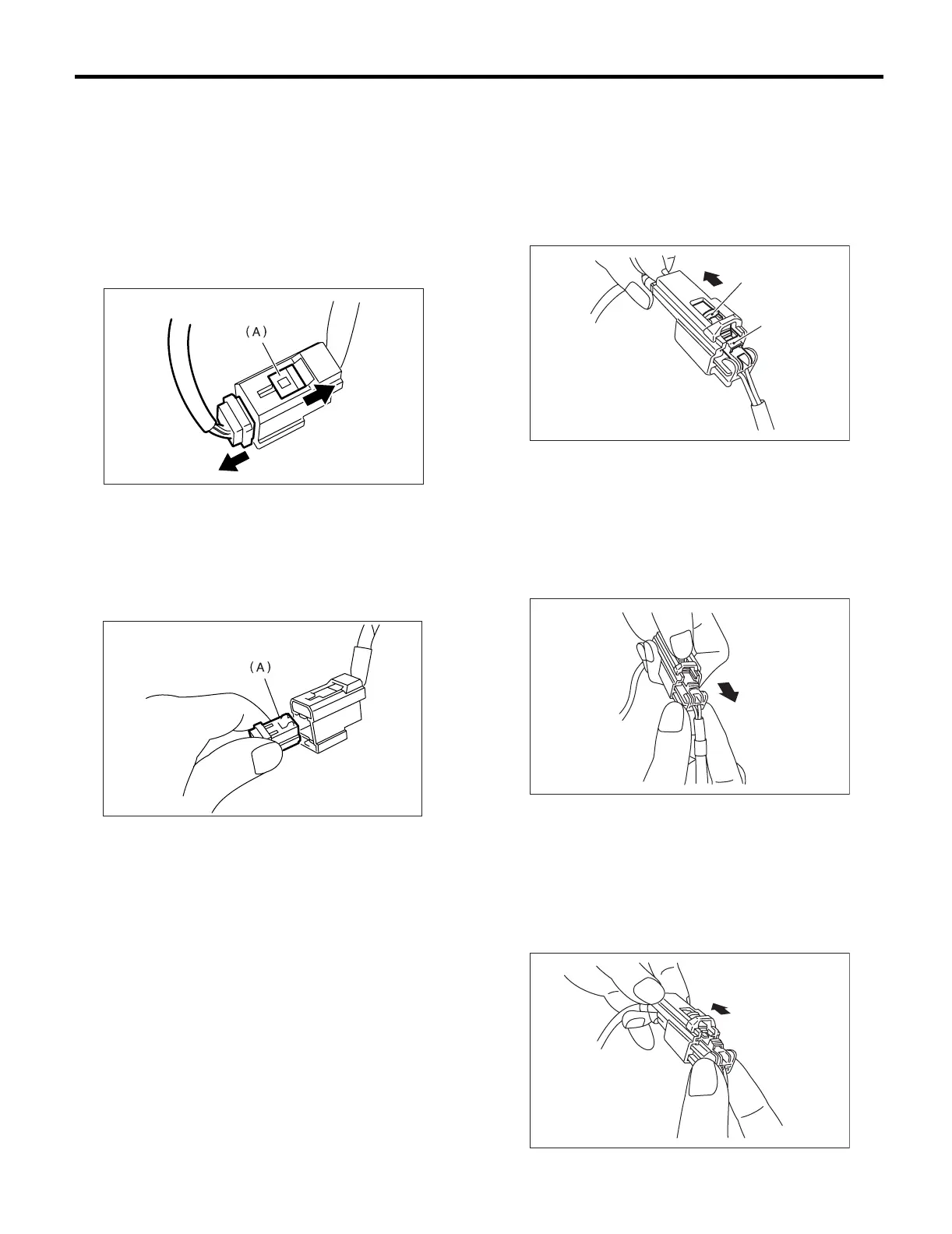

6. Airbag Connector
A: OPERATION
1. POWER SUPPLY
1) How to disconnect:
(1) Move the slide lock (A) in the direction of the
arrow.
(2) Pull the female connector in the direction of
the arrow with slide lock (A) moved.
CAUTION:
When pulling, be sure to hold onto the connec-
tor and not the wire.
2) How to connect:
Holding the connector (A), and push it in carefully
until a connecting sound is heard.
CAUTION:
Be sure to insert the connector in until it locks.
Then pull on it gently to make sure that it is
locked.
2. DRIVER’S AIRBAG (AIRBAG MAIN HAR-
NESS AND ROLL CONNECTOR), SIDE AIR-
BAG AND PRETENSIONER
1) How to disconnect:
(1) Push the lock arm (A).
(2) With the lock arm (A) pushed in, move the
slide lock (B) in the direction of the arrow.
(3) With the slide lock pulled, remove the lock
arm to its original position, and then pull in the
direction of the arrow and separate the connec-
tor.
CAUTION:
When pulling, be sure to hold onto the connec-
tor and not the wire.
2) How to connect:
Holding the connector, and push it in carefully until
a connecting sound is heard.
CAUTION:
Be sure to insert the connector in until it locks.
Then pull on it gently to make sure that it is
locked.
AB-00015
AB-00016
AB-00017
(A)
(B)
AB-00018
AB-00019
To Next Page
