SL-31
SECURITY AND LOCK
Rear Gate Latch Assembly
13.Rear Gate Latch Assembly
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the rear gate trim. <Ref. to EI-48, RE-
MOVAL, Rear Gate Trim.>

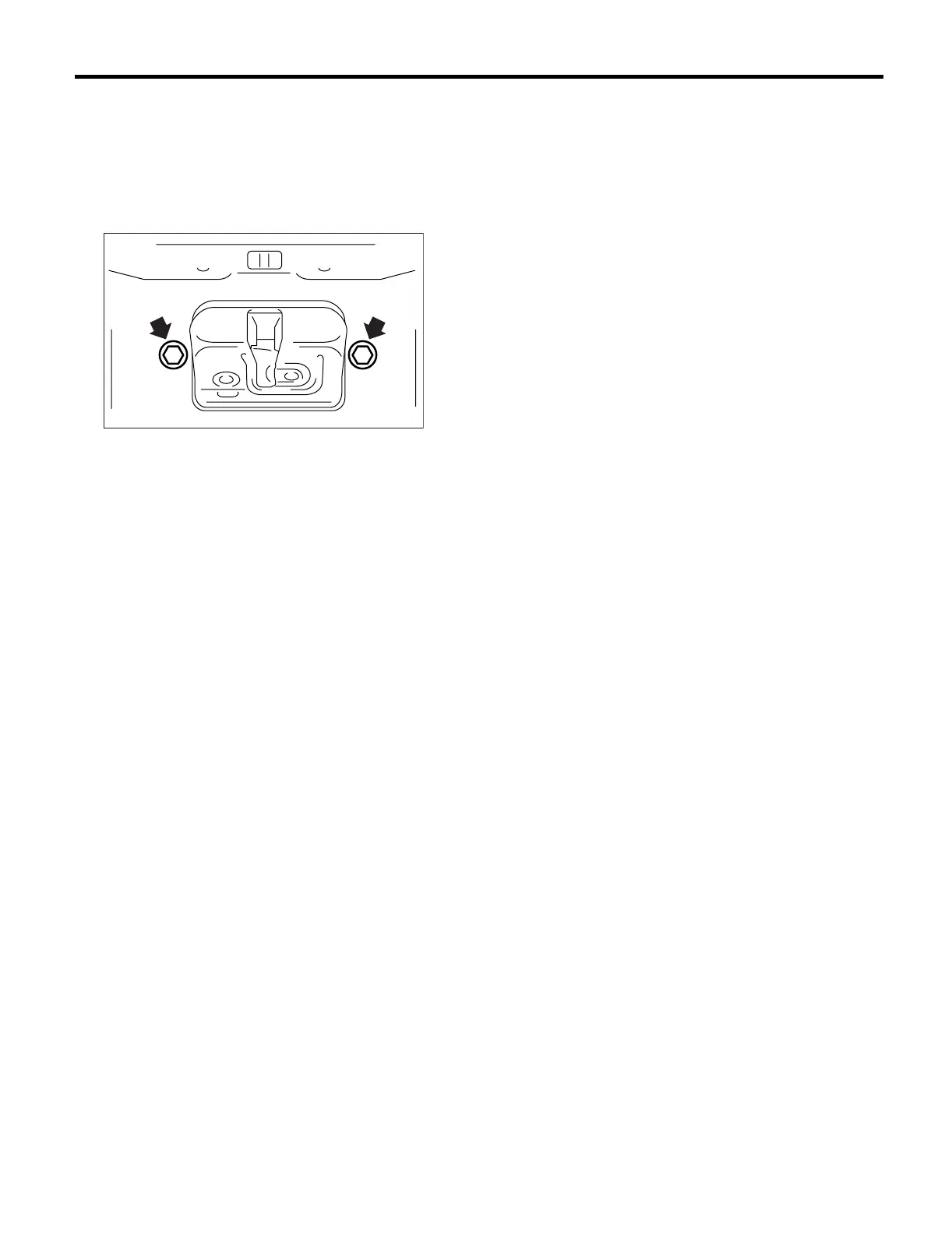

3) Remove two bolts.
4) Remove the rear gate latch assembly, and then
disconnect the connector.
5) Remove the rear gate outer handle cable, and
then remove the rear gate latch assembly.
B: INSTALLATION
Install in the reverse order of removal.
NOTE:
Make sure the lock works properly after installation.
C: INSPECTION
1) Make sure the cable is not deformed.
2) Make sure the lever, cable, rear gate latch
switch and door lock operate smoothly.
SL-00017
