Rear Quarter Trim
19.Rear Quarter Trim
A: REMOVAL
1) Remove the rear seat. <Ref. to SE-13, REMOV-
AL, Rear Seat.>
2) Remove the side sill rear cover.
3) Remove the rear rail trim (A).
4) Remove the strut cap.
5) Remove the shoulder anchor of rear seat belt.
6) Loosen the screws and clips to remove rear
quarter upper trim (B).
7) Remove the rear skirt trim (C).
8) Loosen the screws and clips to remove rear
quarter lower trim (D).
B: INSTALLATION
Install in the reverse order of removal.
CAUTION:
Be sure to securely hook pawls of inner trim
panel to body flange.
NOTE:
When installing the rear quarter upper trim, be sure
to set the rear molding as shown in the figure.
(E) Clip
(F) Hook

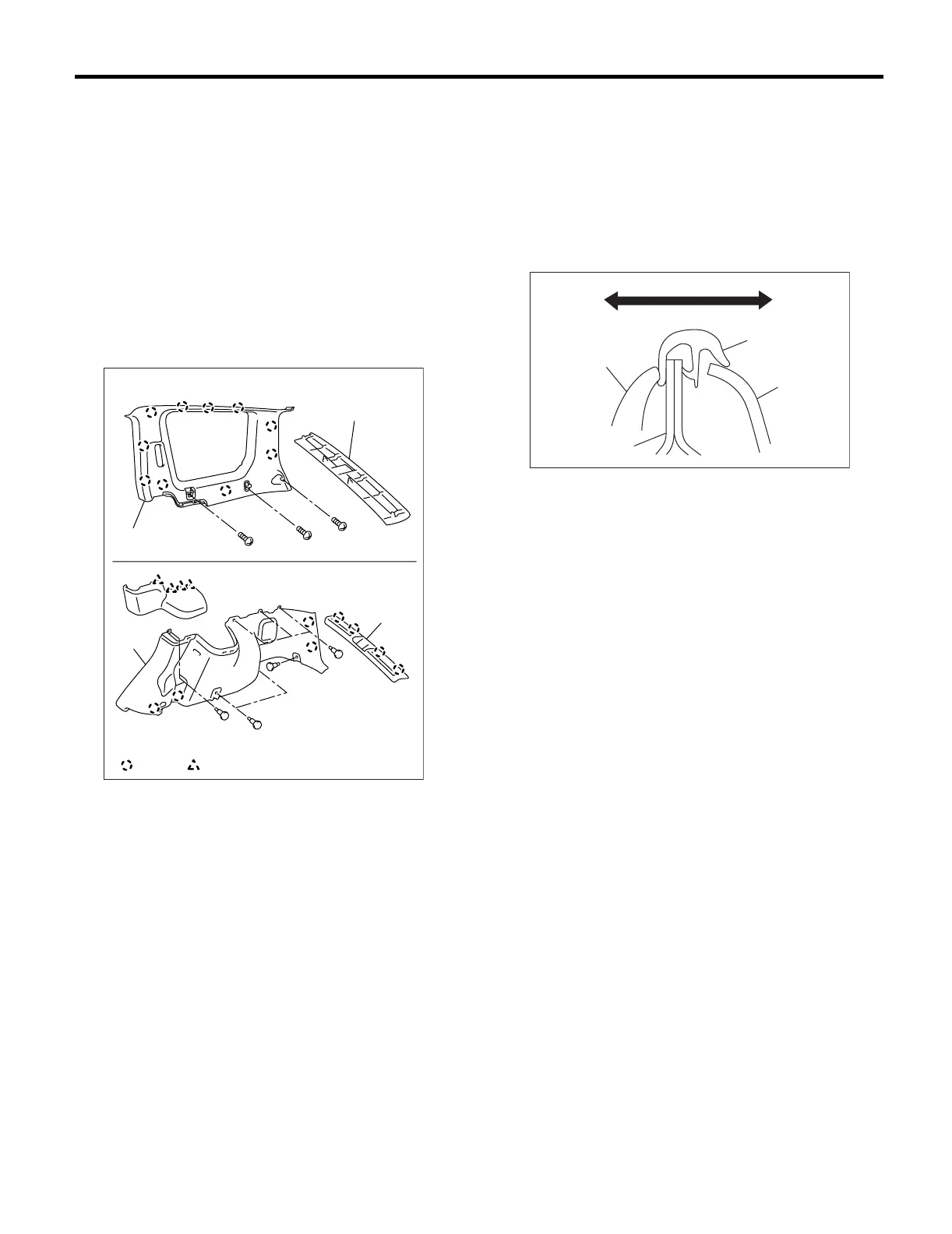

EI-00073
(D)
(A)
(B)
(C)
: (E)
: (F)
(A) Outside
(B) Inside
(C) Molding
(D) Weather strip
(E) Trim
(F) Body
