CC(H4DOTC 2.5)-4
CRUISE CONTROL SYSTEM (DIAGNOSTIC)
General Description
2. General Description
A: CAUTION
1. SUPPLEMENTAL RESTRAINT SYSTEM “AIRBAG”
Airbag system wiring harness is routed near the cruise control command switch.
CAUTION:
• All airbag system wiring harness and connectors are colored yellow. Do not use electrical test
equipment on these circuits.
• Be careful not to damage the airbag system wiring harness when servicing the cruise control com-
mand switch.
B: PREPARATION TOOL
1. SPECIAL TOOL
2. GENERAL TOOL
C: INSPECTION
1. BATTERY
Measure the battery voltage and specific gravity of electrolyte.
Standard voltage:
12 V, or more
Specific gravity:
Above 1.260

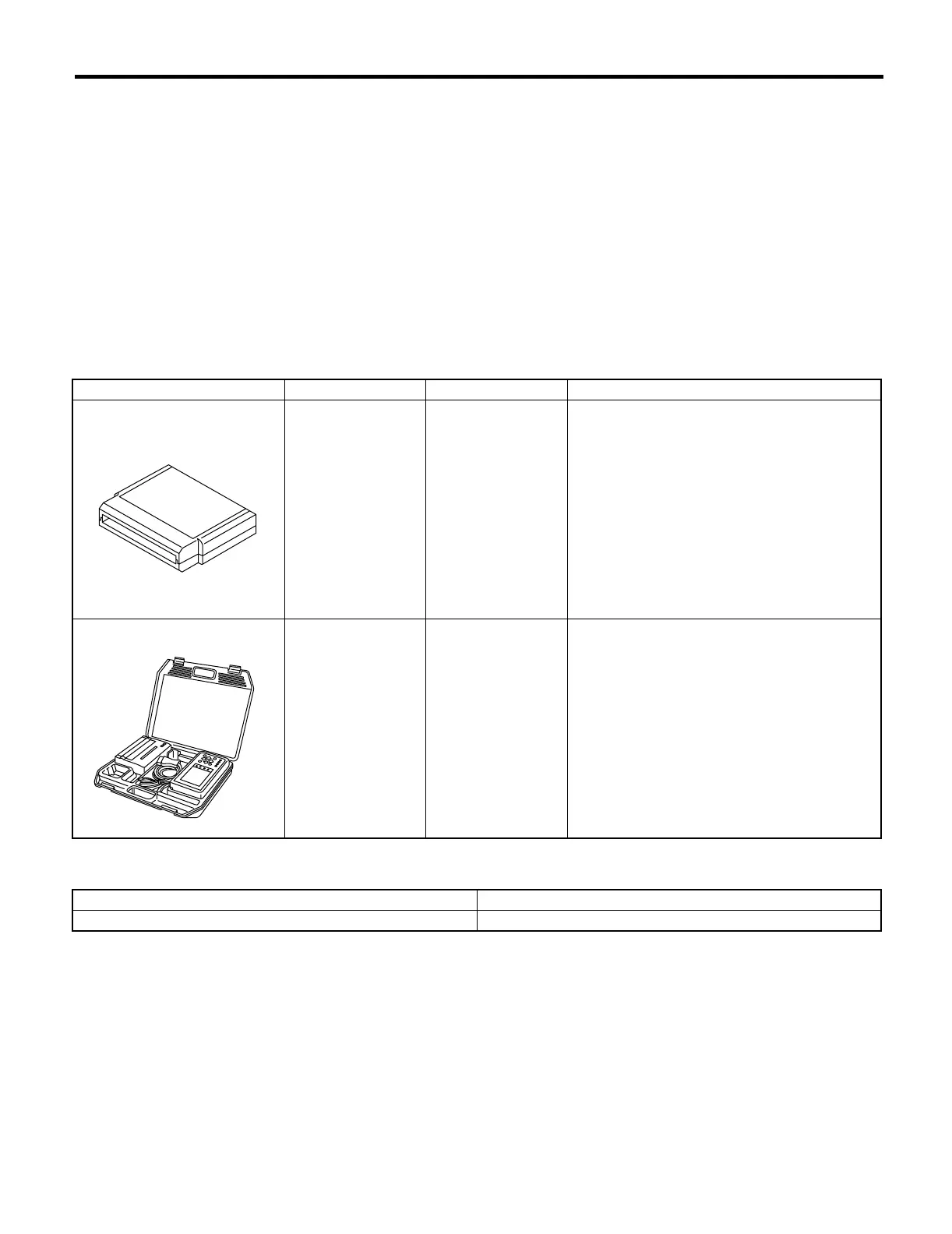

ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
24082AA230
(Newly adopted tool)
CARTRIDGE Troubleshooting for electrical systems.
22771AA030 SUBARU SELECT
MONITOR KIT
Troubleshooting for electrical systems.
•English:
22771AA030 (Without printer)
•German:
22771AA070 (Without printer)
• French:
22771AA080 (Without printer)
• Spanish:
22771AA090 (Without printer)
TOOL NAME REMARKS
Circuit tester Used for measuring resistance, voltage and ampere.
ST24082AA230
ST22771AA030
To Next Page
