CC(H4SO)-7
CRUISE CONTROL SYSTEM (DIAGNOSTIC)
Cruise Control Module I/O Signal
4. Cruise Control Module I/O Signal

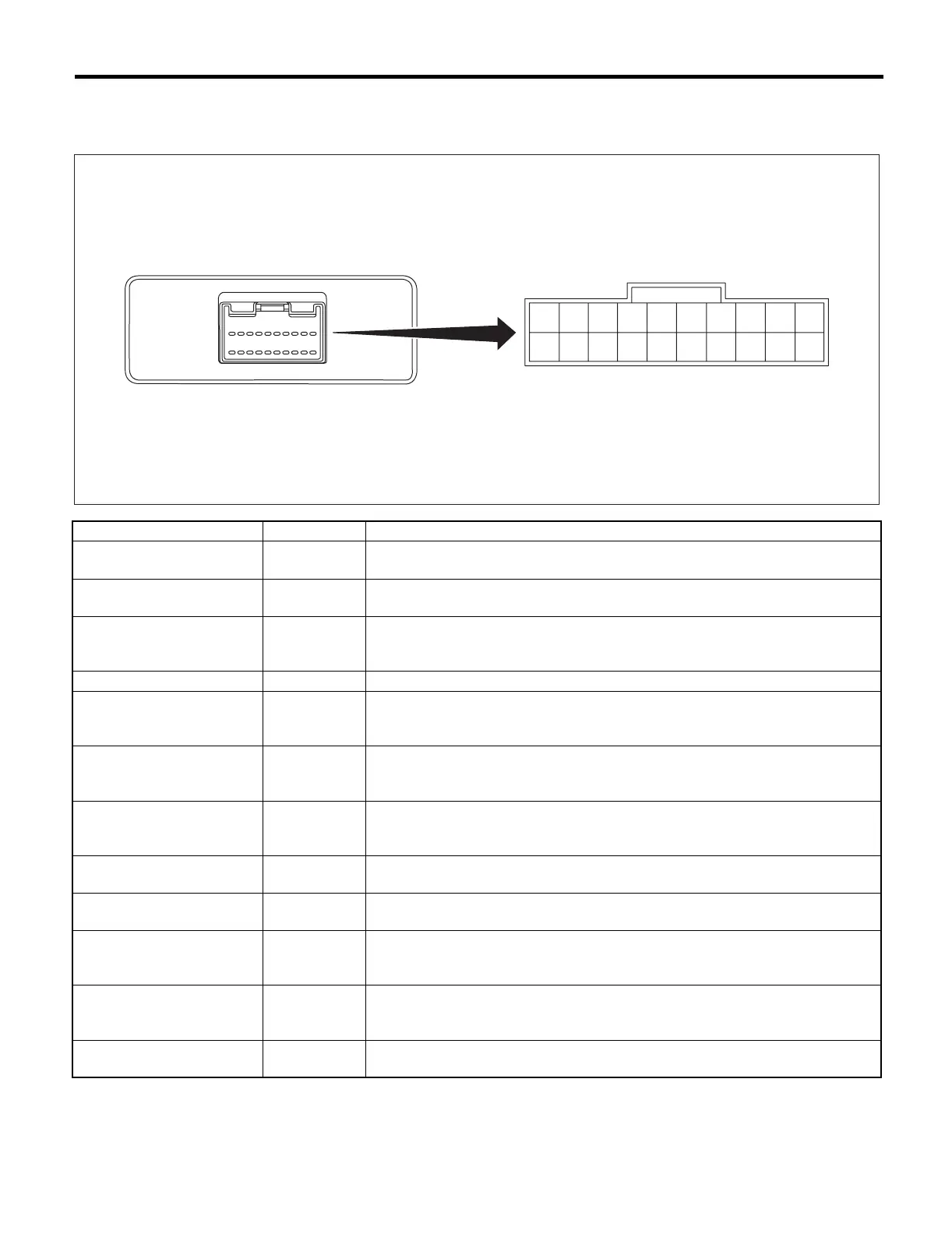

A: ELECTRICAL SPECIFICATION
Content Terminal No. Measuring conditions and I/O signals (ignition switch ON and engine idling)
Cruise indicator light 1 • Battery voltage is present when main switch is turned ON.
• “0” volt is present when main switch is turned OFF.
Inhibitor switch (AT model) 4 • Battery voltage is present when selector lever is other than “P” or “N” position.
• “0” volt is present when selector lever is set to “P” or “N” position.
Motor B 5 • ON-and-OFF (“0”-and-battery voltage) operation is alternately repeated while
cruise control is operating.
• “0” volt is present when main switch is turned OFF.
Ground 6 —
Motor A 7 • ON-and-OFF (“0”-and-battery voltage) operation is alternately repeated while
cruise control is operating.
• “0” volt is present when main switch is turned OFF.
RESUME/ACCEL switch 9 • Battery voltage is present when command switch is turned to RESUME/ACCEL
position.
• “0” volt is present when command switch is released.
SET/COAST switch 10 • Battery voltage is present when command switch is turned to SET/COAST
position.
• “0” volt is present when command switch is released.
Main power supply 11 • Battery voltage is present when main power is turned ON.
• “0” volt is present when main power is turned OFF.
Ignition switch 12 • Battery voltage is present when ignition switch is turned ON.
• “0” volt is present when ignition switch is turned OFF.
Motor C 13 • ON-and-OFF (“0”-and-battery voltage) operation is alternately repeated while
cruise control is operating.
• “0” volt is present when main switch is turned OFF.
Motor clutch 14 • ON-and-OFF (“0”-and-battery voltage) operation is alternately repeated while
cruise control is operating.
• “0” volt is present when vehicle is stopped.
Cruise control main switch 15 • Battery voltage is present while pressing the main switch.
• “0” volt is present when main switch is released.
CC-00027
10
9
8
76
543
2
1
20
19
18
17 16
15 14 13
12 11
