Subaru Forester 2004 - Relay and Fuse

AC-42
HVAC SYSTEM (HEATER, VENTILATOR AND A/C)
Relay and Fuse
17.Relay and Fuse
A: LOCATION
B: INSPECTION
While applying battery voltage between the termi-
nals (1) and (2), check continuity between the ter-
minals (3) and (5).
If no continuity exists, replace the relay with a new
one.

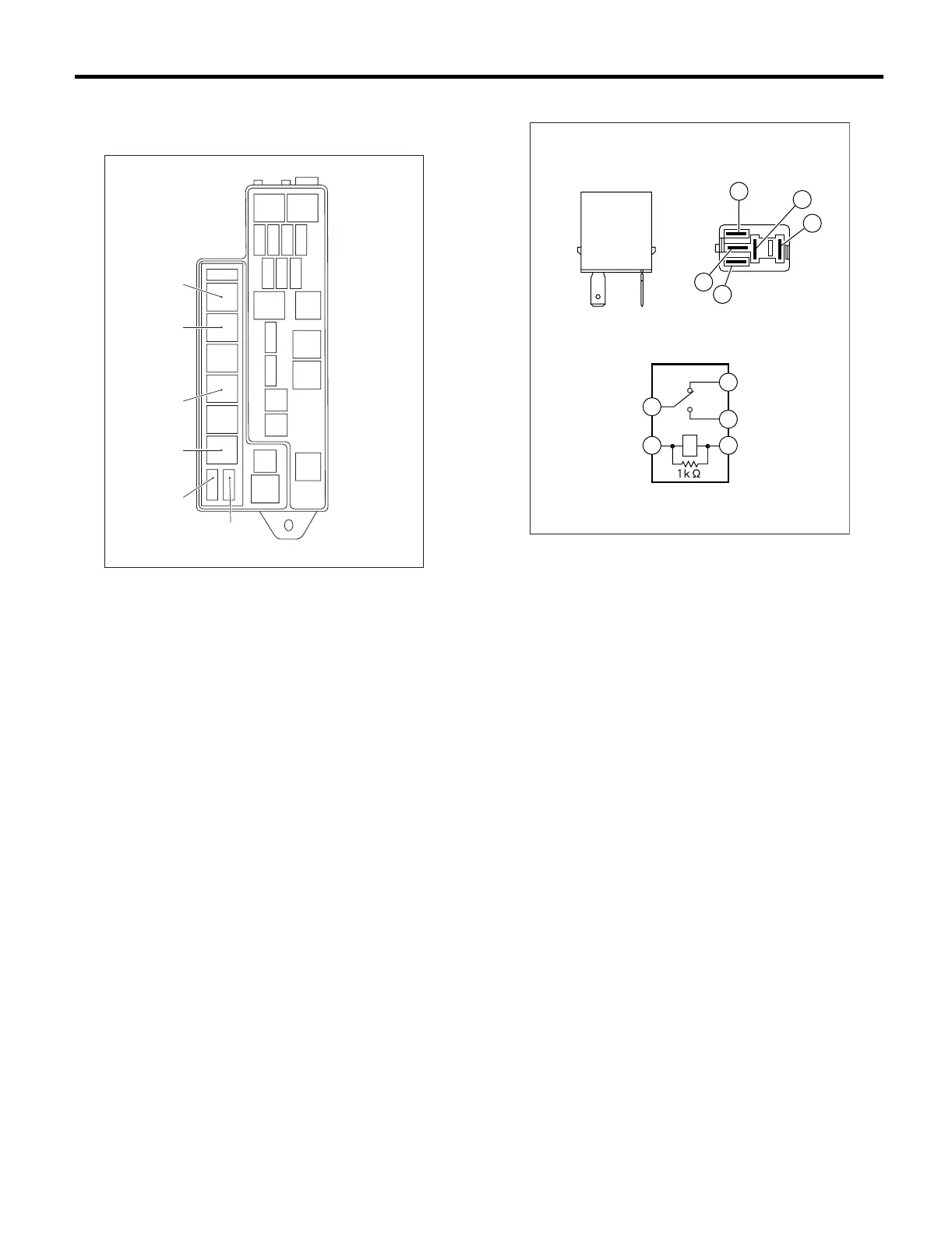

(1) Main fuse box (M/B)
(2) Main fan relay
(3) Sub fan relay
(4) A/C relay
(5) Fan mode relay
(6) Main fan fuse
(7) Sub fan fuse
AC-00834
(7)
(6)
(5)
(4)
(1)
(3)
(2)
(1) — (2) Continuity exists.
(3) — (4) Continuity exists.
(3) — (5) No continuity.
AC-00093
4
4
5
2
2
5
3
3
1
1
