Subaru Forester 2004 - Front Fog Light System

LI-4
LIGHTING SYSTEM
Front Fog Light System
3. Front Fog Light System
A: WIRING DIAGRAM
1. FRONT FOG LIGHT
<Ref. to WI-219, WIRING DIAGRAM, Front Fog
Light System.>

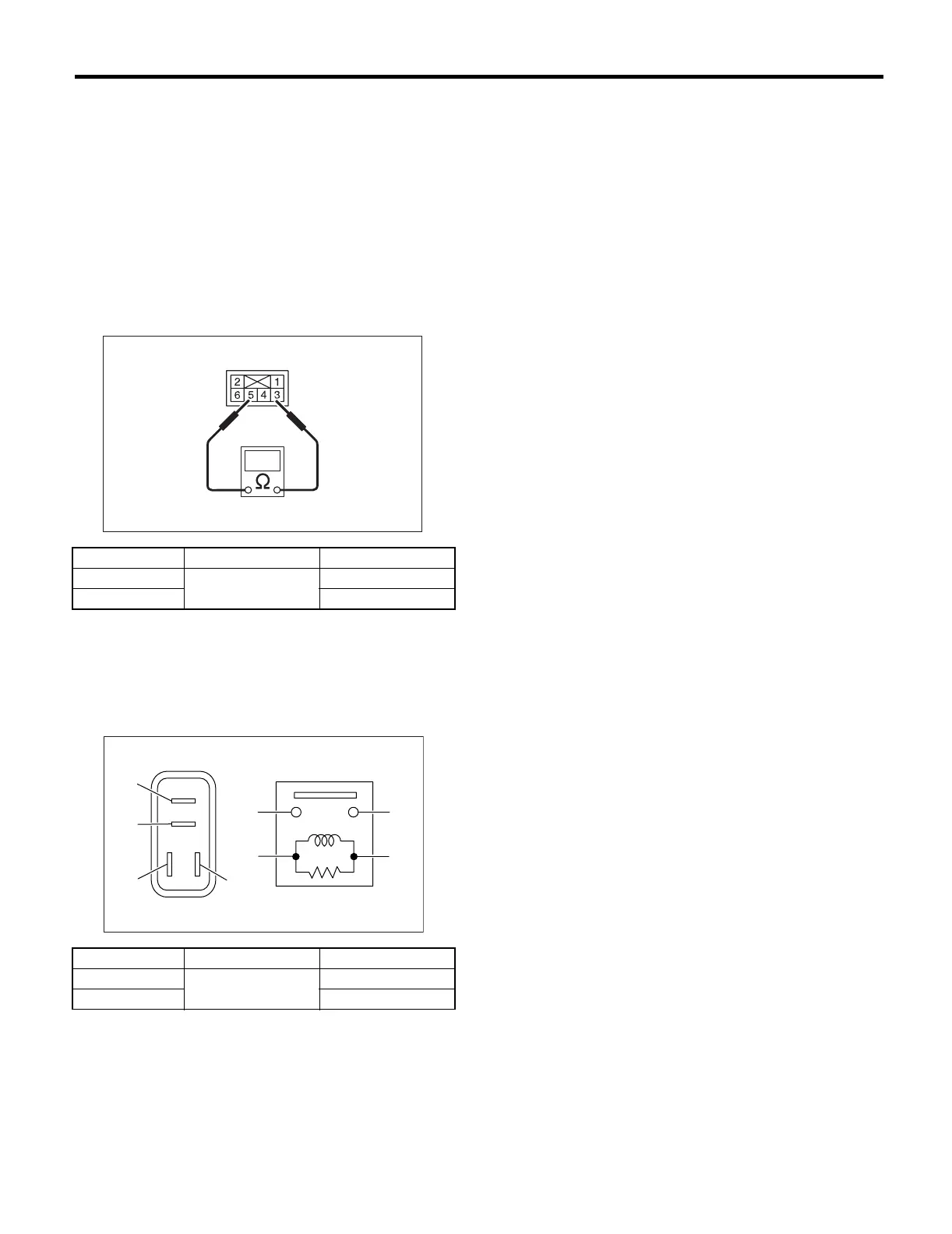

B: INSPECTION
1. FRONT FOG LIGHT SWITCH
Measure the resistance between front fog light switch
terminals.
2. FRONT FOG LIGHT RELAY
Measure the front fog light relay resistance be-
tween terminals when connecting terminal No. 4 to
battery positive terminal and terminal No. 3 to bat-
tery ground terminal.
Switch position Terminal No. Standard
OFF
3 and 5
More than 1 MΩ
ON Less than 1 Ω
Current Terminal No. Standard
Flow
1 and 2
Less than 1 Ω
No flow More than 1 MΩ
LI-00051
LI-00001
(1)
(2)
(1)
(4)
(2)
(3)
(3)
(4)
