IDI-15
INSTRUMENTATION/DRIVER INFO
Fuel Gauge
6. Fuel Gauge
A: REMOVAL
Disassemble the combination meter, and then remove
the water temperature gauge and fuel gauge assem-
bly. <Ref. to IDI-11, DISASSEMBLY, Combination
Meter Assembly.>
B: INSTALLATION
Install in the reverse order of removal.
C: INSPECTION

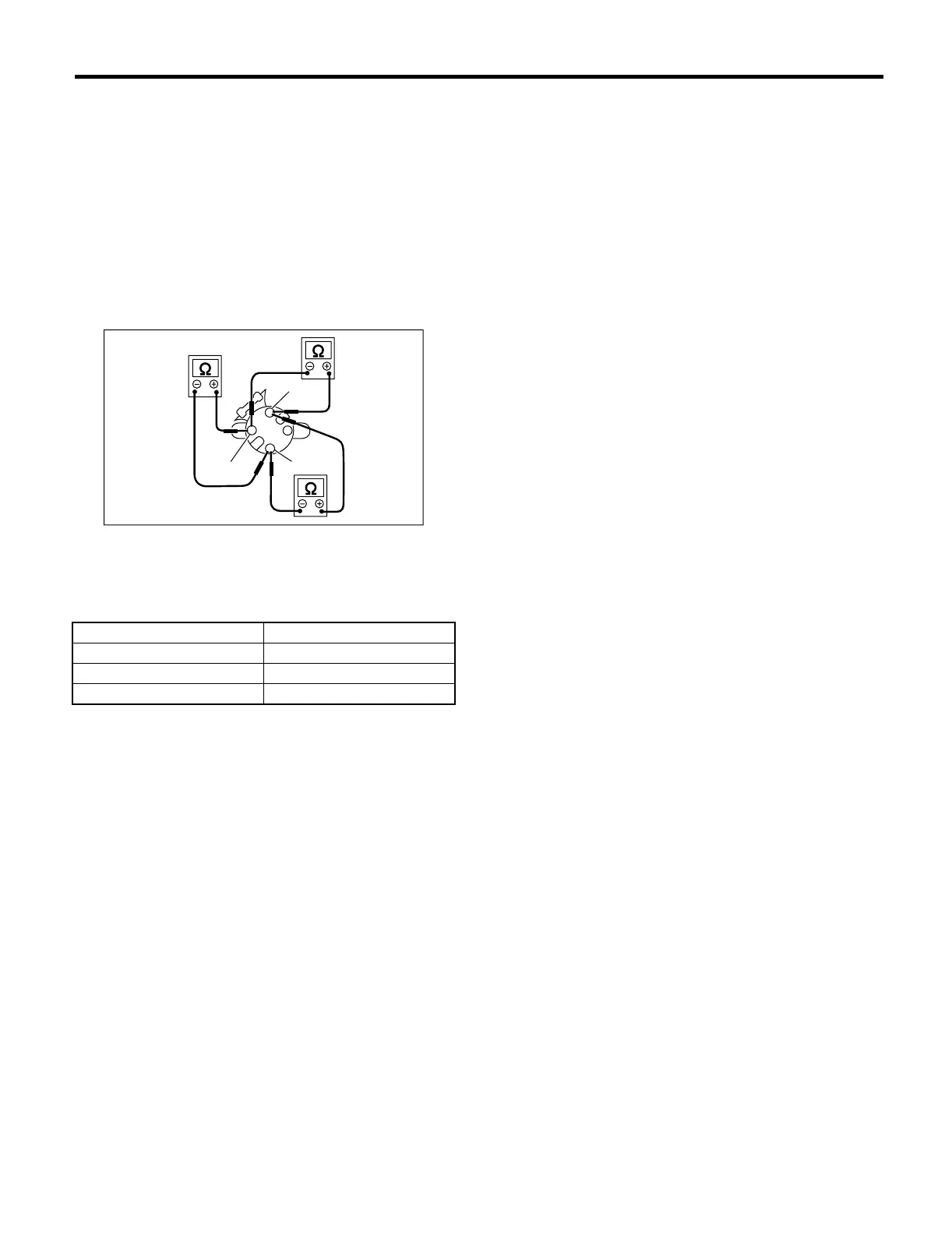

Measure the fuel gauge resistance.
If NG, replace the water temperature gauge and
fuel gauge assembly.
If OK, replace the combination meter printed circuit.
(1) UNIT
(2) IGN
(3) GND
Terminal Resistance
Terminals IGN and GND 170±10 Ω
Terminals IGN and UNIT 35±10 Ω
Terminals UNIT and GND 136±10 Ω
IDI00007
(3)
(2)
(1)
