Rear Outer Handle
9. Rear Outer Handle
A: REMOVAL
1) Remove the rear door trim. <Ref. to EI-36, RE-
MOVAL, Rear Door Trim.>
CAUTION:
Do not use excessive force to remove the door
panel. This will deform it.
2) Remove the sealing cover. <Ref. to EB-16, RE-
MOVAL, Rear Sealing Cover.>
3) Remove the rear inner remote. <Ref. to SL-26,
REMOVAL, Rear Inner Remote.>
4) Remove the rear door latch assembly. <Ref. to
SL-28, REMOVAL, Rear Door Latch Assembly.>

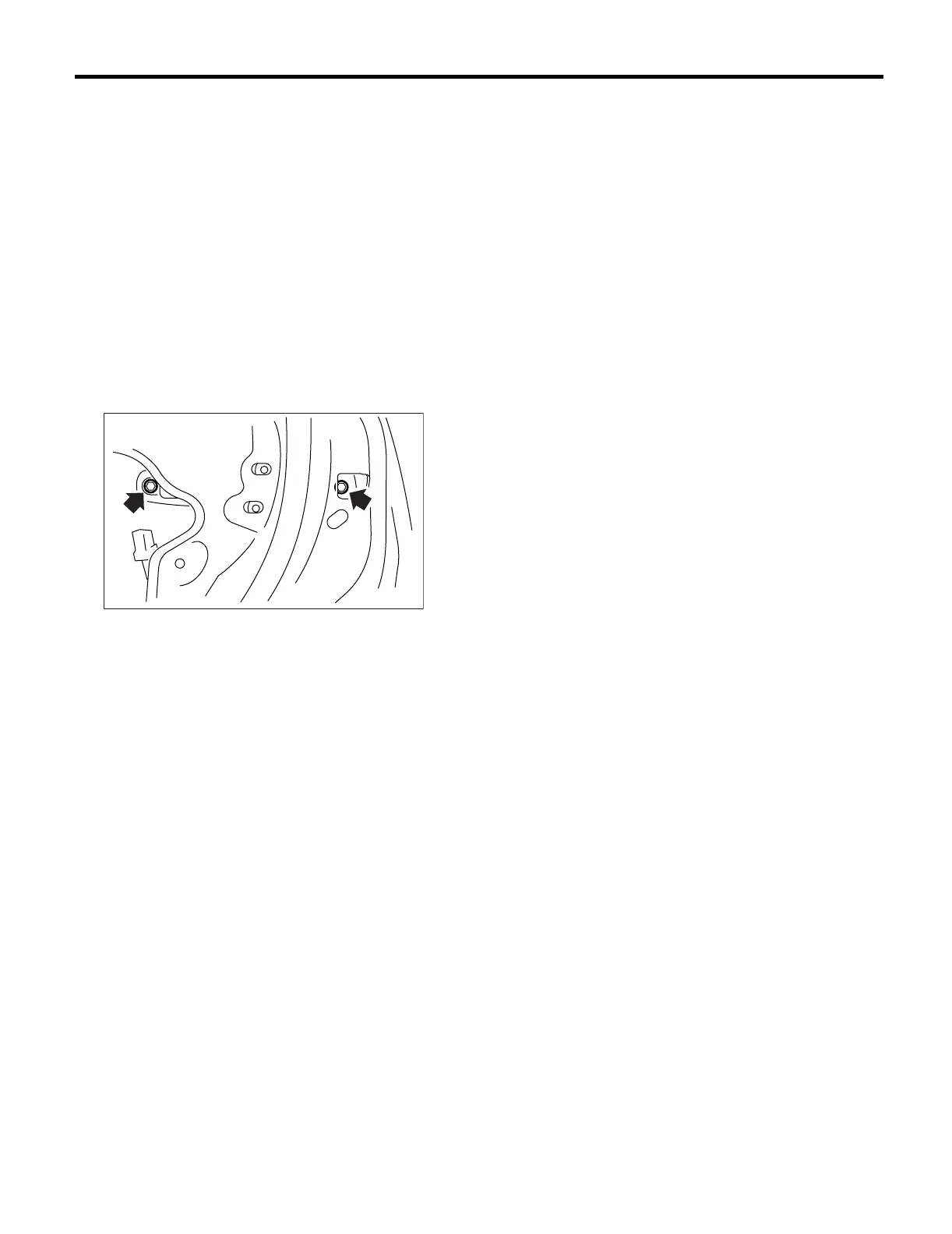

5) Remove two bolts, and then remove the rear
outer handle.
B: INSTALLATION
Install in the reverse order of removal.
NOTE:
Make sure the outer handle works properly after in-
stallation.
C: INSPECTION
1) Make sure the resinous lever is not deformed,
damaged or cracked.
2) Make sure the resinous lever operate smoothly.
SL-00013
