GW-28
GLASS/WINDOW/MIRROR
Inner Rearview Mirror
14.Inner Rearview Mirror
A: REMOVAL
NOTE:
The spring cannot be reused. Prepare a new spring
before removal.

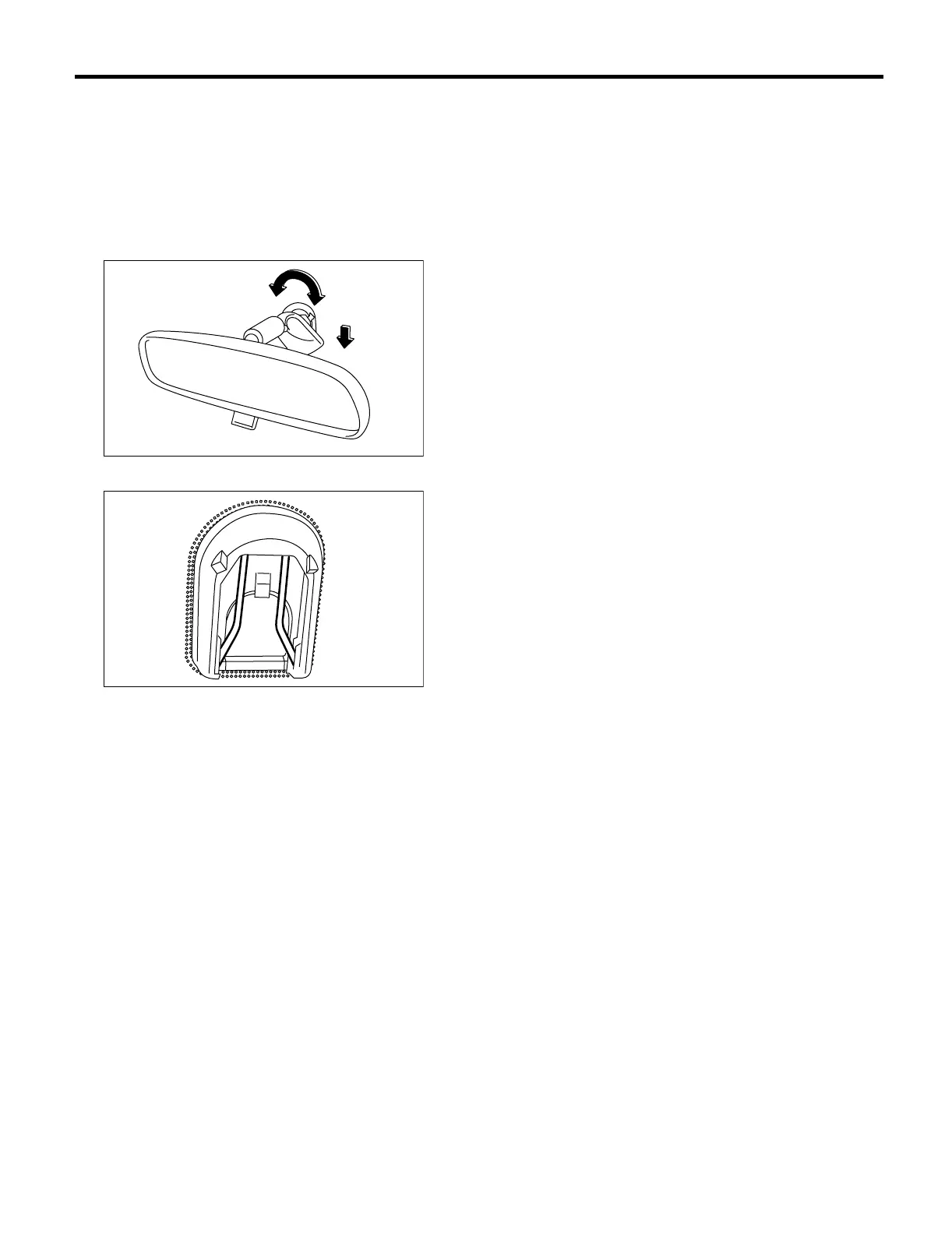

1) Turn the mirror base 90 degrees clockwise or
counterclockwise to remove it.
2) Remove the spring from mirror base.
CAUTION:
Be careful not to damage the mirror surface.
3) If the mirror base is damaged, remove the mirror
base using piano wire or spatula, etc.
CAUTION:
Be careful not to damage the windshield glass.
B: INSTALLATION
1) If removing the mirror base, remove the remain-
ing adhesive thoroughly, and then fit the mirror
base to mark on windshield glass to install.
Adhesive:
REPAIR KIT IN MR (Part No. 65029FC000)
2) Verify that the mirror base is adhered securely,
and then install the spring.
3) Install in the reverse order of removal.
C: INSPECTION
1) Check that the mirror is not damaged.
2) Check that the spring is not damaged.
GW-00046
GW-00047
