EXTERIOR BODY PANEL
Front Fender Panel
3. Front Fender Panel
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the front bumper face. <Ref. to EI-23,
REMOVAL, Front Bumper.>
3) Remove the mud guard. <Ref. to EI-31, RE-
MOVAL, Mud Guard.>
4) Remove the side sill spoiler. <Ref. to EI-33, RE-
MOVAL, Side Sill Spoiler.>
5) Remove the side protector. <Ref. to EI-34, RE-
MOVAL, Side Garnish.>
6) Loosen the bolts and clip to remove front fender
panel.
B: INSTALLATION
1) Install in the reverse order of removal.
2) When the front fender panel is installed, clear-
ance between front fender panel and front hood
panel must be equal.
Tightening torque:
7.4 N·m (0.75 kgf-m, 5.5 ft-lb)

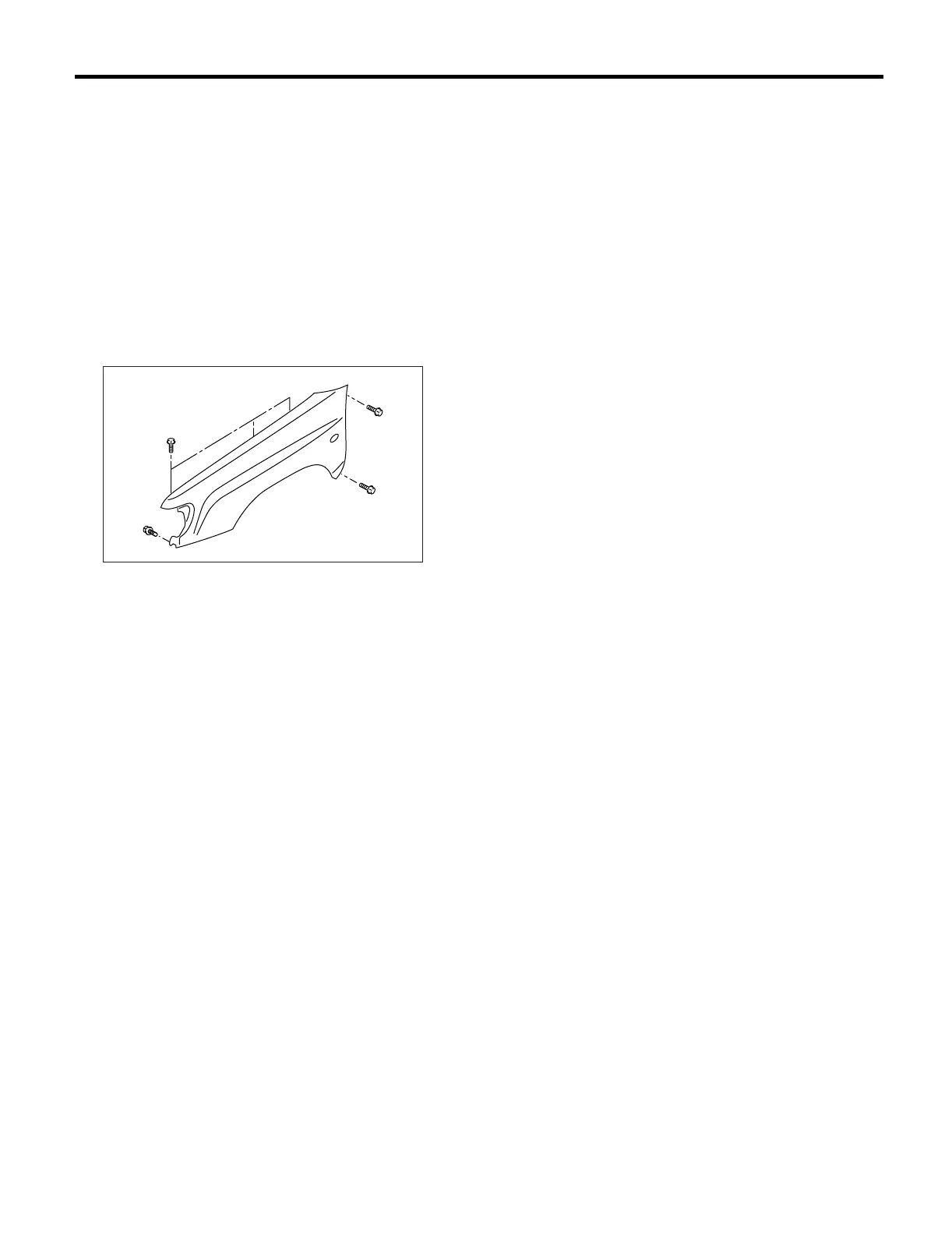

EB-00011
