AC-34
HVAC SYSTEM (HEATER, VENTILATOR AND A/C)
Heater Core
9. Heater Core
A: REMOVAL
1) Remove the heater cooling unit. <Ref. to AC-39,
REMOVAL, Heater Cooling Unit.>
2) Remove the screws to remove the heater core
pipe cover (RHD model).
3) Remove the screws to remove mode actuator.
4) Remove the screws to remove foot duct.
5) Remove the screws to remove evaporator cover.
6) Remove the screws to remove lower case.
7) Remove the heater core.
B: INSTALLATION
Install in the reverse order of removal.

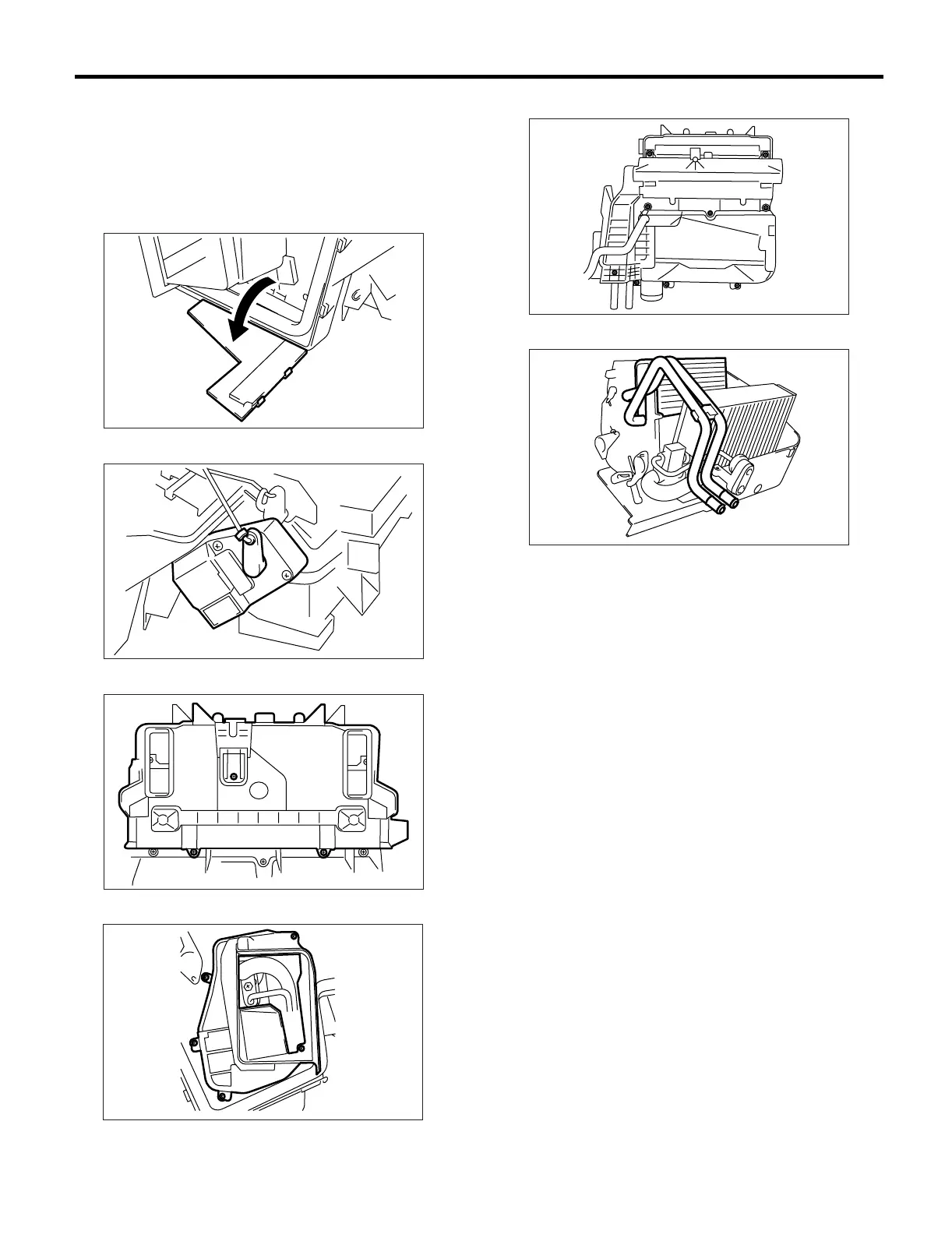

AC-00042
AC-00043
AC-00044
AC-00867
AC-00046
AC-00047
