SL-23
SECURITY AND LOCK
Front Outer Handle
5. Front Outer Handle
A: REMOVAL
1) Remove the door trim. <Ref. to EI-35, REMOV-
AL, Front Door Trim.>
CAUTION:
Do not use excessive force to remove the door
panel. This will deform it.
2) Remove the sealing cover. <Ref. to EB-13, RE-
MOVAL, Front Sealing Cover.>
3) Remove the front inner remote. <Ref. to SL-22,
REMOVAL, Front Inner Remote.>
4) Remove the cable from cable holder to make ca-
ble move freely.
5) Remove two bolts and rod clamp, and then re-
move the front outer handle.
NOTE:
The rear bolt can be removed from service hole (A)
of inner panel by adjusting the glass position.
B: INSTALLATION
Install in the reverse order of removal.
NOTE:
Make sure the outer handle works properly after in-
stallation.
C: INSPECTION
1) Make sure the cable is not deformed.
2) Make sure the lever and rod work smoothly.

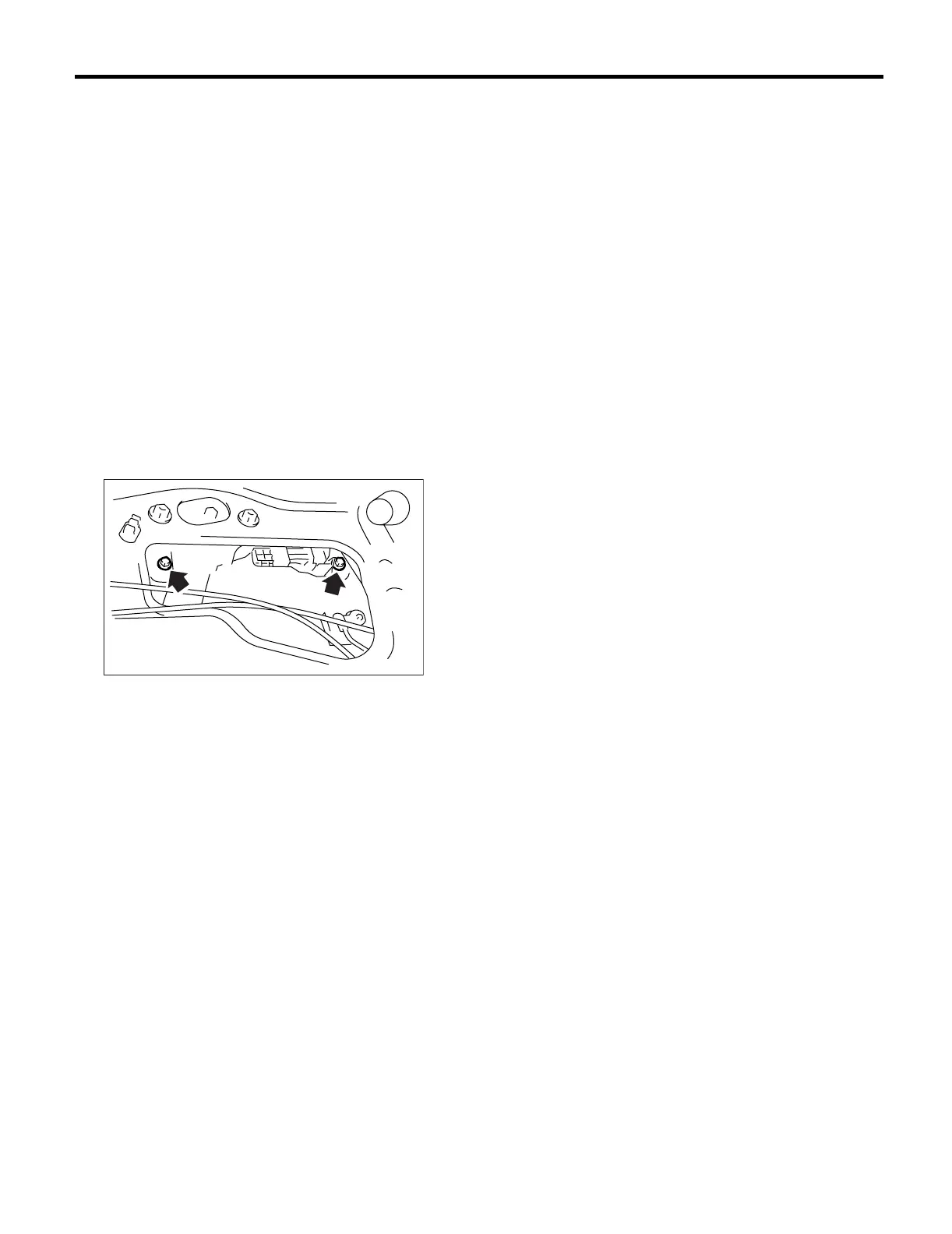

SL-00009
(A)
