Subaru Forester 2004 - Combination Switch (Light)

LI-11
LIGHTING SYSTEM

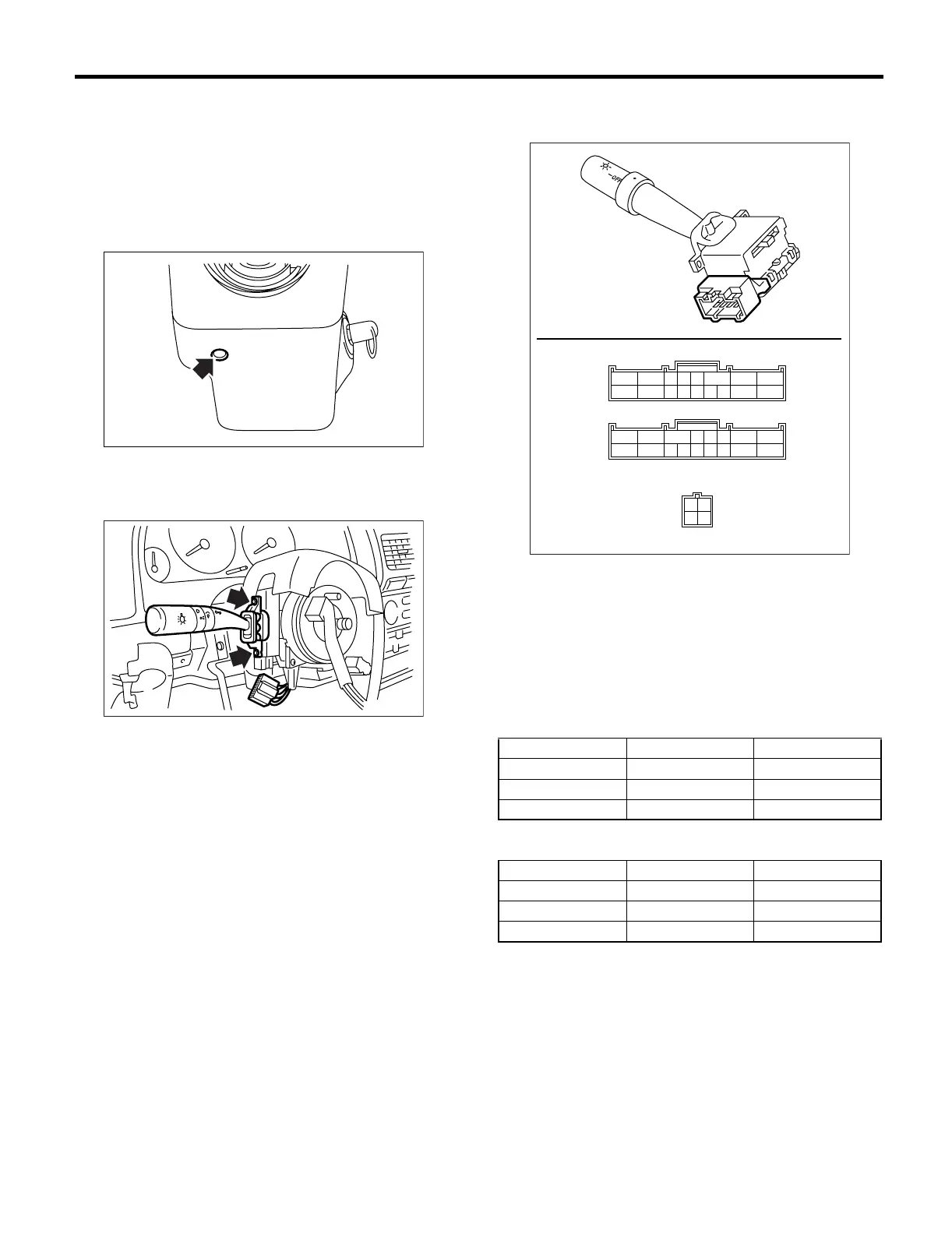

Combination Switch (Light)
10.Combination Switch (Light)
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the instrument panel lower cover. <Ref.
to EI-40, REMOVAL, Instrument Panel Assembly.>
3) Remove the screw which secure upper column
cover to lower column cover.
4) Disconnect the connector from combination switch.
5) Remove the screws which secure switch, and
then remove the switch.
B: INSTALLATION
Install in the reverse order of removal.
C: INSPECTION
Measure the combination switch resistance.
1. LIGHTING SWITCH
LHD and RHD model with rear fog light:
RHD model without rear fog light:
LI-00009
LI-00068
(A) Lighting & turn signal switch connector (LHD
and RHD model with rear fog light)
(B) Lighting & turn signal switch connector (RHD
model without rear fog light)
(C) Parking switch connector
Switch position Terminal No. Standard
OFF — More than 1 MΩ
Tail 14 and 16 Less than 1 Ω
Head 13, 14 and 16 Less than 1 Ω
Switch position Terminal No. Standard
OFF — More than 1 MΩ
Tail 9 and 15 Less than 1 Ω
Head 9, 14 and 15 Less than 1 Ω
LI-00066
1514131211 10 917 16
6 5 4 3 2 18 7
1514
2 1
4 3
131211 10 917 16
6 5 4 3 2 18 7
(A)
(B)
(C)
