Subaru Forester 2004 - Key Lock Cylinder

SL-36
SECURITY AND LOCK
Key Lock Cylinder
18.Key Lock Cylinder
A: REPLACEMENT
1. FRONT DOOR
• Without double lock:
1) Remove the door trim. <Ref. to EI-35, REMOVAL,
Front Door Trim.>
2) Pull back the sealing cover. <Ref. to EB-13, RE-
MOVAL, Front Sealing Cover.>
3) Close the front door glass completely.

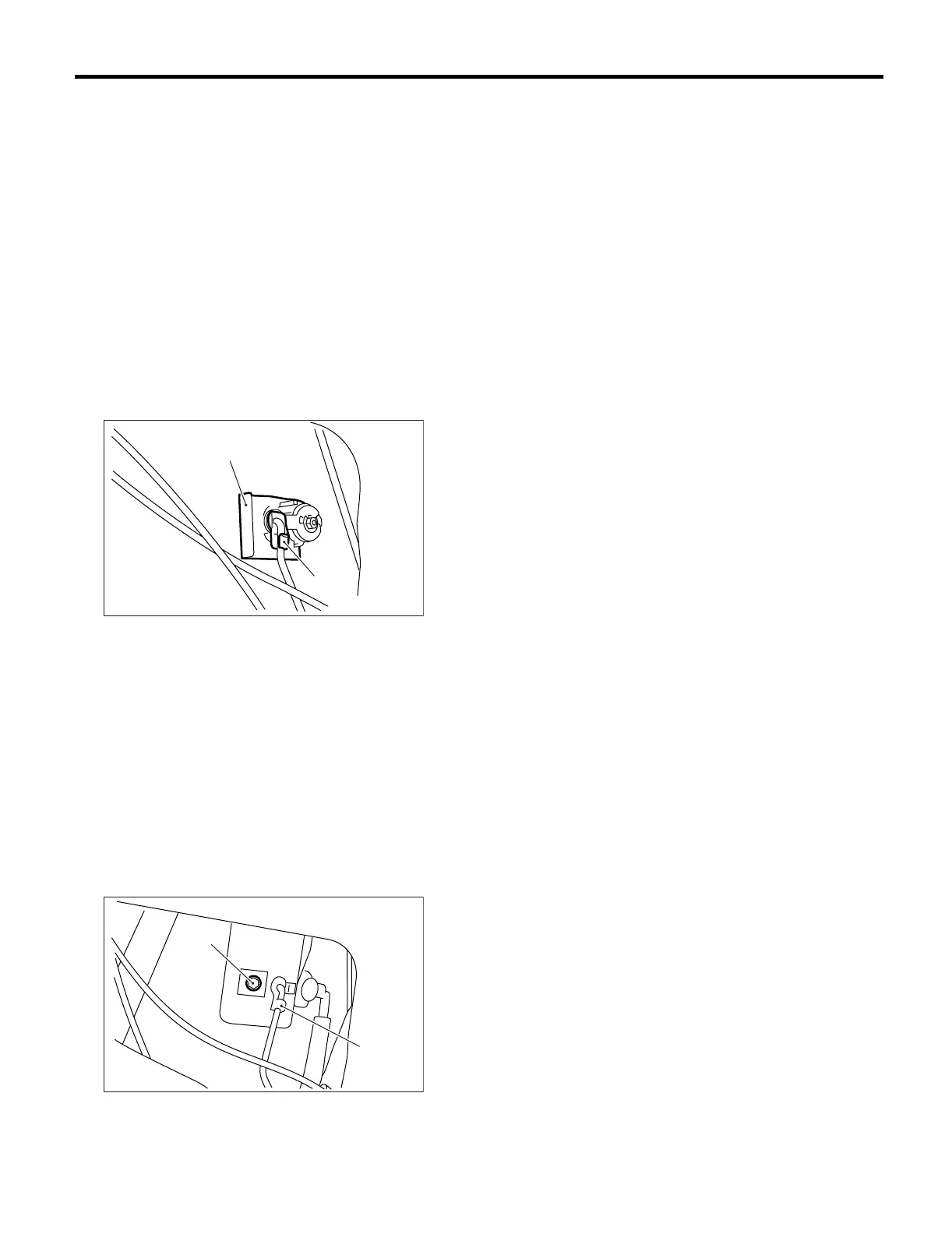

4) Remove the rod clamp (A). Remove the lock
plate (B). Replace the key cylinder.
NOTE:
Be sure to replace the lock plate (B) with a new
one.
• With double lock:
1) Remove the door trim. <Ref. to EI-35, REMOVAL,
Front Door Trim.>
2) Remove the sealing cover. <Ref. to EB-13, RE-
MOVAL, Front Sealing Cover.>
3) Close the front door glass completely.
4) Remove the key cylinder retainer cover, and
then remove the rod clamp (A).
CAUTION:
Be sure to replace the key cylinder retainer cov-
er with a new one when removing.
5) Remove the bolt (B) and key cylinder retainer to
replace the key cylinder.
SL-00026
(A)
(B)
SL-00060
(A)
(B)
