Subaru Forester 2004 - Room Light System

LI-9
LIGHTING SYSTEM
Room Light System
8. Room Light System
A: WIRING DIAGRAM
1. ROOM LIGHT
<Ref. to WI-224, WIRING DIAGRAM, In Compart-
ment Light System.>
B: INSPECTION
1. DOOR SWITCH

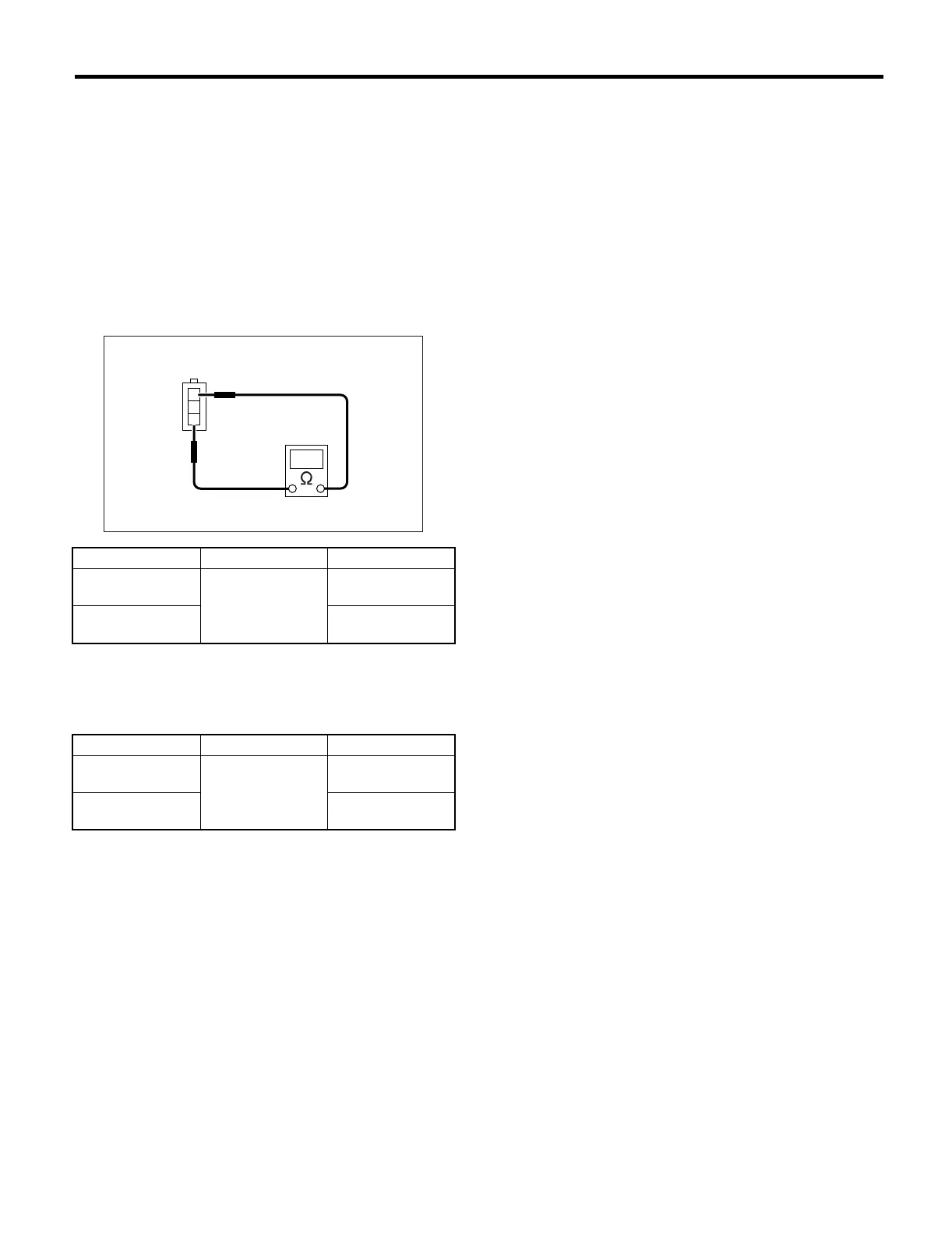

Measure the resistance between door switch termi-
nals.
2. REAR GATE LATCH SWITCH
Measure the resistance between rear gate latch
switch terminals.
Switch position Terminal No. Standard
When door is
open
1 and 3
Less than 1 Ω
When door is
closed
More than 1 MΩ
Switch position Terminal No. Standard
When rear gate is
open
1 and 2
Less than 1 Ω
When rear gate is
closed
More than 1 MΩ
1
2
3
LI-00007
