Subaru Forester 2004 - Front Structure

BS-14
BODY STRUCTURE

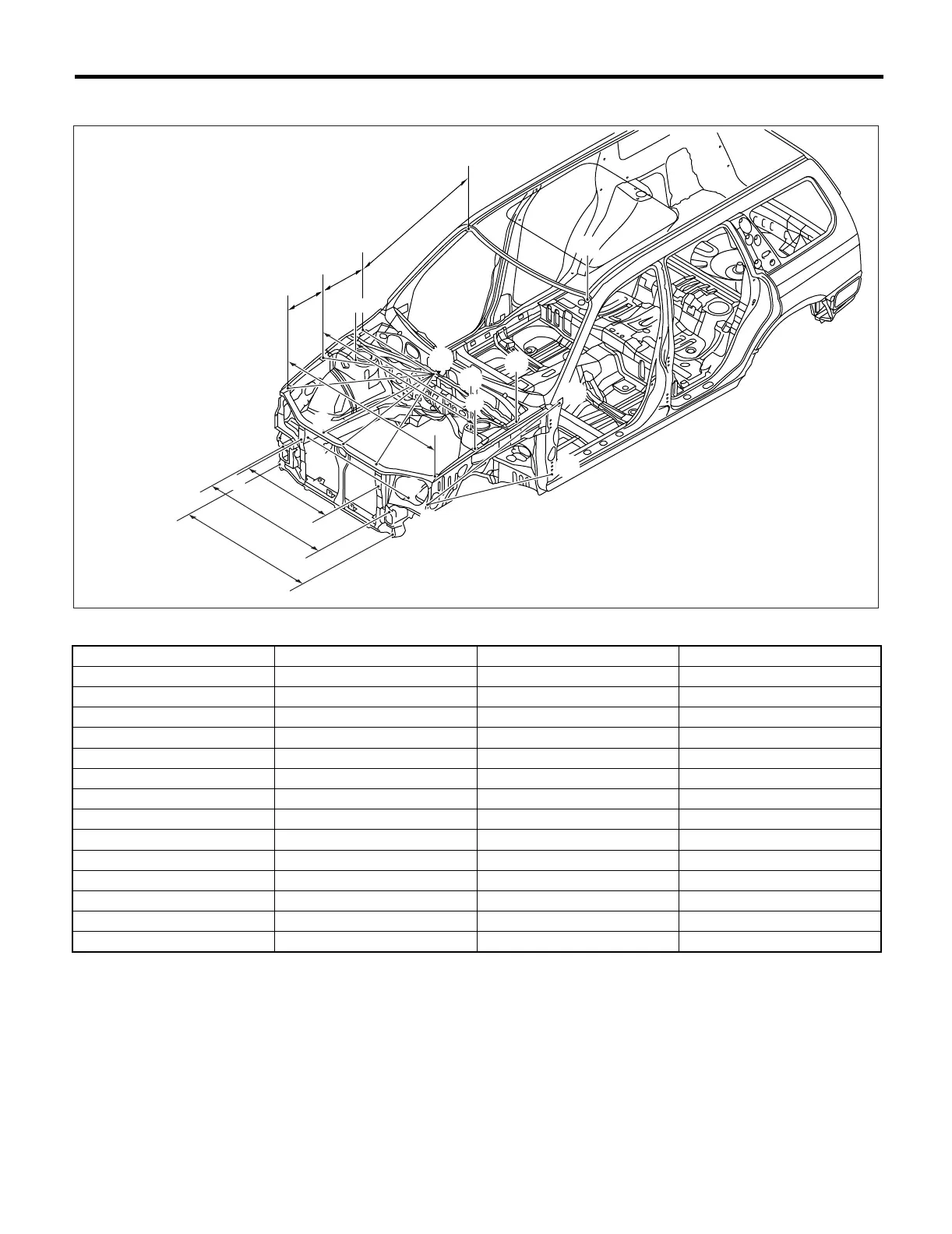

Datum Dimensions
3. FRONT STRUCTURE
Unit: mm (in)
Point to point Dimension Point to point Dimension
(1) to (11) 822 (32.36) (7) LH to (15) LH 1,067 (42.01)
(2) RH to (11) 842 (33.15) (8) RH to (8) LH 921 (36.26)
(2) LH to (11) 875 (34.45) (9) RH to (9) LH 1,396 (54.96)
(3) RH to (3) LH 716 (28.19) (9) RH to (10) RH 398 (15.67)
(4) RH to (4) LH 978 (38.50) (9) LH to (10) LH 398 (15.67)
(5) RH to (5) LH 1,049 (41.30) (9) RH to (11) 767 (30.20)
(6) RH to (6) LH 1,341 (52.80) (9) LH to (11) 767 (30.20)
(6) RH to (9) RH 349 (13.74) (10) RH to (11) 722 (28.43)
(6) LH to (9) LH 349 (13.74) (10) LH to (11) 722 (28.43)
(6) RH to (11) 944 (37.17) (10) RH to (13) RH 907 (35.71)
(6) LH to (11) 944 (37.17) (10) LH to (13) LH 907 (35.71)
(7) RH to (14) RH 1,155 (45.47) (11) to (12) RH 565 (22.24)
(7) LH to (14) LH 1,155 (45.47) (11) to (12) LH 565 (22.24)
(7) RH to (15) RH 1,067 (42.01) (12) RH to (12) LH 1,065 (41.93)
(6)
(6)
(5)
(5)
(4)
(4)
(1)
(3)
(2)
(9)
(10)
(13)
BS-00037
(2)
(13)
(11)
(10)
(12)
(14)
(15)
(3)
(9)
(8)
(7)
(8)
(12)
