AB-28
AIRBAG SYSTEM (DIAGNOSTIC)

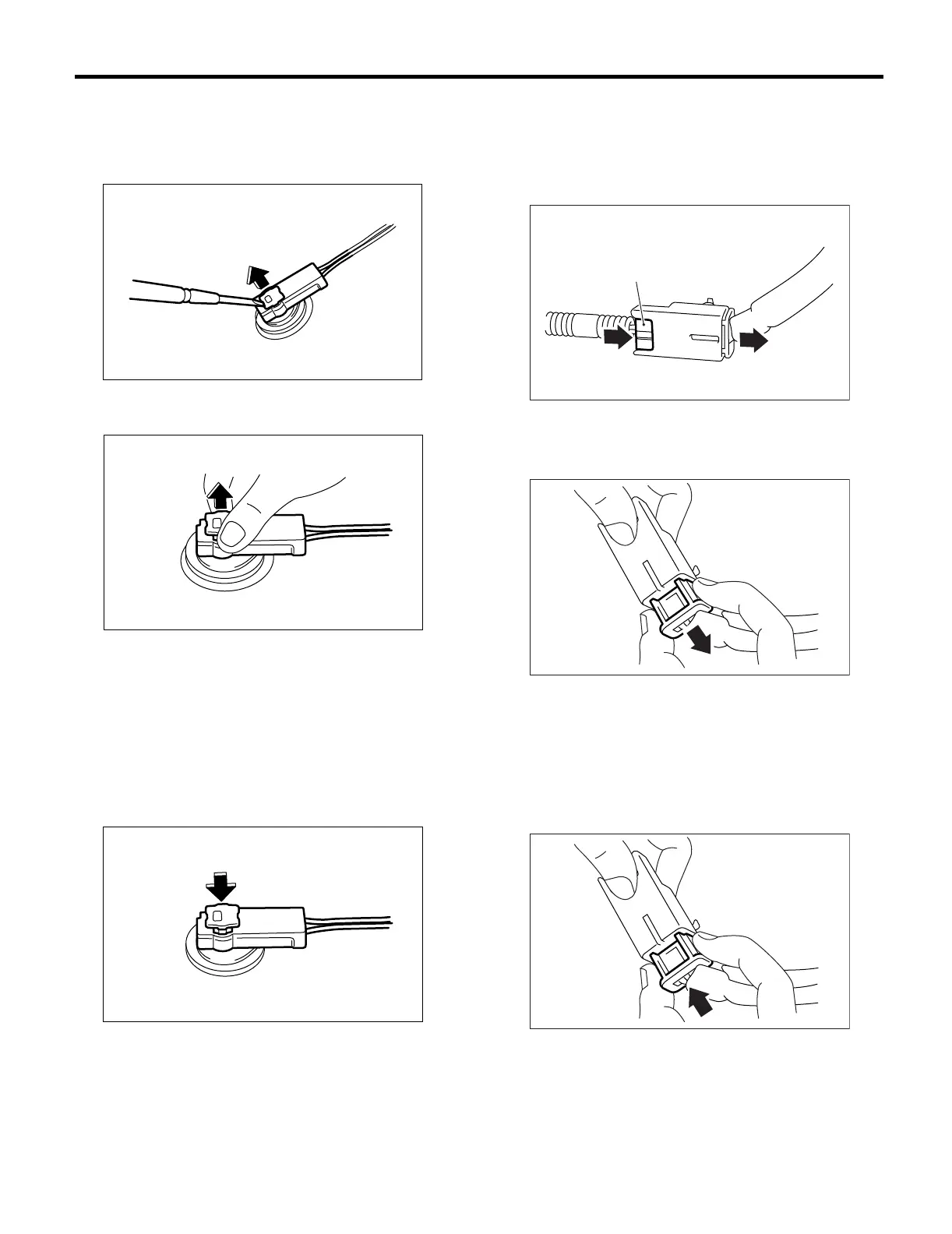

Airbag Connector
3. DRIVER’S AIRBAG, PRETENSIONER
1) How to disconnect:
(1) Using a flat tip screwdriver, pry the push
lock upward to unlock.
(2) Pull the connector to disconnect from driv-
er’s side airbag module assembly.
2) How to connect:
Connect the connector in reverse order of discon-
necting. At this time, be sure to insert the connector
in until connecting sound is heard.
CAUTION:
• Be sure to insert the connector in until it
locks. Then pull on it gently to make sure that it
is locked.
• Be sure to insert the push lock.
4. PASSENGER’S AIRBAG
1) How to disconnect:
(1) Push the lock arm (A).
(2) With the lock arm (A) pushed in, pull the
connector in direction of arrow to separate.
CAUTION:
When disconnecting the connector, be sure to
hold onto the connector and not the wire.
2) How to connect:
Holding the connector, and push it in carefully until
a connecting sound is heard.
CAUTION:
Be sure to insert the connector in until it locks.
Then pull on it gently to make sure that it is
locked.
AB-00478
AB-00479
AB-00480
AB-00021
(A)
AB-00022
AB-00023
To Next Page
