AB-29
AIRBAG SYSTEM (DIAGNOSTIC)
Airbag Connector

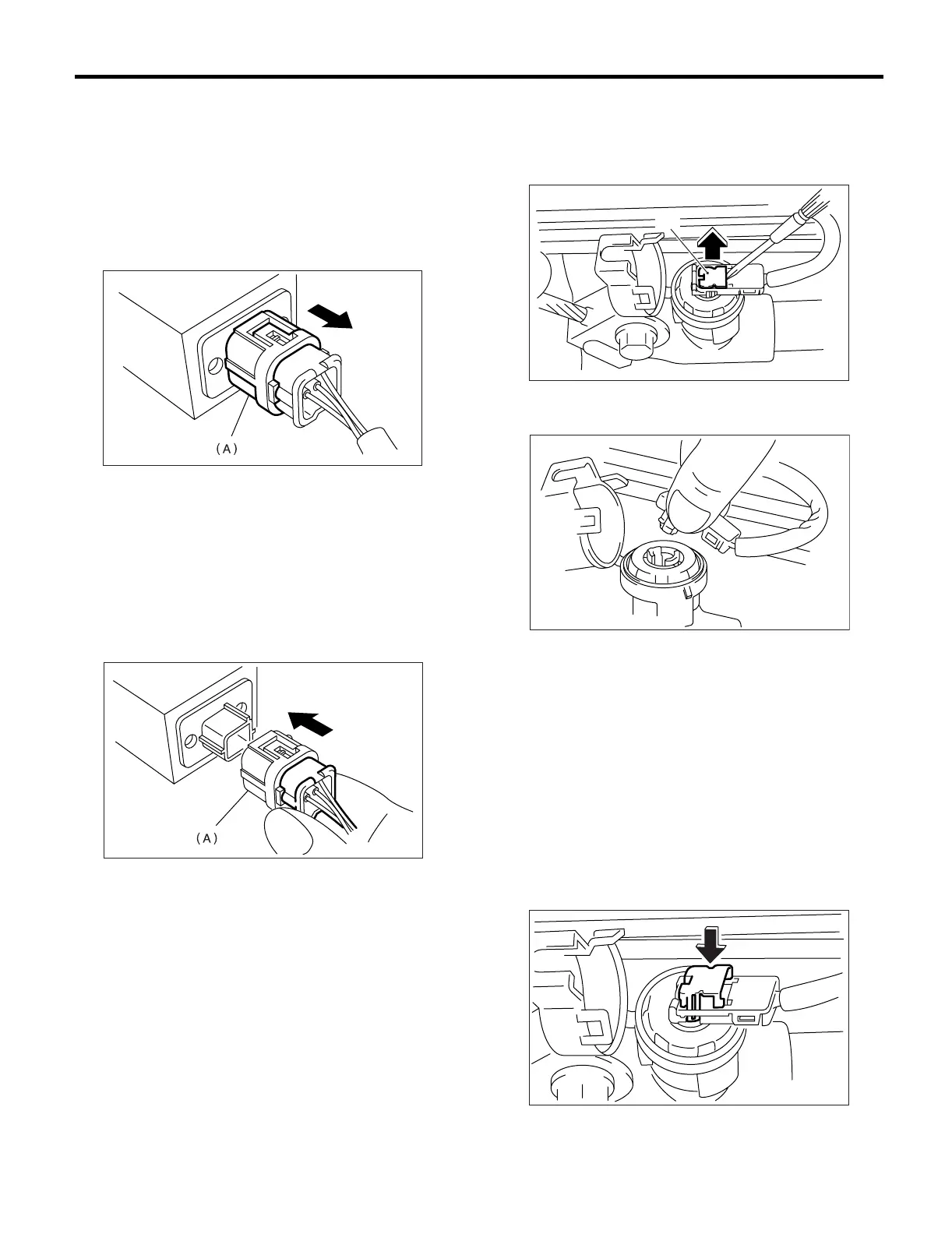

5. FRONT SUB-SENSOR AND SIDE AIR-
BAG SENSOR
1) How to disconnect:
Holding outer part (A), pull it in the direction of the
arrow.
CAUTION:
When pulling, be sure to hold onto the connec-
tor and not the wire.
2) How to connect:
Holding the connector, and push it in carefully until
a connecting sound is heard.
CAUTION:
• Outer (A) moves back, and so do not put your
hand on the outer part.
• Be sure to insert the connector in until it
locks. Then pull on it gently to make sure that it
is locked.
6. LAP PRETENSIONER
1) How to disconnect:
(1) Using a flat tip screwdriver, pry the push
lock (A) upward to unlock.
(2) Pull the connector to disconnect from lap
pretensioner.
CAUTION:
When pulling the side lock, be sure to hold onto
the connector and not the wire.
2) How to connect:
Connect the connector in reverse order of discon-
necting. At this time, be sure to insert the connector
in until connecting sound is heard.
CAUTION:
• Be sure to insert the connector in until it
locks.
Then pull on it gently to make sure that it is
locked.
• Be sure to push the push lock in.
AB-00024
AB-00025
AB-00115
(A)
AB-00026
AB-00027
