Front Door Glass

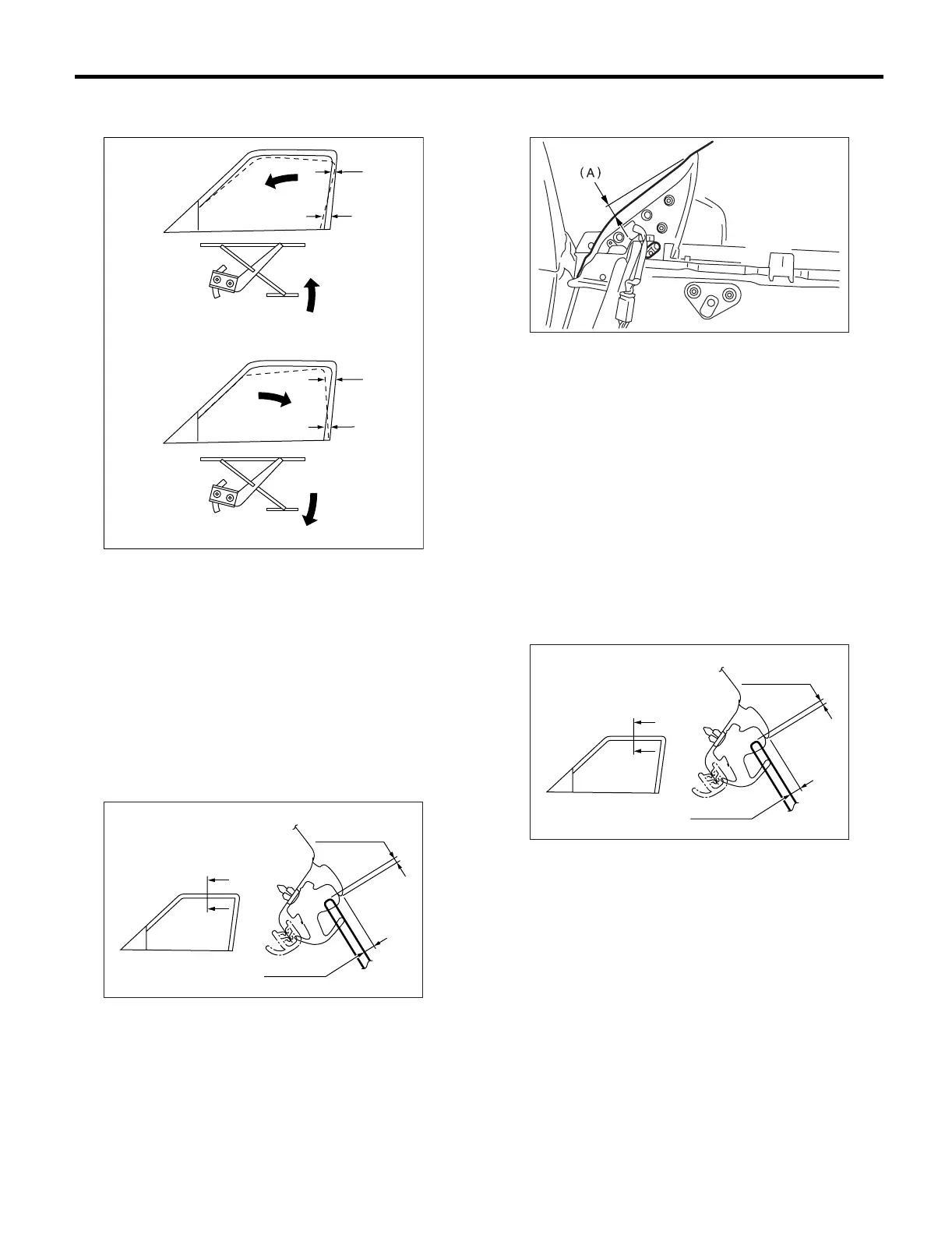

6) Adjust so that the upper and lower ends of cen-
ter pillar are the same size.
7) For glass stroke adjustment, close the door, raise
glass until positional relationship between glass and
weather strip becomes as shown. And secure the
glass so that the upper stopper lightly touches the
glass holder.
For preventing wind noise, adjust the glass at the
position where tip of gusset is raised up a little.
8) After stabilizer adjustment, carry out the glass
crimp adjustment. First, visually ensure positional
relationship between retainer & molding and glass
of the roof side, and then begin with rear sash ad-
justment. Adjust two adjusting bolts alternately step
by step to obtain dimensions shown below (cross-
section A).
NOTE:
If two nuts are loosened at the same time, sash
moves back and forth. Therefore, when one nut is
adjusted, secure the other.
9) Make the same adjustment of two adjusting bolts
of rear sash.
(1) Narrow
(2) Wide
(3) Glass tilts too far rearward
(4) Glass tilts too far forward
(5) Raise B channel
(6) Lower B channel
(1) 3.5±0.8 mm (0.137±0.031 in)
(2) 9.5±1 mm (0.374±0.039 in)
GW-00139
(6)
(5)
(4)
(1)
(2)
(1)
(2)
(3)
A
A
(1)
(2)
GW-00066
(A) 0 — 1.5 mm (0 — 0.059 in)
(1) 3.5±0.8 mm (0.137±0.031 in)
(2) 9.5±1 mm (0.374±0.039 in)
GW-00024
A
A
(1)
(2)
GW-00066
To Next Page
