GW-16
GLASS/WINDOW/MIRROR
Remote Control Mirror Switch
C: INSPECTION

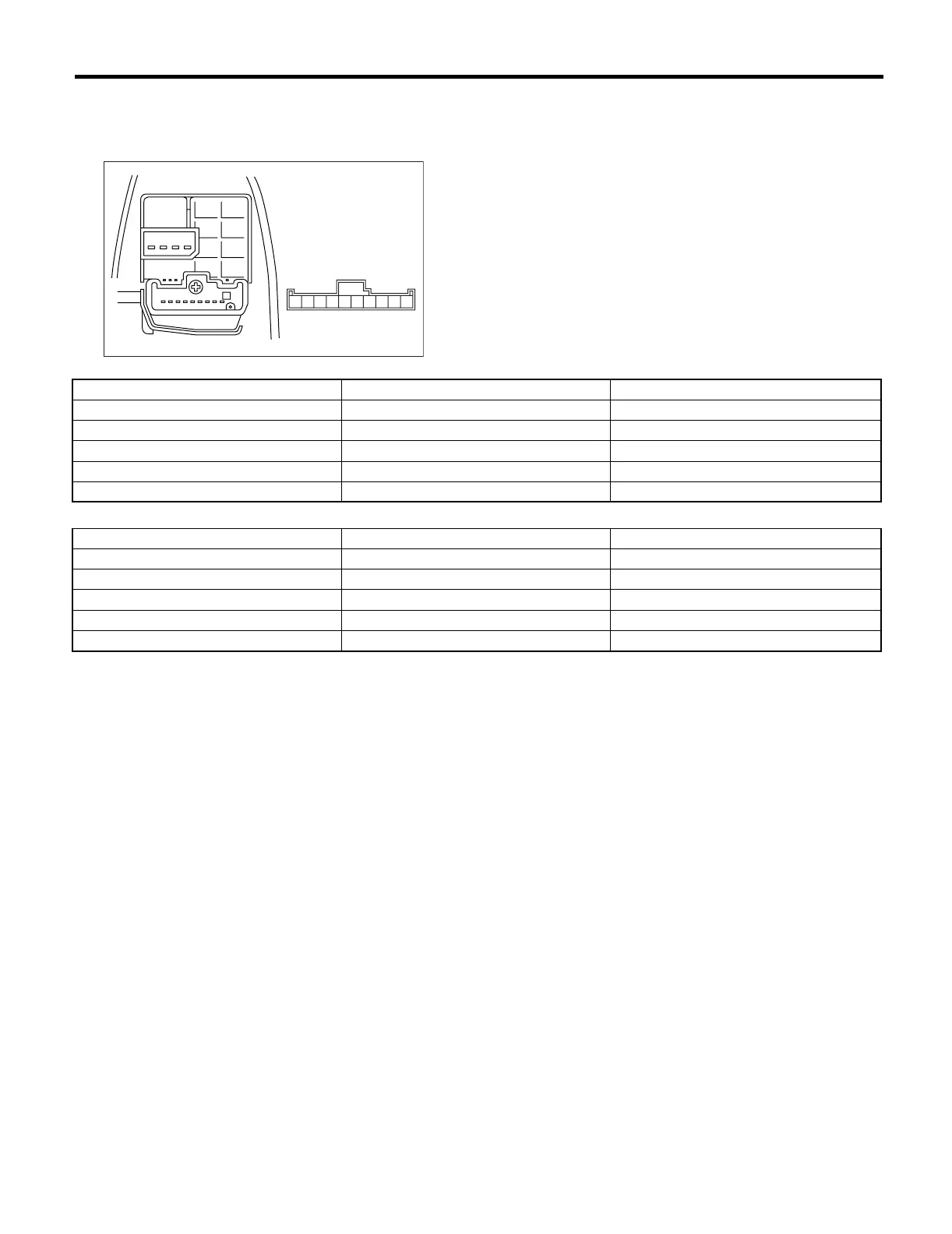

Move the rearview mirror switch to each position
and check continuity between terminals.
Change over switch right position:
Change over switch left position:
If NG, replace the switch.
GW-00012
1
2
34
5
6
7
89
10
Switch position Terminal No. Standard
OFF — More than 1MΩ
UP 8 and 3, 6 and 7 Less than 1Ω
DOWN 8 and 6, 3 and 7 Less than 1Ω
LEFT 8 and 2, 6 and 7 Less than 1Ω
RIGHT 8 and 6, 2 and 7 Less than 1Ω
Switch position Terminal No. Standard
OFF — More than 1MΩ
UP 8 and 4, 6 and 7 Less than 1Ω
DOWN 8 and 6, 4 and 7 Less than 1Ω
LEFT 8 and 5, 6 and 7 Less than 1Ω
RIGHT 8 and 6, 5 and 7 Less than 1Ω
