Subaru Forester 2004 - Page 397

SL-3
SECURITY AND LOCK
General Description

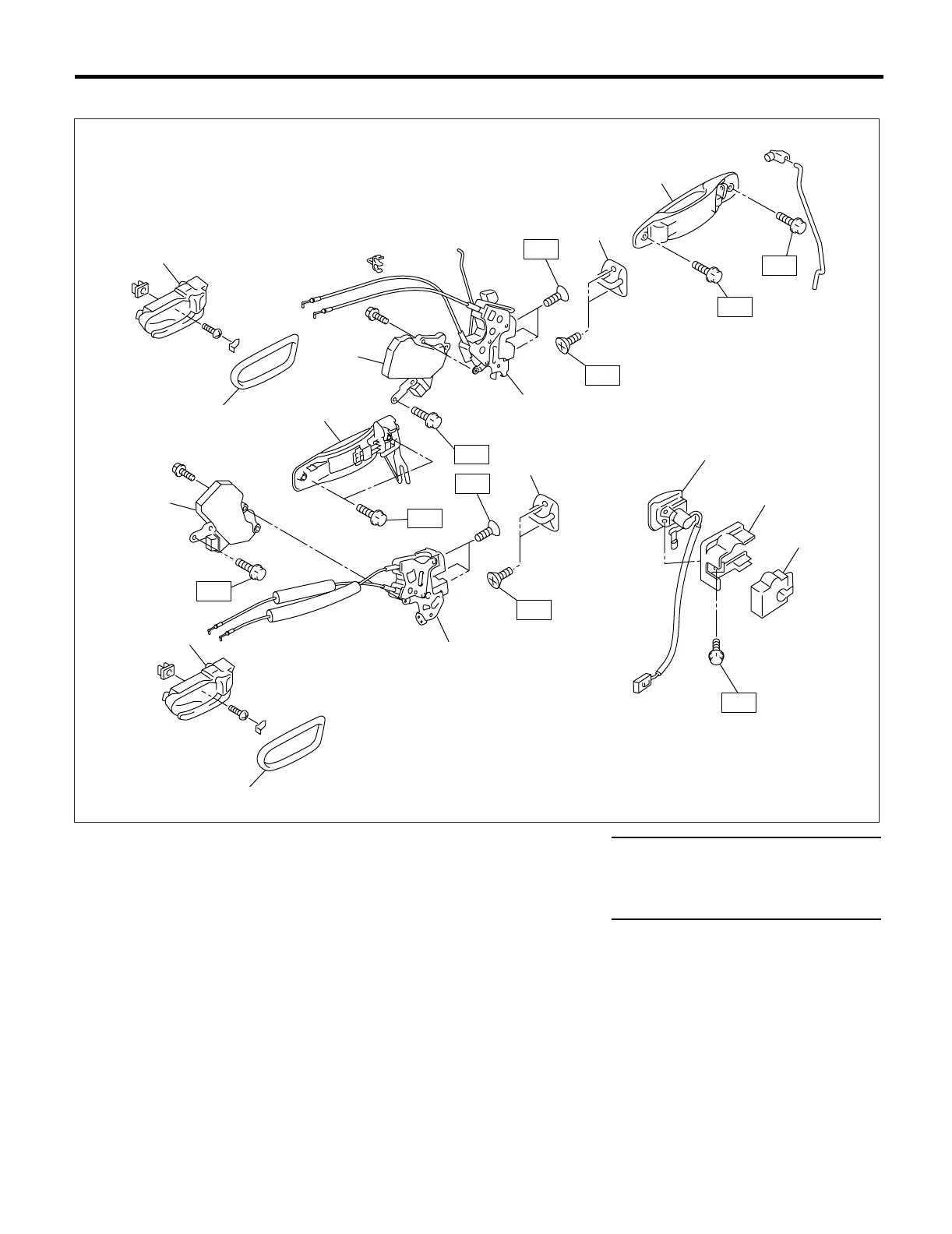

With double lock:
(1) Inner remote ASSY (6) Door outer handle Tightening torque: N ⋅ m (kgf-m, ft-lb)
(2) Inner remote cover (7) Key cylinder (switch) T1: 6.4 (0.65, 4.7)
(3) Auto-door lock actuator (8) Key cylinder retainer T2: 7.4 (0.75, 5.5)
(4) Door latch (9) Key cylinder retainer cover T3: 17.6 (1.8, 13.0)
(5) Striker
SL-00289
T1
T1
T3
T3
T2
T2
(1)
(2)
(1)
(2)
(3)
(4)
(4)
(5)
(5)
(3)
(6)
(6)
(7)
(8)
(9)
T2
T2
T2
T2
