EXTERIOR BODY PANEL
General Description

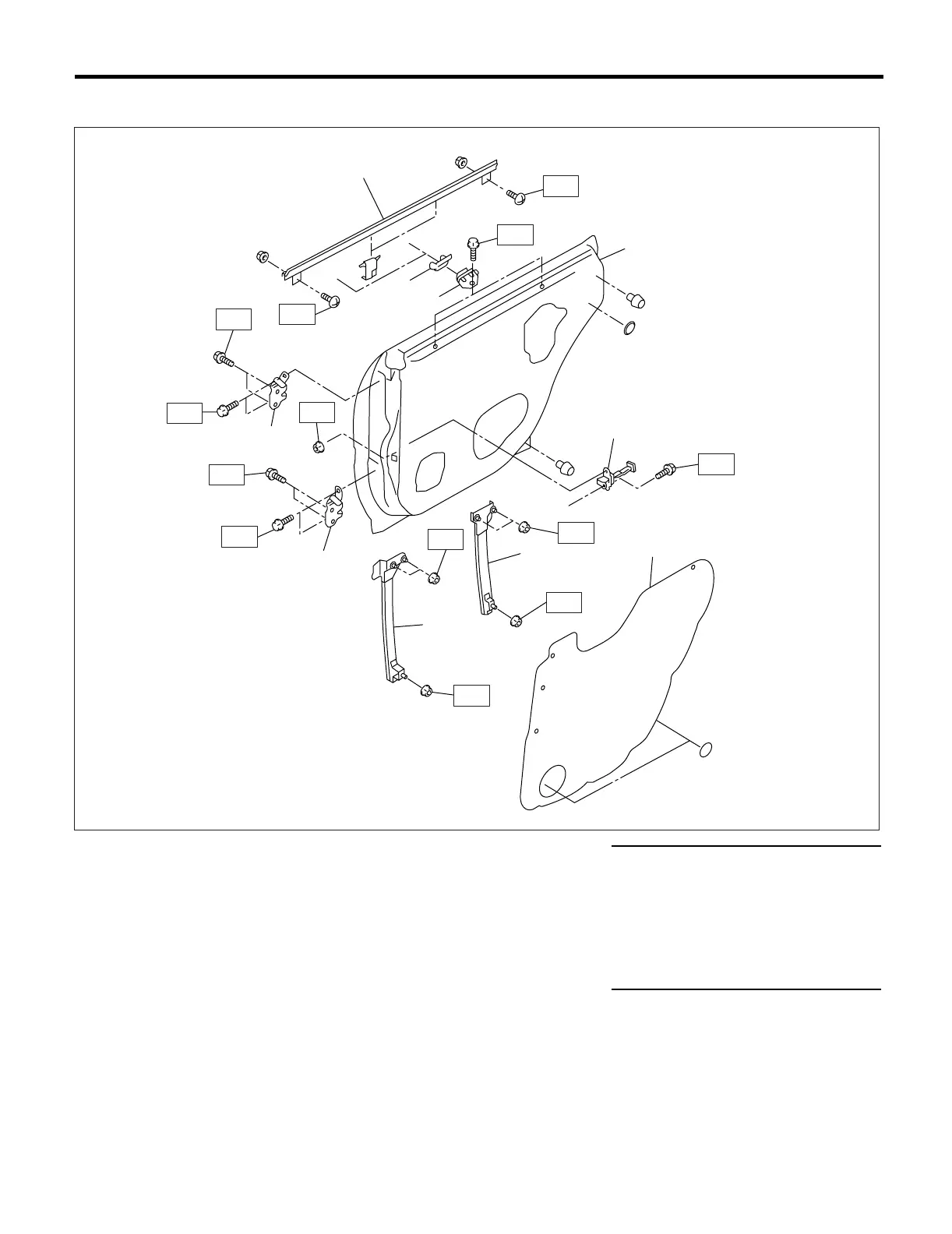

4. REAR DOOR PANEL
(1) Weather strip (8) Rear sash Tightening torque: N·m (kgf-m, ft-lb)
(2) Stabilizer (Outer) (9) Lower hinge T1: 7.5 (0.76, 5.5)
(3) Stabilizer (Inner) (10) Upper hinge T2: 25 (2.5, 18)
(4) Door panel T3: 30 (3.1, 18)
(5) Checker T4: 33 (3.4, 24)
(6) Sealing cover T5: 14 (1.4, 10.3)
(7) Front sash T6: 1.5 (0.15, 1.1)
EB-00174
T1
T6
T1
(1)
(3)
(7)
T2
T2
T6
T5
T3
T4
T3
(10)
(4)
(5)
(6)
(9)
T5
(8)
(2)
T5
T5
