Subaru Forester 2004 - Page 503

EB-5
EXTERIOR BODY PANEL
General Description

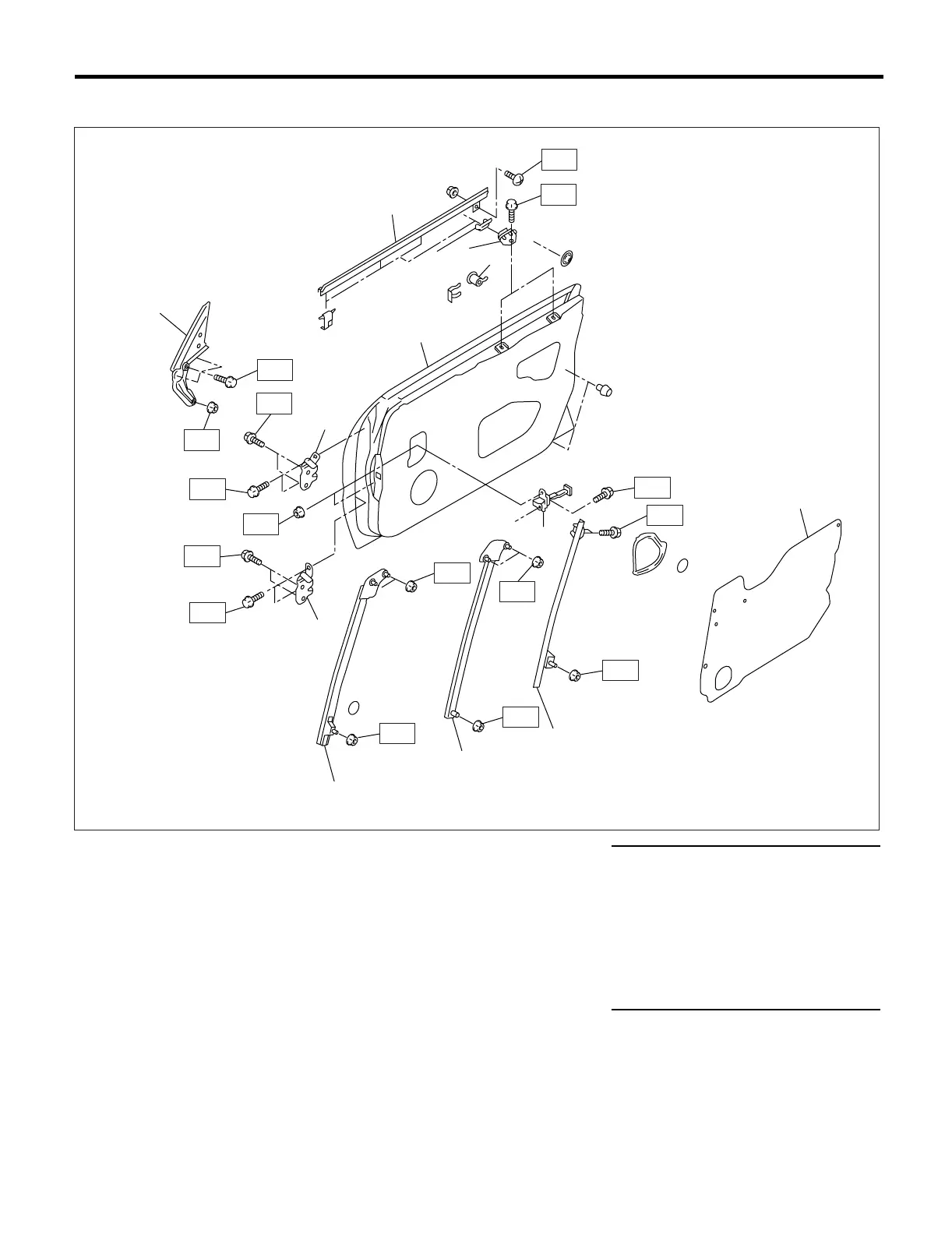

3. FRONT DOOR PANEL
(1) Gusset (9) Upper hinge Tightening torque: N·m (kgf-m, ft-lb)
(2) Weather strip (10) Key cylinder (Driver’s side only) T1: 7.5 (0.76, 5.5)
(3) Stabilizer (Outer) (11) Front sash T2: 14 (1.4, 10.3)
(4) Stabilizer (Inner) (12) Rear sash T3: 25 (2.5, 18)
(5) Door panel (13) Guide rail T4: 30 (3.1, 22)
(6) Checker T5: 33 (3.4, 24)
(7) Sealing cover T6: 6 (0.6, 4.4)
(8) Lower hinge T7: 1.5 (0.15, 1.1)
EB-00183
T1
T6
T6
T3
T3
T4
T5
T4
(4)
(2)
(1)
(9)
(5)
(6)
(13)
(12)
(7)
(11)
(8)
(10)
T6
T6
T2
T2
T2
T2
T1
(3)
T7
