AB-20
AIRBAG SYSTEM (DIAGNOSTIC)

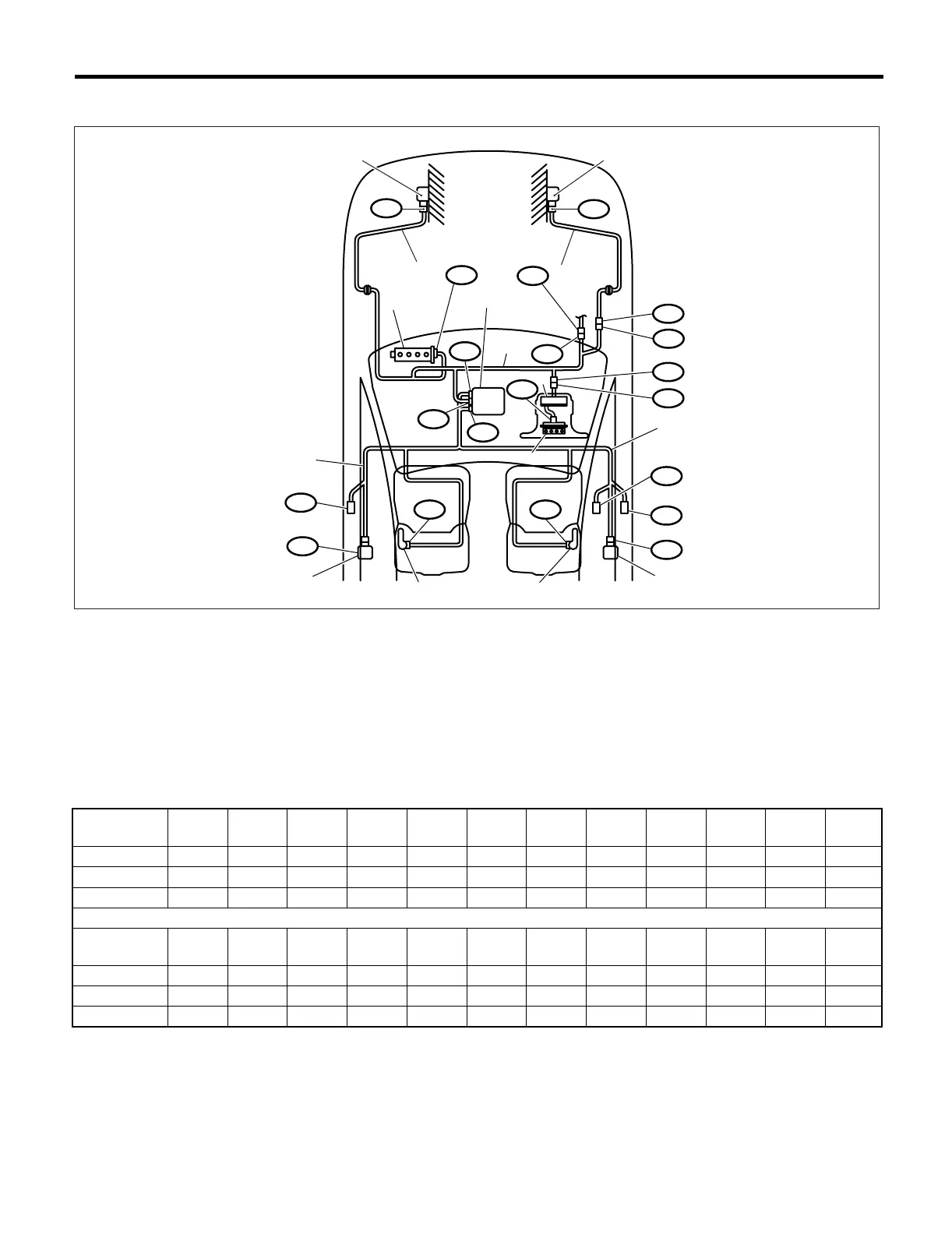

Electrical Components Location
2. RHD MODEL
(a) To body harness (b) To seat belt pretensioner (LH) (c) To seat belt pretensioner (RH)
(1) Front sub sensor (LH) (6) Passenger’s airbag inflator (13) Side airbag sensor (RH)
(2) Front sub sensor (RH) (7) Roll connector (14) Side airbag inflator (LH)
(3) Front sub sensor harness (LH) (8) Airbag main harness (15) Side airbag inflator (RH)
(4) Front sub sensor harness (RH) (9) Driver’s airbag inflator (16) Lap pretensioner
(5)
Airbag control module with built-in
safety and electric sensor
(10) Side airbag harness (LH)
(12) Side airbag sensor (LH)
Connector
No.
(AB1) (AB2) (AB3) (AB4) (AB7) (AB8) (AB9) (AB10) (AB11) (AB12) (AB13) (AB14)
Pole 622841212242422
Color Yellow Yellow Yellow Yellow Yellow Yellow Yellow Yellow Yellow Yellow Yellow Yellow
Male/Female Male Female Female Female Female Female Female Female Female Female Female Male
Connector
No.
(AB15) (AB18) (AB19) (AB20) (AB21) (AB25) (AB26)
Pole 2222222
Color Yellow Yellow Yellow Yellow Yellow Orange Orange
Male/Female Female Female Female Female Female Female Male
AB-00738
(1)
(2)
(5)
(6)
(8)
(7)
(11)
(13)
(12)
(10)
(b)
(c)
(a)
(9)
(14)
(15)
(3)
(4)
(16)
AB14
AB15
AB13
AB26
AB21
B31
AB2
AB25
AB20
AB12
AB18
AB7
AB1
AB3
AB8
AB19
AB10
AB11AB9
AB4
