WW-10
WIPER AND WASHER SYSTEM
Wiper Blade

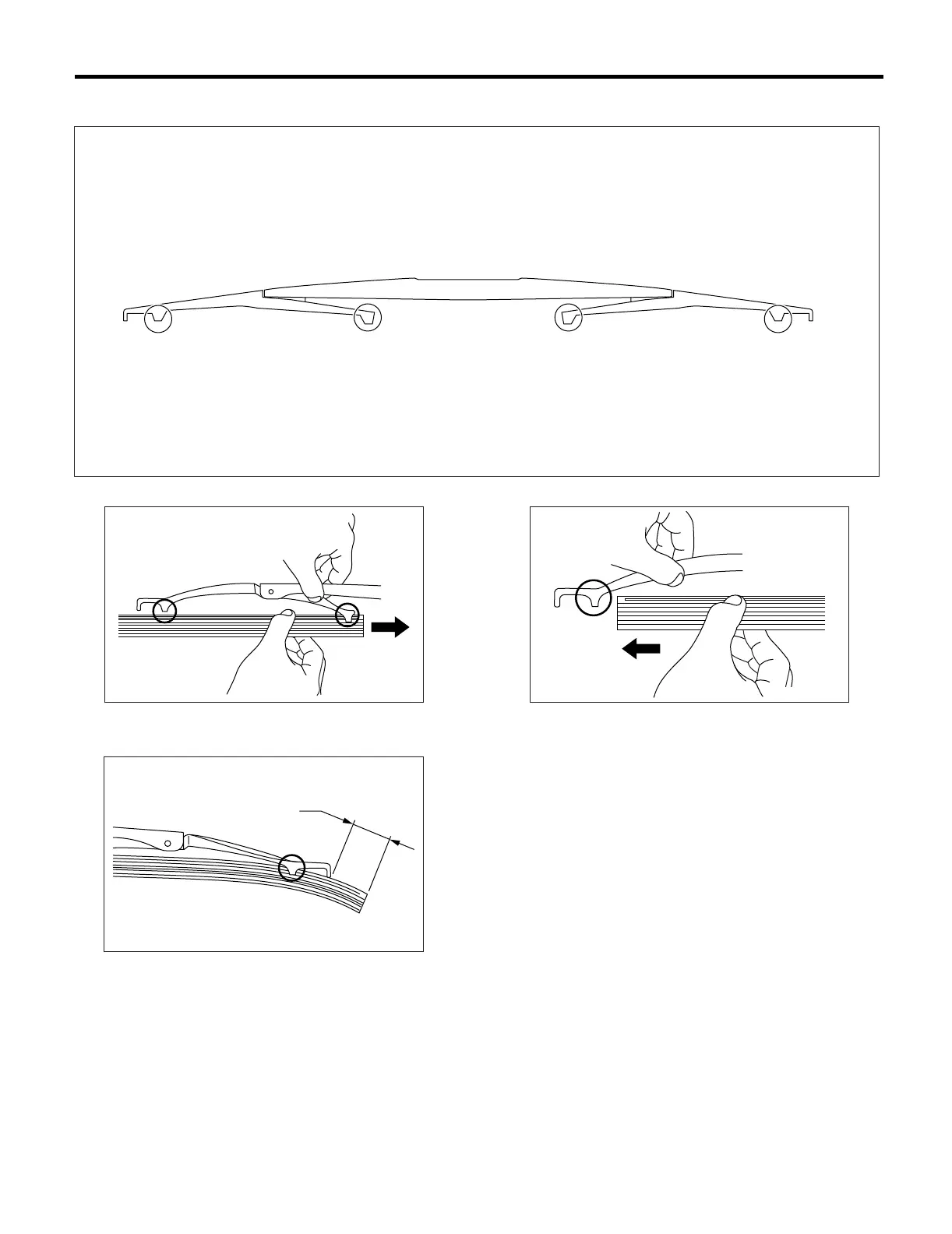

2. RESIN TYPE
1) Insert the wiper rubber through the claw (B).
2) Insert the wiper rubber top until it protrudes about
20 mm (0.79 in) from the stopper (D).
3) Insert the wiper rubber into the claw (A).
E: INSPECTION
1) When the wiper does not perform well, inspect
the following:
• Make sure the movable part of the blade assem-
bly moves smoothly.
• Make sure the wiper rubber is not deformed or
damaged.
2) Replace with a new part if damage is found.
WW-00193
ABCD
(A) 20 mm (0.79 in)
WW-00198
A
B
WW-00199
D
(A)
A
WW-00147
