HVAC SYSTEM (HEATER, VENTILATOR AND A/C)
General Description
• RHD MODEL WITH AUTO A/C

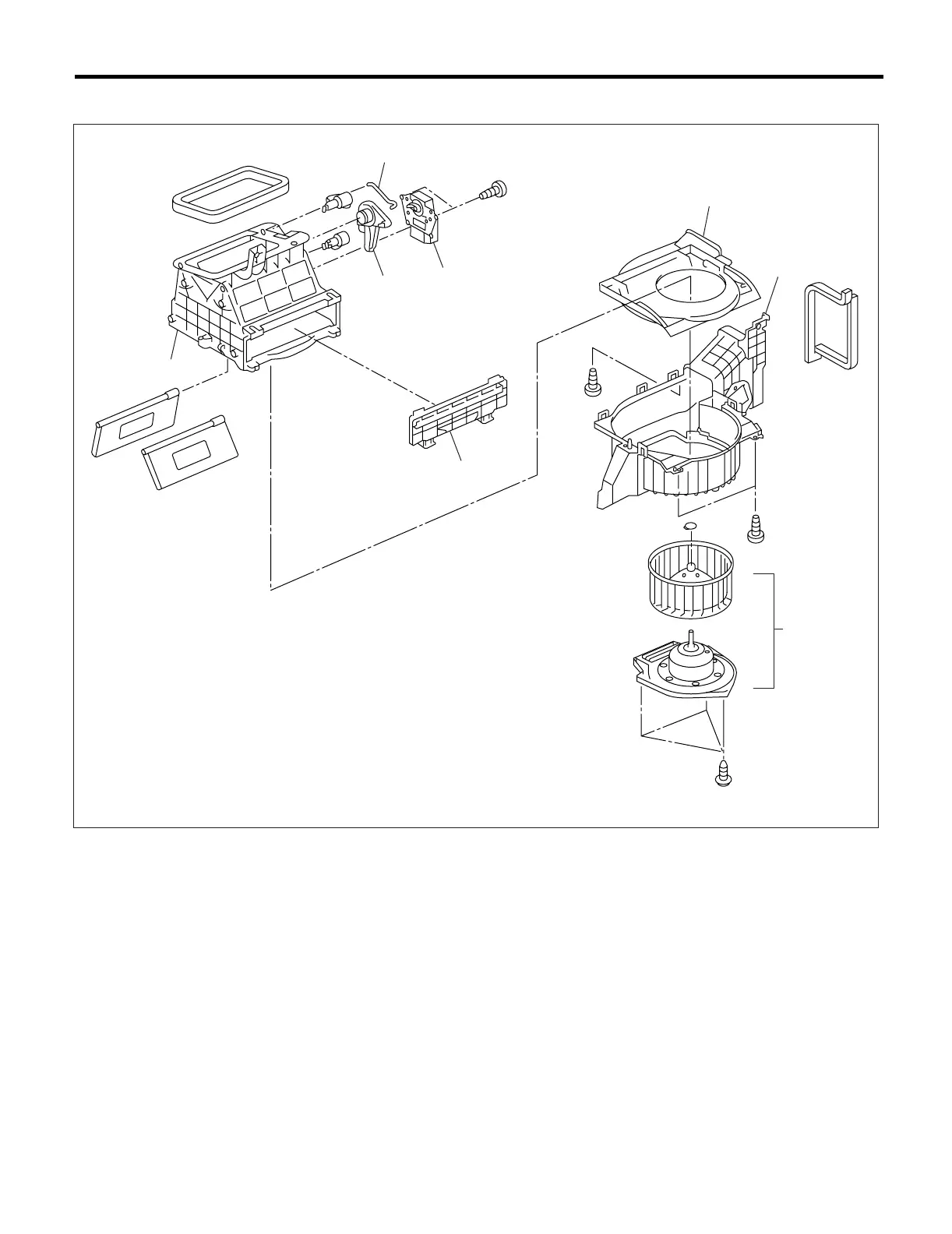

(1) Upper case (4) Link lever (7) Lower case
(2) Air inlet select actuator (5) Filter cover (8) Blower motor ASSY
(3) Air inlet select link (6) Cover
AC-00332
(1)
(5)
(3)
(2)
(4)
(6)
(7)
(8)
