AB-5
AIRBAG SYSTEM (DIAGNOSTIC)
General Description

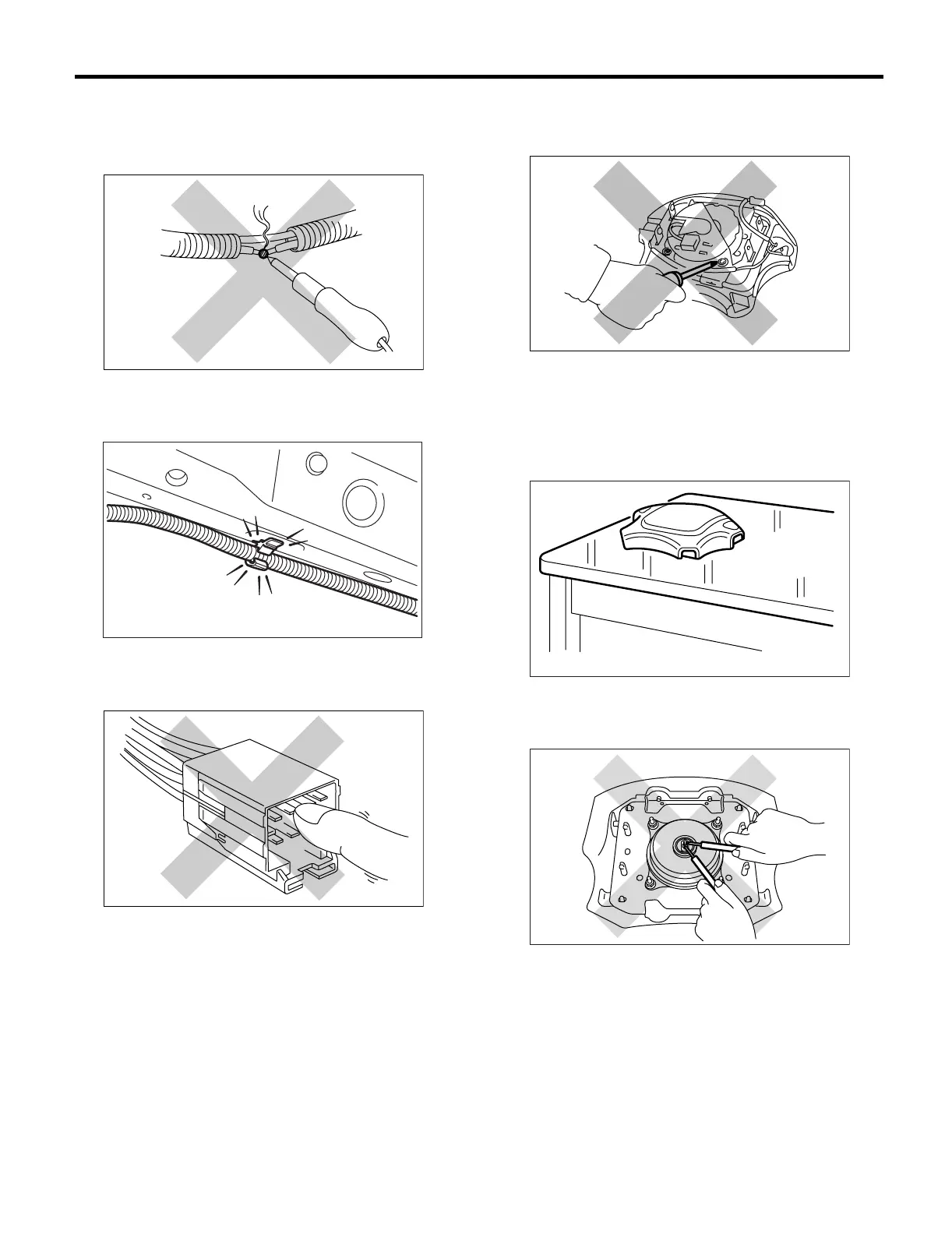

• If any damage, opening, or rust is found on the
airbag system wiring harness, do not attempt to re-
pair using soldering equipment. Be sure to replace
the faulty harness with a new genuine part.
• Install the wiring harness securely with the spec-
ified clips to avoid interference or tangled up with
other parts.
• Do not allow water or oil to come in contact with
the connector terminals. Do not touch the connec-
tor terminals.
• Either of the airbag modules for driver, passen-
ger or side, or pretensioner must not be disassem-
bled.
• The airbag module cannot be used again once
inflated.
• After removal, keep the airbag module with the
pad facing upward on a dry, clean, and flat surface
away from heat and light sources, and moisture
and dust.
• Do not check continuity of either of the airbag
modules for driver, passenger or side, or preten-
sioner.
AB-00124
AB-00125
AB-00126
AB-00127
AB-00056
AB-00006
To Next Page
