Subaru Forester 2004 - Page 259

LI-15
LIGHTING SYSTEM
Headlight Assembly

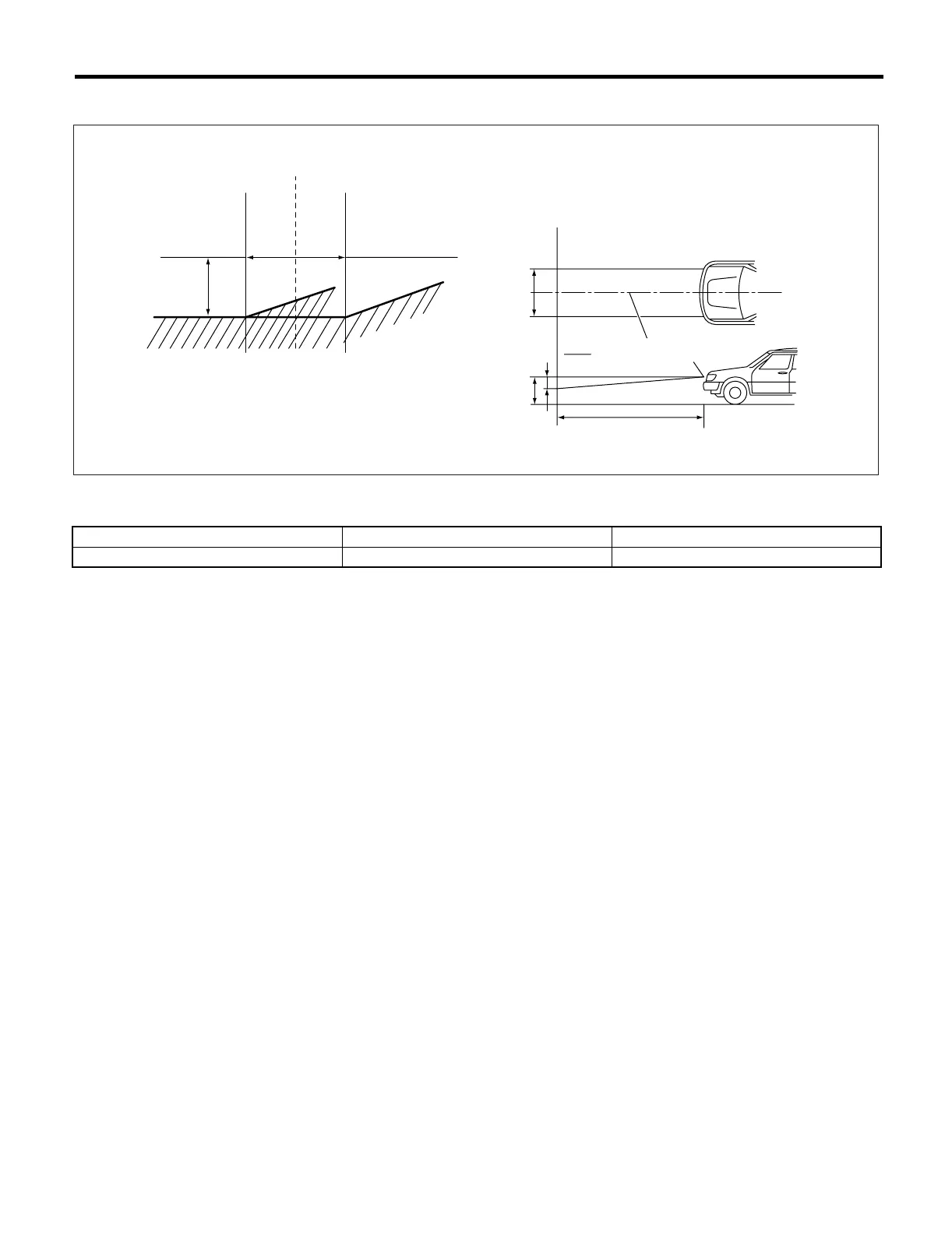

• This illustration is for LHD model. The pattern for RHD model is symmetrically opposite.
(A) Vehicle center (B) Bulb center
W mm (in) H mm (in) h mm (in) at 3 m (10 ft)
1,140 (44.88) 733 (28.9) 30 (1.18)
LI-00054
H
H
W1
W
W
W2
W2
W1
(A)
(A)
3m (10 ft)
(B)
h
h
