WW-7
WIPER AND WASHER SYSTEM

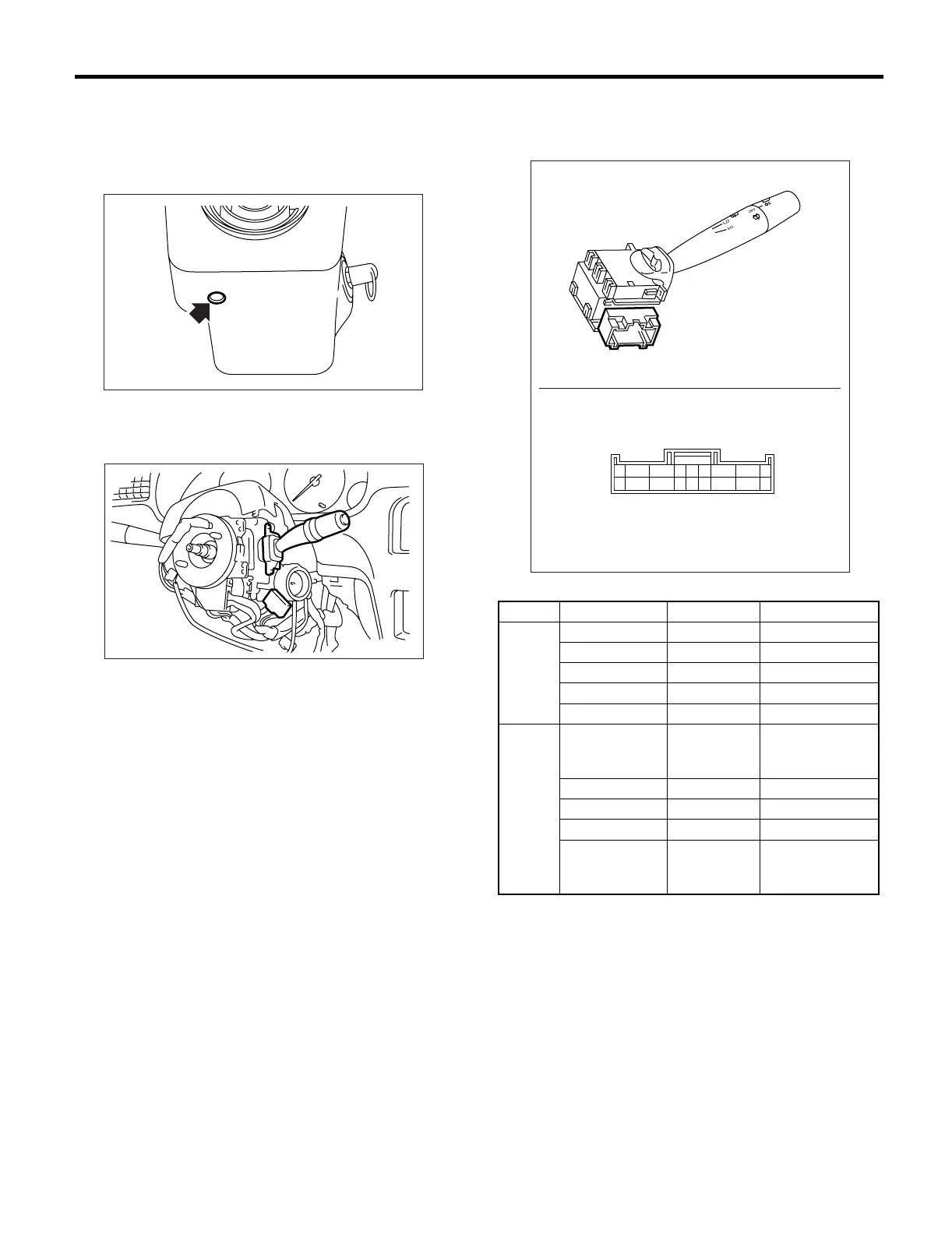

Combination Switch (Wiper)
3. Combination Switch (Wiper)
A: REMOVAL
1) Loosen the screw to remove the steering column
cover.
2) Disconnect the connectors from combination
switches.
3) Loosen the screw to remove combination switch.
B: INSTALLATION
Install in the reverse order of removal.
C: INSPECTION
1) Inspect the continuity between each connector
terminal.
LHD and RHD for Europe model:
WW-00004
WW-00045
Switch position Terminal No. Standard
FRONT
OFF 7 and 16 Less than 1 Ω
INT 7 and 16 Less than 1 Ω
LO 7 and 17 Less than 1 Ω
HI 8 and 17 Less than 1 Ω
Washer ON 2 and 11 Less than 1 Ω
REAR
Washer ON
2 and 10
10 and 12
2 and 12
Less than 1 Ω
OFF — More than 1 MΩ
INT 2 and 13 Less than 1 Ω
ON 2 and 10 Less than 1 Ω
Washer ON
2 and 10
10 and 12
2 and 12
Less than 1 Ω
WW-00046
876543219
17 16 15 14 13 12 11 1018
