Windshield Glass
B: INSTALLATION
1) Clean the external circumference of windshield
glass with alcohol or white gasoline.
2) Remove the adhesive layer on the body using
cutter knife to obtain smooth face 2 mm (0.08 in)
thick.
CAUTION:
Be careful not to damage the body and paint
surface.
3) Clean the body with alcohol or white gasoline to
remove thoroughly chips, dusts and dirts from body
face.
4) Apply the dam rubber to back of glass.
5) Remove the backing of double-faced adhesive
tape, and then align the molding mark (B) to notch
(A). Attach the molding around the edge of glass,
and then press it evenly to fit.

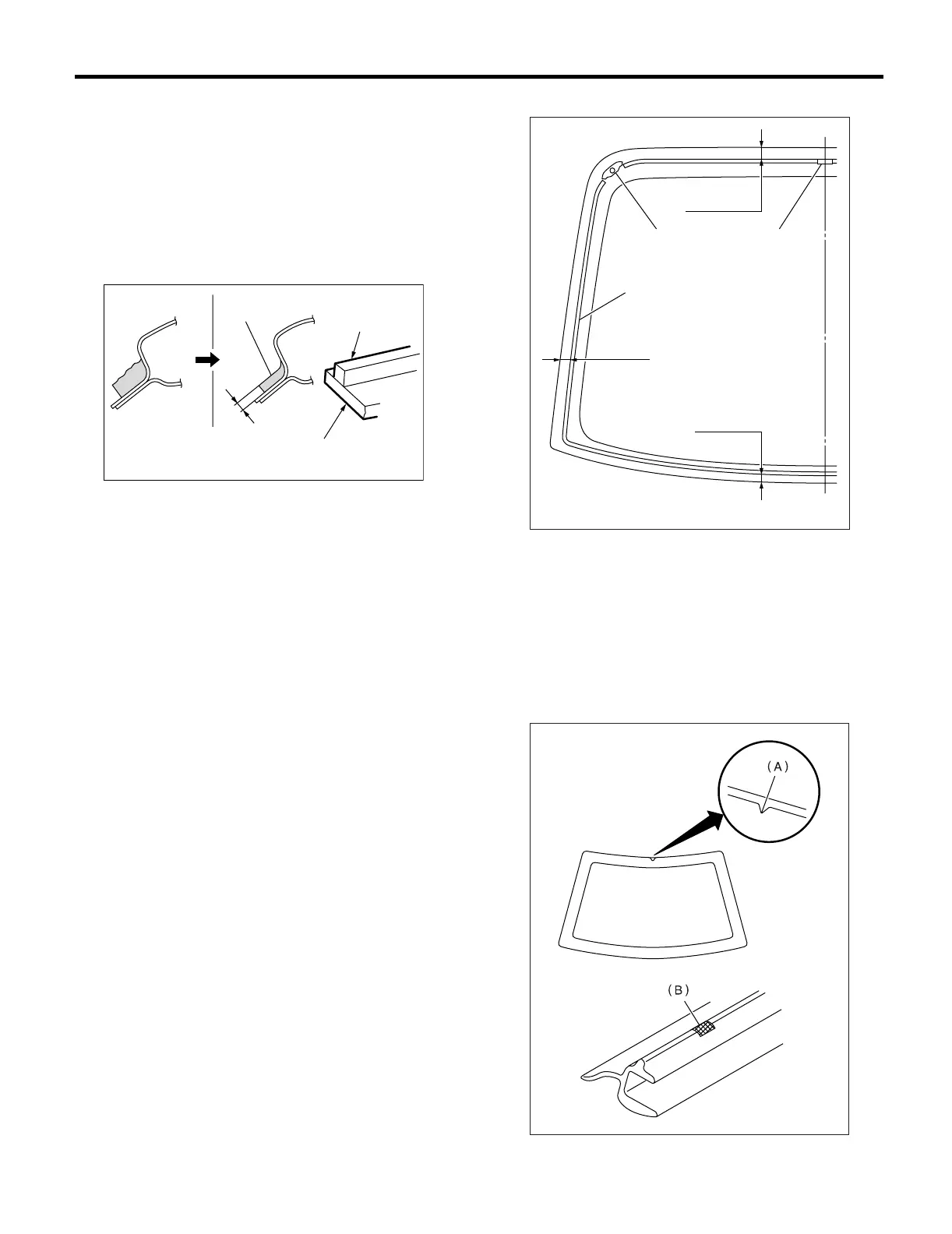

(1) Adhesive
(2) 2 mm (0.08 in)
(3) Dam rubber
(4) Glass
(4)
(2)
(1)
(3)
GW-00071
(1) Matching pin
(2) Dam rubber
(3) Fastener
(4) 13 mm (0.512 in)
(1)
(2)
(3)
(4)
(4)
(4)
GW-00072
GW-00042
