SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF)
General Description
1. General Description
A: COMPONENT

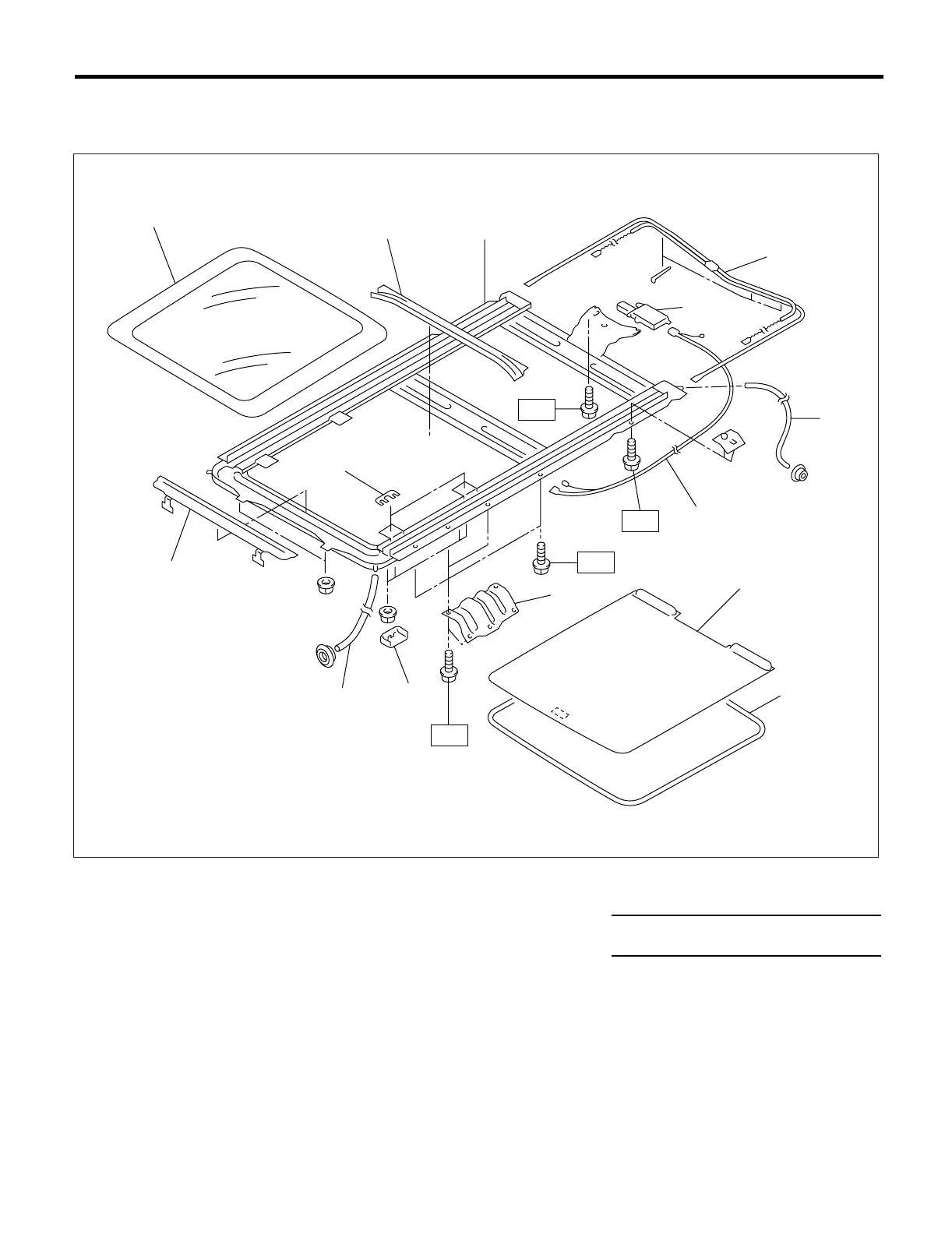

(1) Sunroof lid (7) Harness (13) Shim
(2) Rear drain ASSY (8) Sunshade
(3) Frame ASSY (9) Garnish Tightening torque: N·m (kgf-m, ft-lb)
(4) Motor ASSY (10) Frame bracket T: 7.4 (0.75, 5.4)
(5) Drive unit (11) Cover
(6) Drain tube (12) Deflector
