SR-9
SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF)

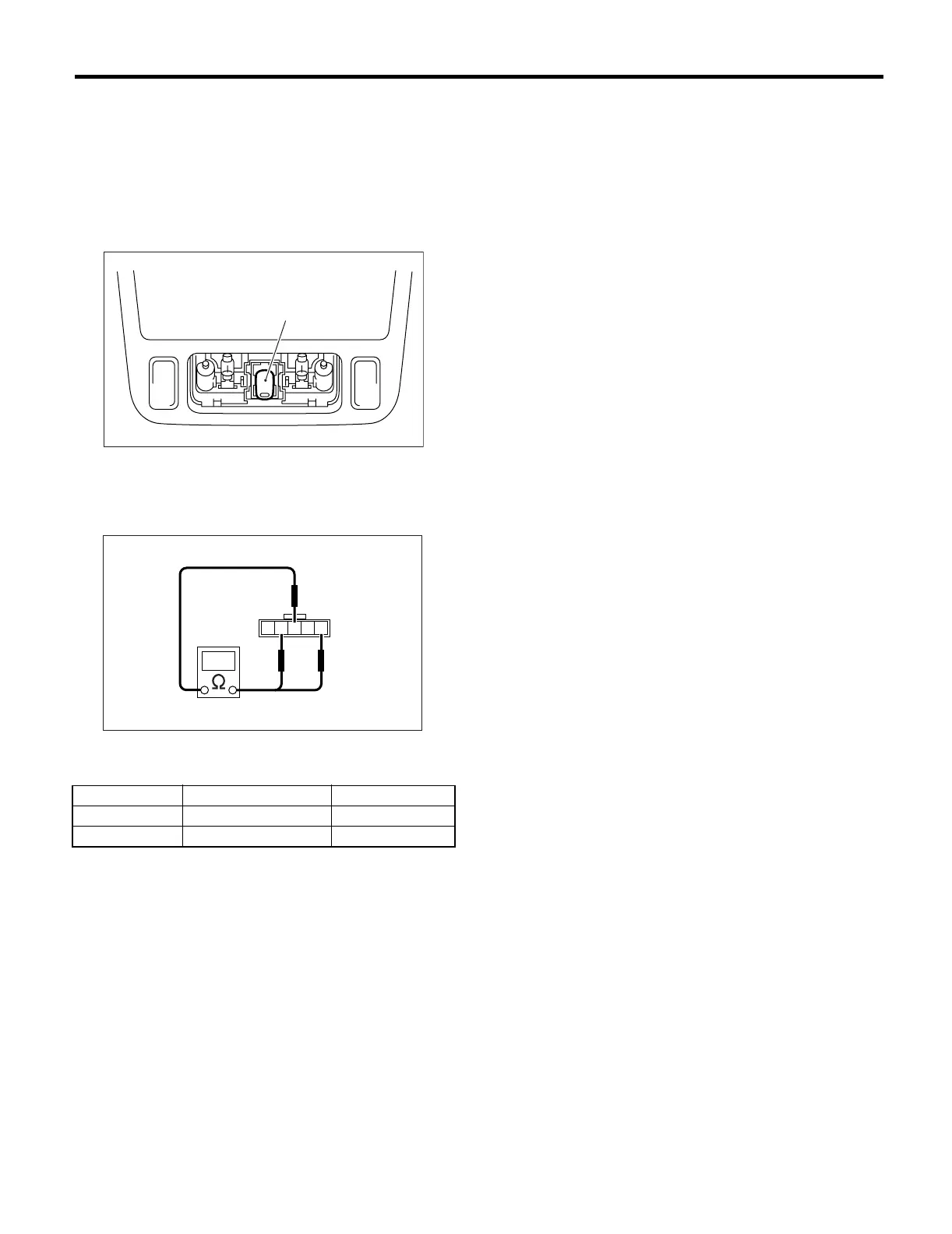

Sunroof Switch
6. Sunroof Switch
A: REMOVAL
1) Disconnect ground cable from battery.
2) Remove the spot map light. <Ref. to LI-29, RE-
MOVAL, Spot Map Light.>
3) Disconnect harness connectors and remove
sunroof switch (A).
B: INSTALLATION
Install in the reverse order of removal.
C: INSPECTION
Check continuity between terminals when operat-
ing the switch.
Switch Terminal No. Standard value
Open 1 — 3 Less than 1 Ω
Close 3 — 4 More than 1 MΩ
SR-00017
(A)
2 145 3
SR-00011
