CRUISE CONTROL SYSTEM (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
D: DTC 35 AND 36 ACTUATOR MOTOR
DIAGNOSIS:
Open or poor contact of cruise control actuator motor.
TROUBLE SYMPTOM:
Cruise control cannot be set. (Cancelled immediately.)

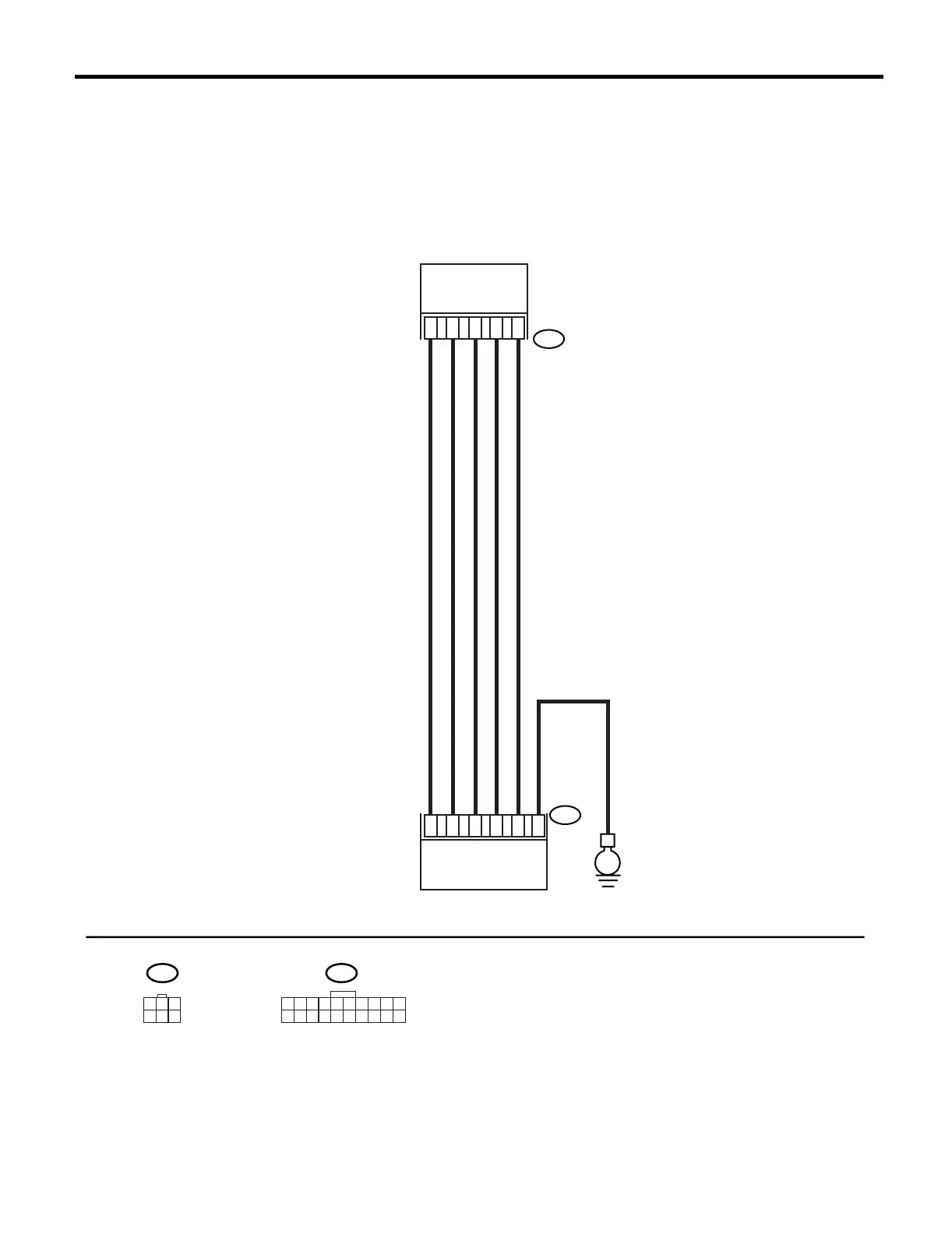

WIRING DIAGRAM:
CC-00036
B7
B94
1 2 3
4 5 6
123456789 10
11 12 13 14 15 16 17 18 19 20
E
B7
B94
CRUISE CONTROL
MODULE
CRUISE CONTROL
ACTUATOR
11
7 5
13 14
4 1 5 2 3 6
