CRUISE CONTROL SYSTEM (DIAGNOSTIC)
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
E: DTC 16 IGNITION SWITCH
TROUBLE SYMPTOM:
Cruise control cannot be set.

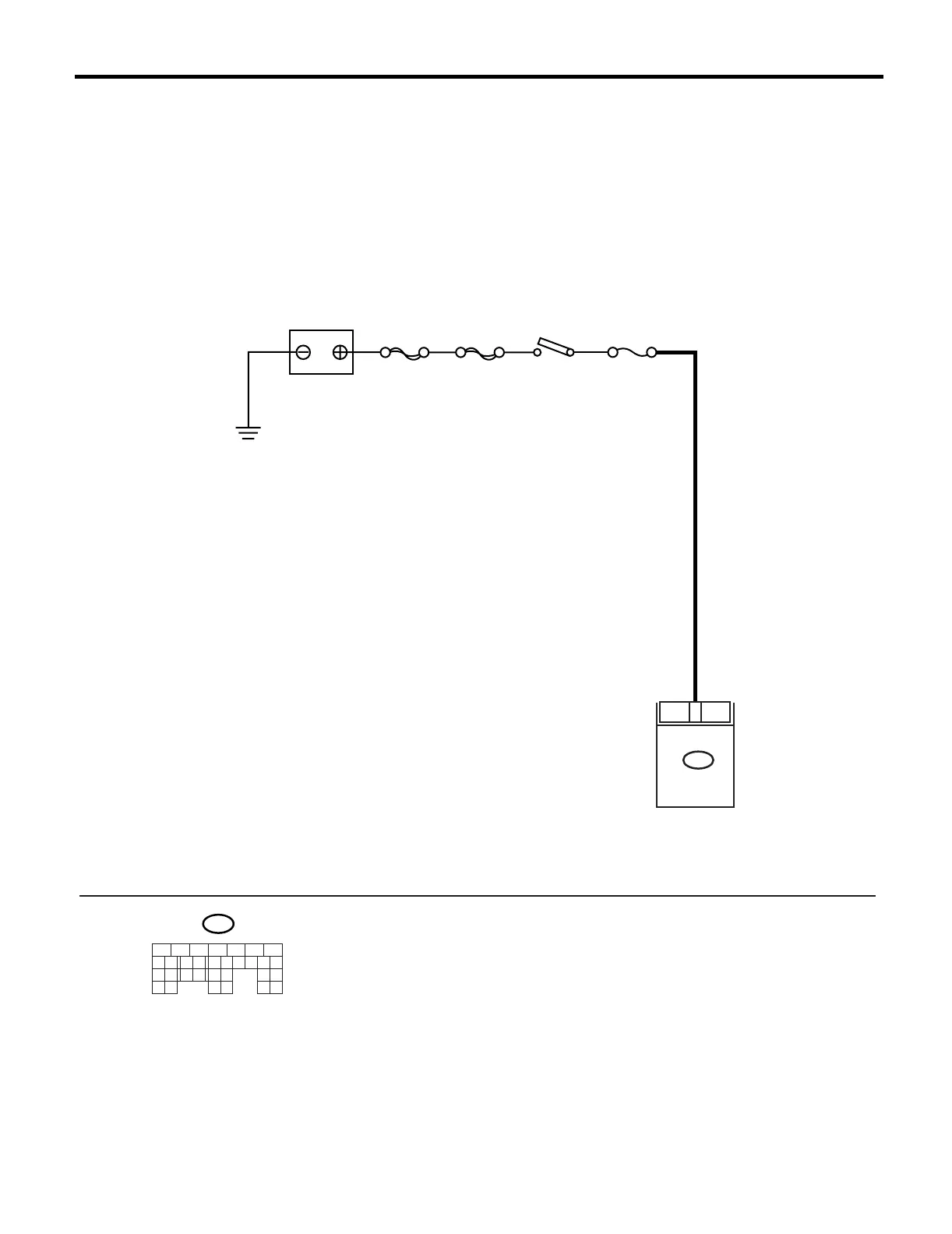

WIRING DIAGRAM:
CC-00259
B137
ECM
D14
D:
B137
9
30
2928
31
20
1918
22
21
10
12
11
14
24
2726
1716
1 2 3 4 5 6 7
13
23
15
25
8
D:
SBF-1
F/B No.11
SBF-4
BATTERY
IGNITION
SWITCH
