Subaru Forester 2004 - Page 60

AC-6
HVAC SYSTEM (AUTO A/C)(DIAGNOSTIC)

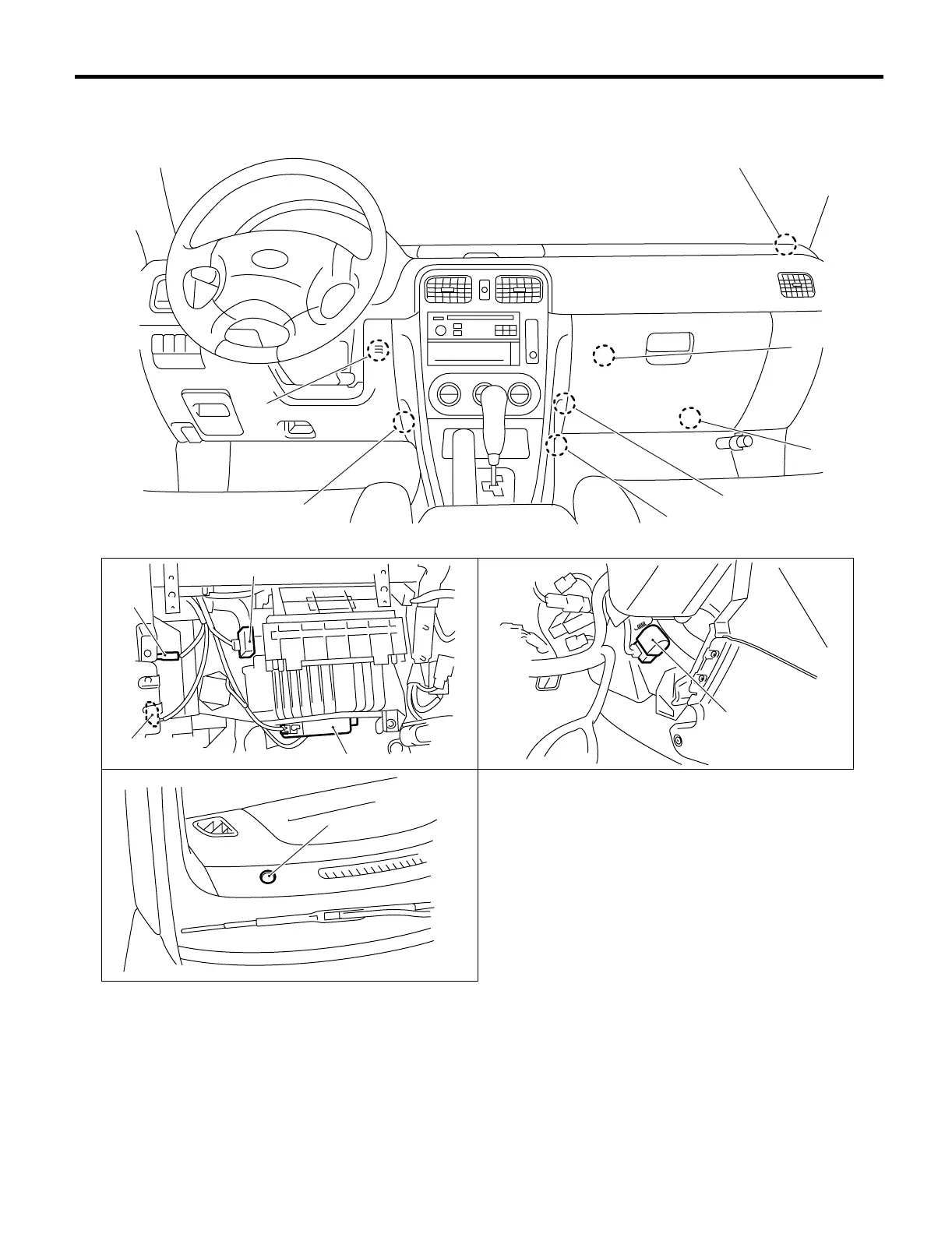

Electrical Component Location
2. PASSENGER COMPARTMENT
(1) Mode door actuator (4) Intake door actuator (7) Air mix door actuator
(2) In-vehicle sensor (5) Blower motor
(3) Sunload sensor (6) Evaporator sensor
AC-00098
(1)
(6)
(4)
(5)
(7)
(7)
(6)
(5)
(4)
(3)
(1)
(2)
(3)
