AC-7
HVAC SYSTEM (HEATER, VENTILATOR AND A/C)
General Description

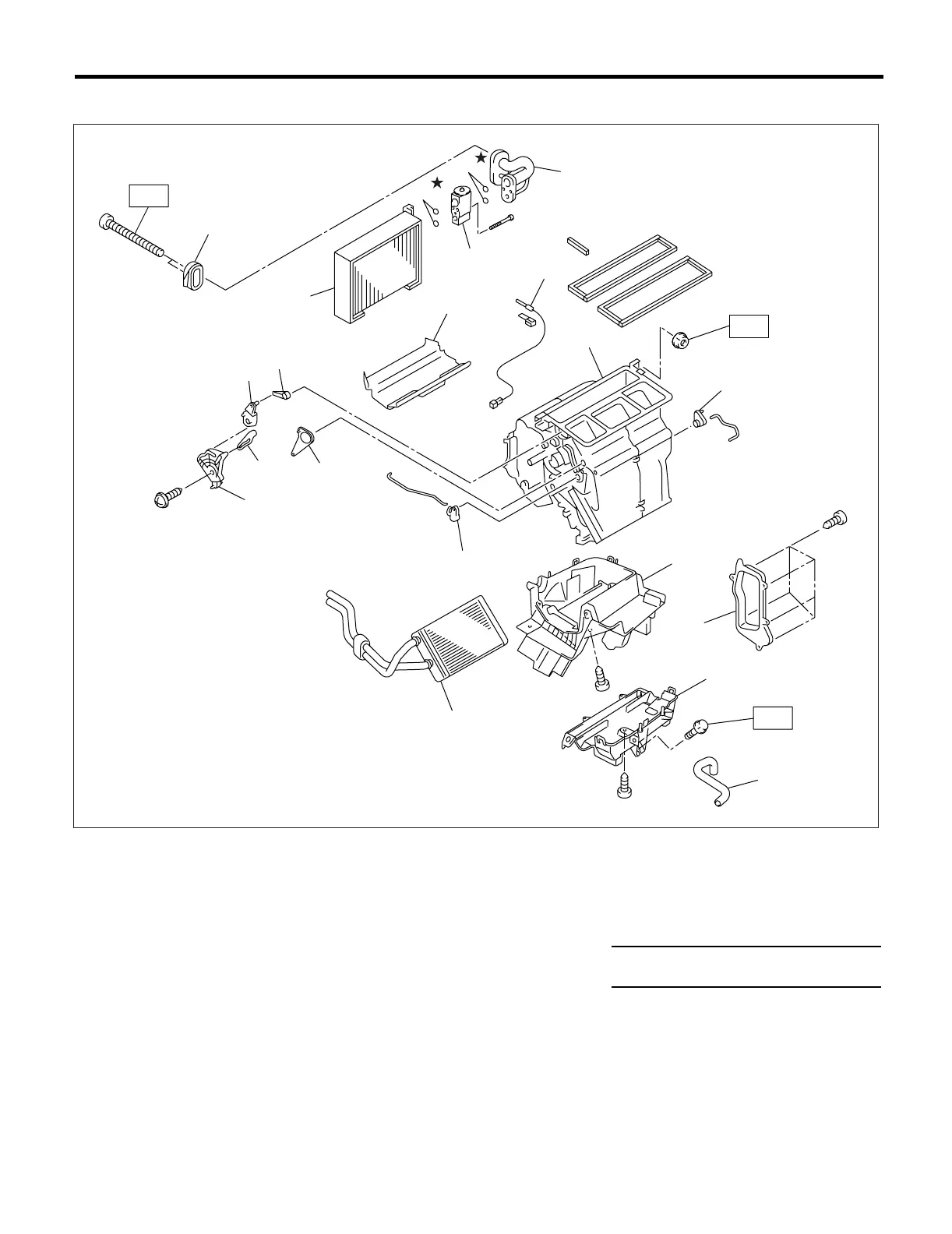

• LHD MODEL WITH MANUAL A/C
(1) Evaporator cover (9) Heater core (17) Expansion valve
(2) Mode main lever (10) Drain hose (18) Evaporator
(3) Vent door lever (11) Mix actuator lever (19) Evaporator lining
(4) Foot door lever (12) Foot door lever (20) Evaporator sensor
(5) Mode actuator link (13) Upper case
(6) Defroster lever (14) Packing Tightening torque: N·m (kgf-m, ft-lb)
(7) Foot duct (15) Cooling unit pipe T: 7.5 (0.76, 5.5)
(8) Lower case (16) O-ring
AC-00359
(1)
(8)
(7)
(9)
(15)
(11)
(2)
(3)
(4)
(5)
(6)
(14)
(18)
(16)
(17)
(16)
(19)
(20)
(12)
(13)
T
T
T
(10)
