SVAN 977A User Manual

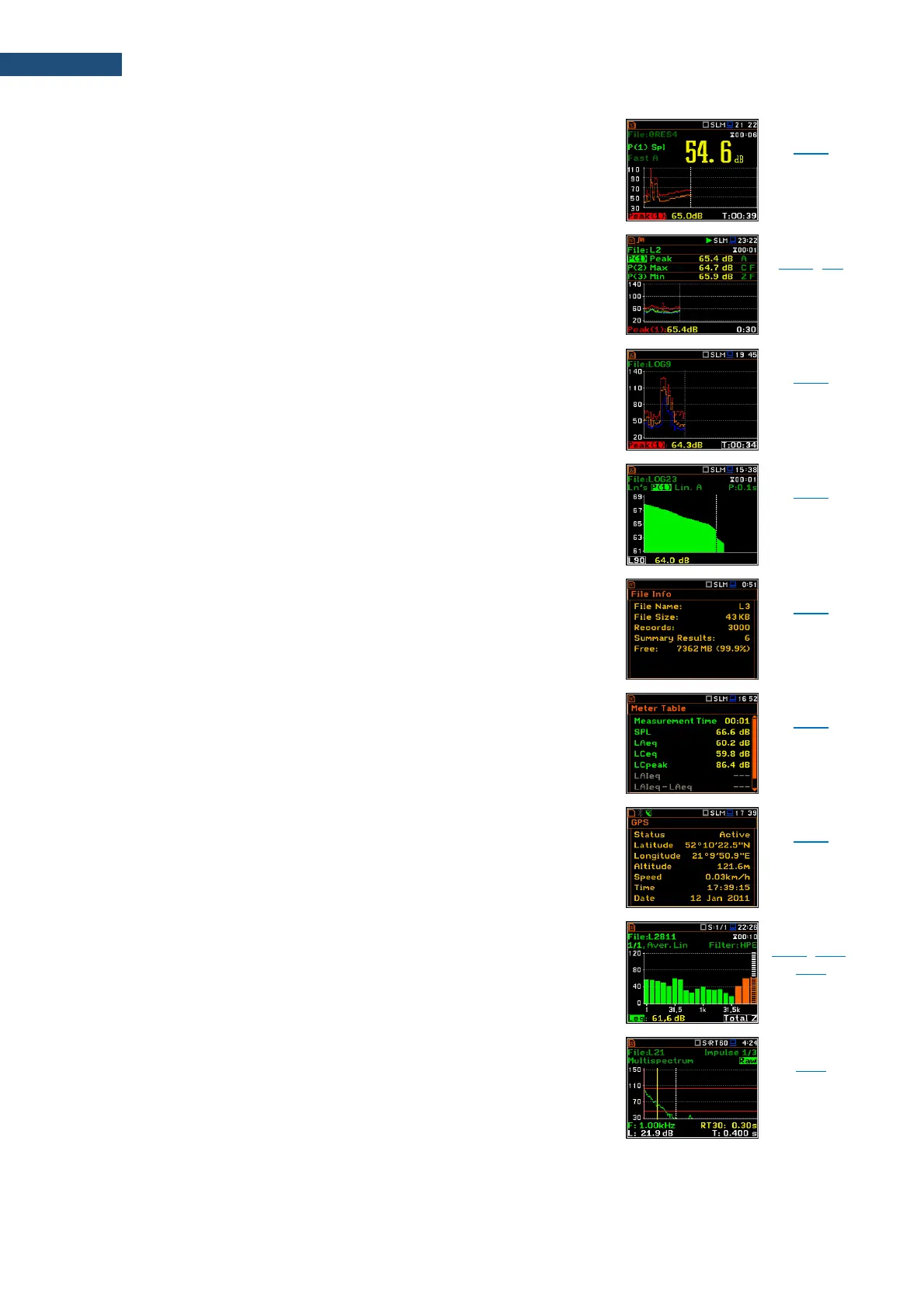

1 Prof. & Logger
view
Mode of presentation of one result in the upper part of
the screen and time history (logger) results in the lower
part of the screen.
Chapter
6.1.3
3 Prof. & Logger
view
Mode of presentation of three results in the upper part of
the screen and time history (logger) results in the lower
part of the screen.
Chapter
6.1.3, 6.1
Logger view
Mode of presentation of time-history (logger) results.
Chapter
6.1.4
Statistics view
Mode of presentation of statistics of sound results.
Chapter
6.1.6
File Info view
Presentation of information regarding file: name, size,
number of records, etc.
Chapter
6.1.9
Meter Table view
List of predefined results with assigned weighting filters
and detector type.
Chapter
6.1.7
GPS view
Presentation of GPS information: Status, Latitude,
Longitude, Altitude, Speed, Time and Date.
Chapter
6.1.8
Spectrum view
Mode of presentation of different spectra: 1/1 Octave,
1/3 Octave and FFT.
Chapter
6.1.5, 10.3,
11.3
Raw Data view
Presentation of decay curve of Leq results for 1/1 or 1/3-
octave bands, integrated within Time Step interval.
Chapter
12.5
