SVAN 977A User Manual - Appendixes

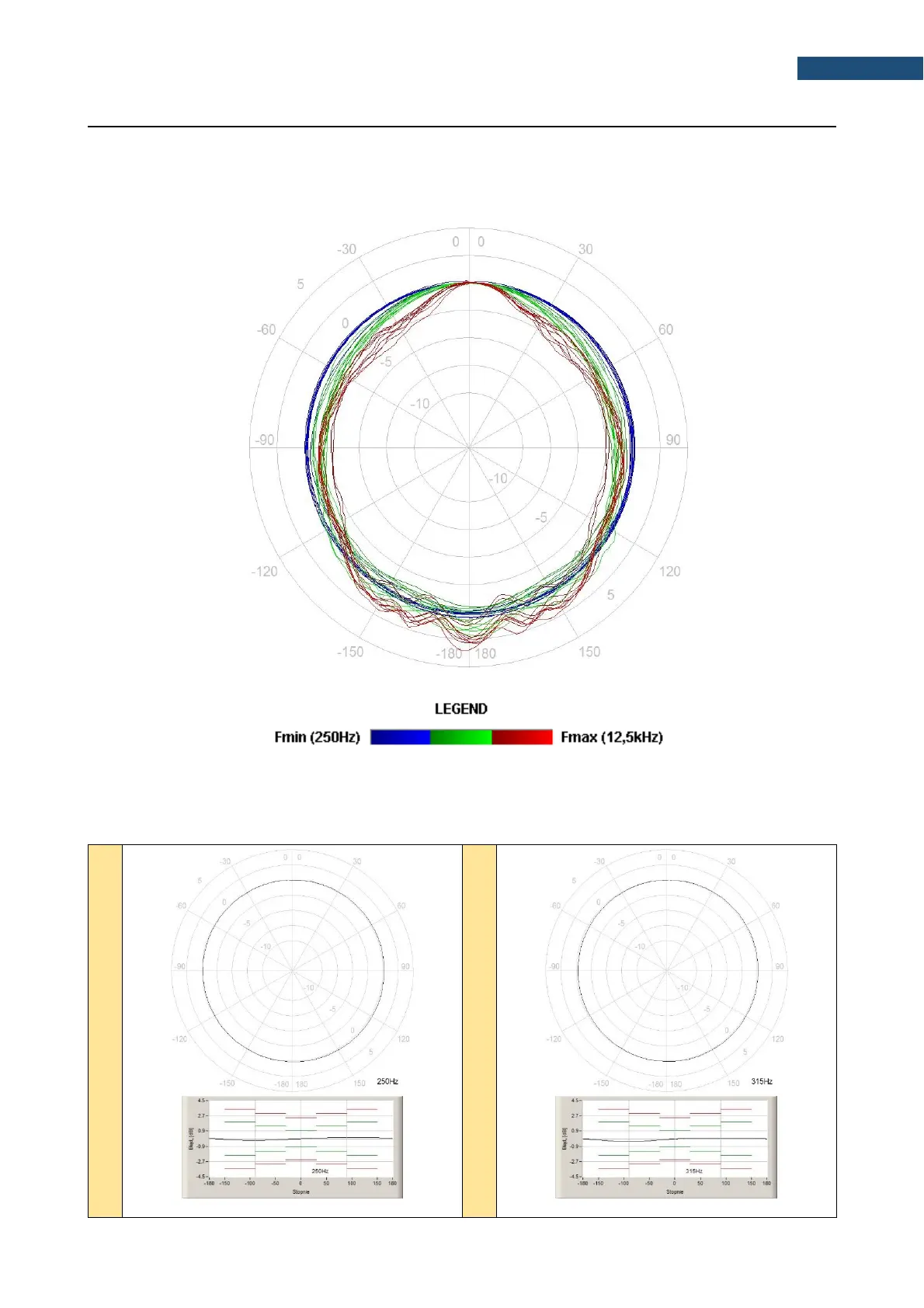

Free Field Directional characteristics of SVAN 977A with SA 277
Directional response for SLM Class SVAN 977A with microphone ACO 7052E, preamplifier SV 12L and
outdoor microphone kit SA 277 for specified frequencies:
Total directional characteristics
The round charts show the directional characteristic and the charts below shows the errors for particular
angles.
250 Hz
315 Hz
