SYNAPTICON SOMANET Circulo 7 - Mounting Remarks

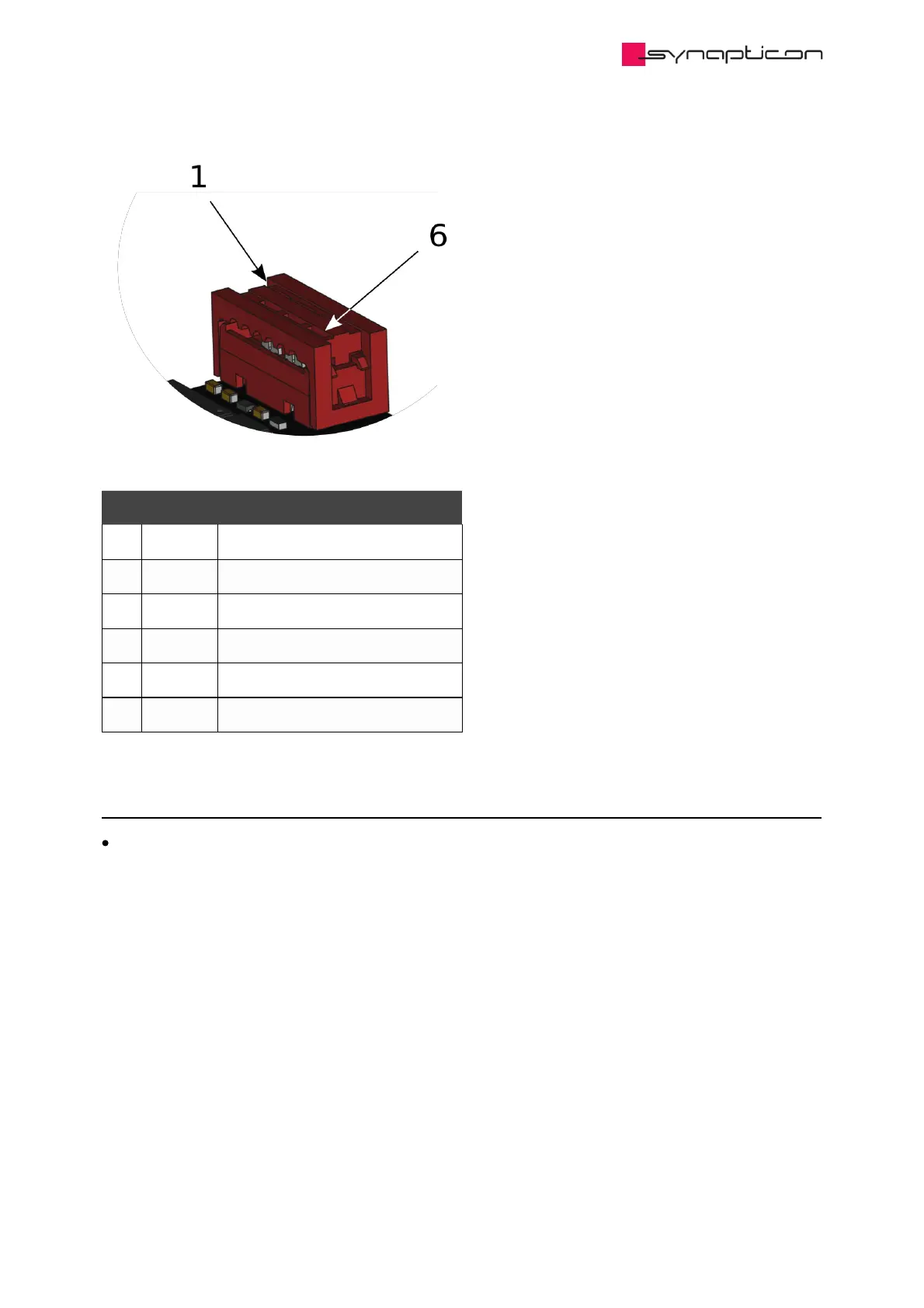

Pin Signal Direction / Comment
1 MA- Input
2 +5V Input
3 GND 5V Return
4 MA+ Input
5 SLO- Output
6 SLO+ Output
1.4.4.4 Mounting remarks
The PCB can be shrinked to a shrink tube with a diameter of 20 mm.
