1.2.2.2.1.3 Routing the motor phase cables

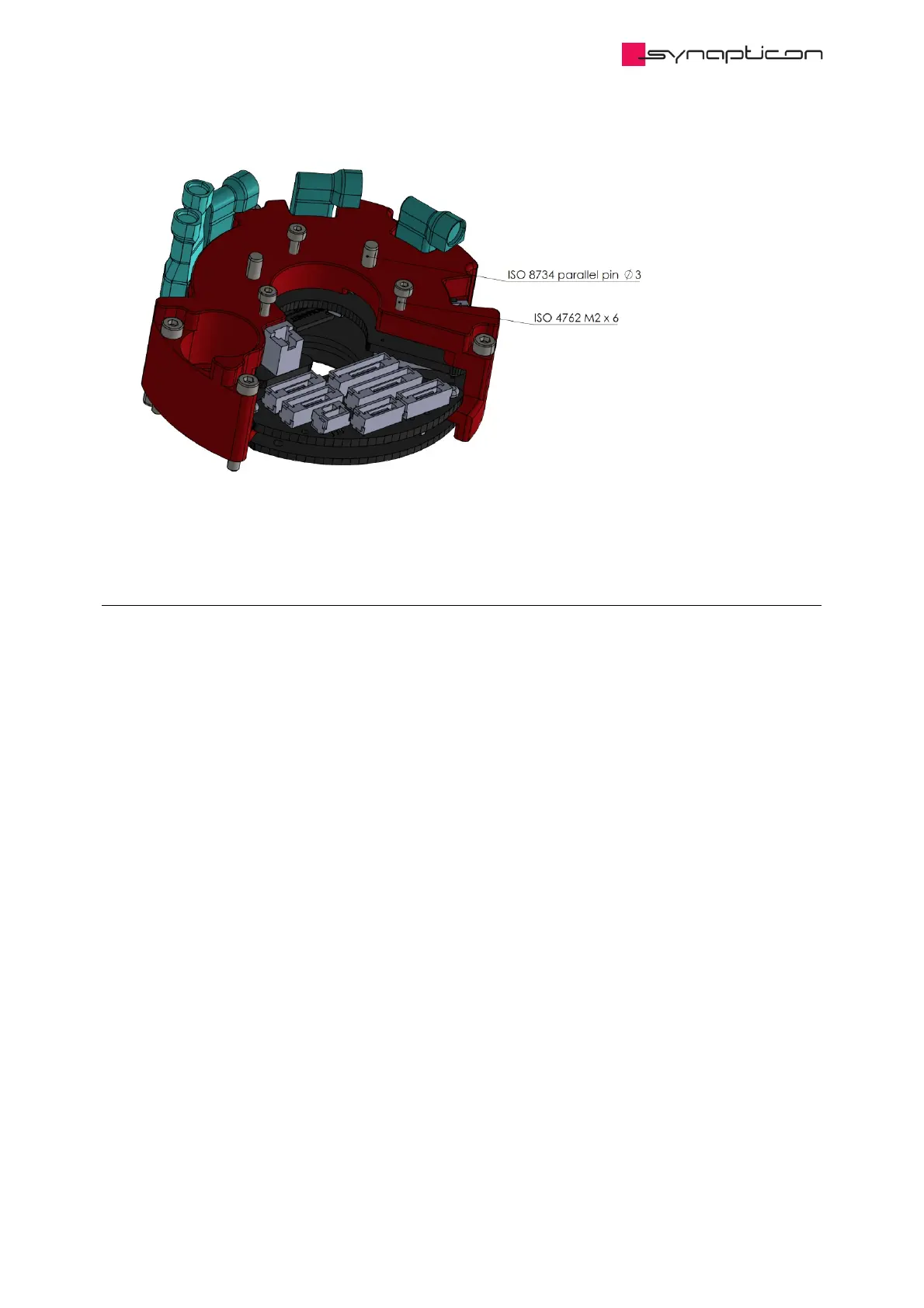

Circulo features cutouts in the heatsink designed for routing the motor phase cables. It is recommended to
use these cutouts so that the outer diameter of the actuator is minimized and to shorten the cable lengths to
avoid unnecessary cable tangle.
